172870 Series
Manufacturer: Molex
Beta
⌘K

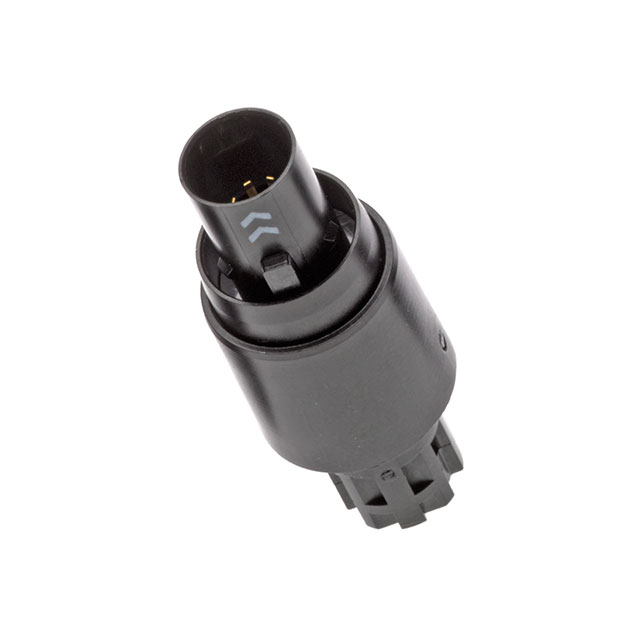

CONN PLUG MALE 8P GOLD SLDR CUP
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Applications | Backshell Material, Plating | Insert Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Primary Material | Ingress Protection | Mounting Type | Connector Type | Current Rating (Amps) | Shell Material | Voltage Rating | Features | Fastening Type | Number of Positions | Orientation | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 0.76 Ám | 30 Áin | Copper Alloy | Medical | Polyphenylsulfone (PPSU) | Polyphenylsulfone (PPSU) | -40 C | 105 ░C | Black | Plastic | IP50 - Dust Protected | Free Hanging (In-Line) | Plug Male Pins | 1.6 A | Polyphenylsulfone (PPSU) | 300 VAC | Backshell Spring Lock Strain Relief | Latch Lock Push-Pull | 8 | Keyed | Gold |
