FKA2-25489 Series
Manufacturer: Qualtek
Beta
⌘K

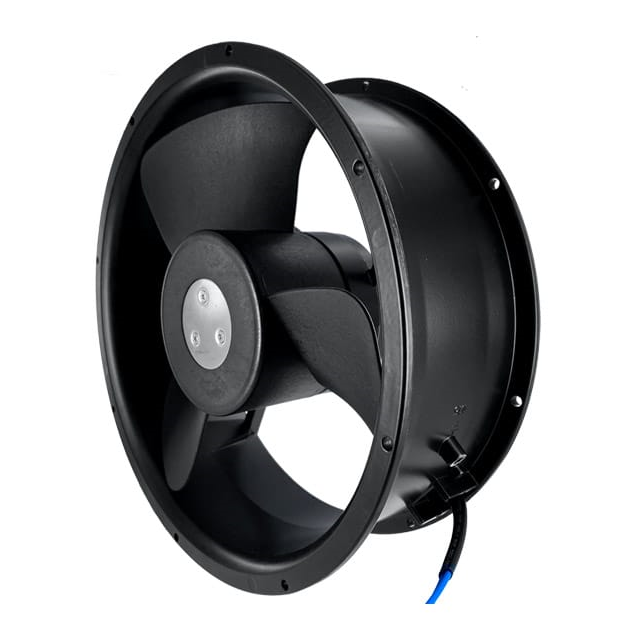

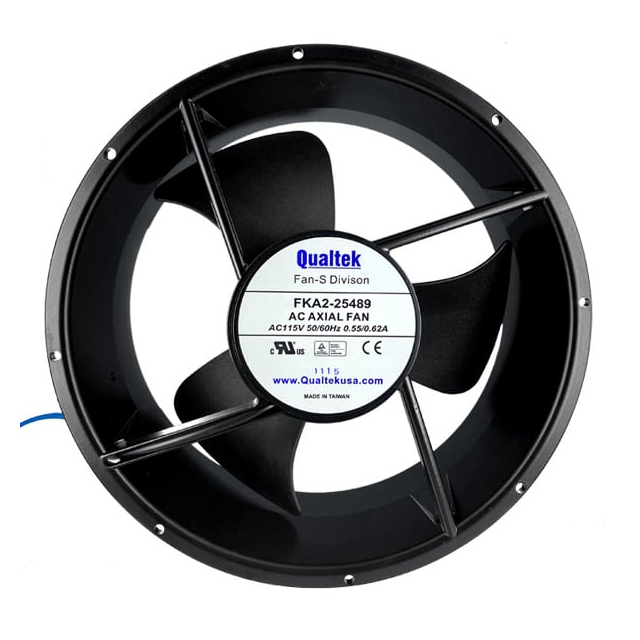

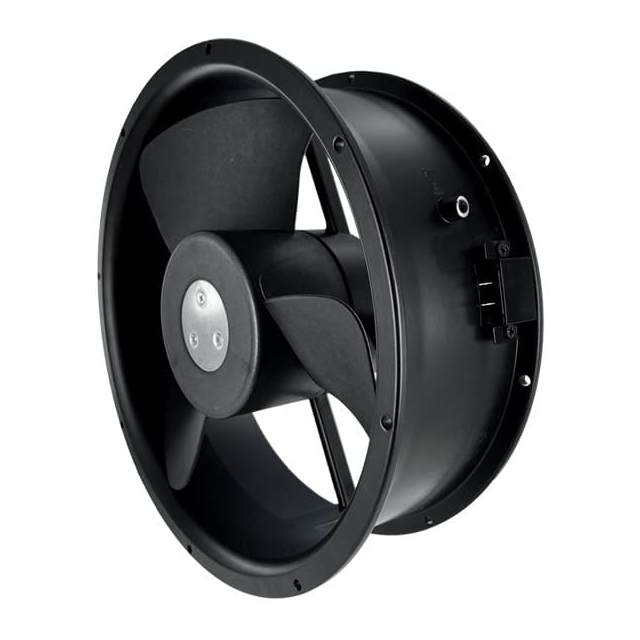

FAN AXIAL 254X89MM 115VAC TERM
| Part | Material - Frame | Air Flow | Air Flow | Material - Blade | Current Rating (Amps) | Size / Dimension | Size / Dimension [diameter] | Noise | Termination | Weight [custom] | Weight [custom] | Static Pressure | Static Pressure | Power (Watts) | Approval Agency | RPM | Operating Temperature [Max] | Operating Temperature [Min] | Fan Type | Voltage - Rated | Bearing Type | Width [y] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | Aluminum | 630 CFM | 17.64 mł/min | Plastic | 0.62 A | Round | 10 in | 62 dB(A) | 2 | 2 kg | 4.4 lbs | 68.7 Pa | 0.276 in H2O | 67.8 W | CE cURus TUV | 2000 RPM | 70 °C | -10 °C | Tubeaxial | 115 VAC | Ball | 89 mm | |
 Qualtek | Aluminum | 630 CFM | 17.64 mł/min | Plastic | 0.62 A | Round | 10 in | 62 dB(A) | 2 kg | 4.4 lbs | 68.7 Pa | 0.276 in H2O | 67.8 W | CE cURus TUV | 2000 RPM | 70 °C | -10 °C | Tubeaxial | 115 VAC | Ball | 89 mm | 2 Wire Leads | |
 Qualtek | Aluminum | 530 CFM | 14.84 mł/min | Plastic | 0.3 A | Round | 10 in | 62 dB(A) | 2 kg | 4.4 lbs | 68.7 Pa | 0.276 in H2O | CE cURus TUV | 2000 RPM | 70 °C | -10 °C | Tubeaxial | 230 VAC | Ball | 89 mm | 2 Wire Leads |
