45452 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

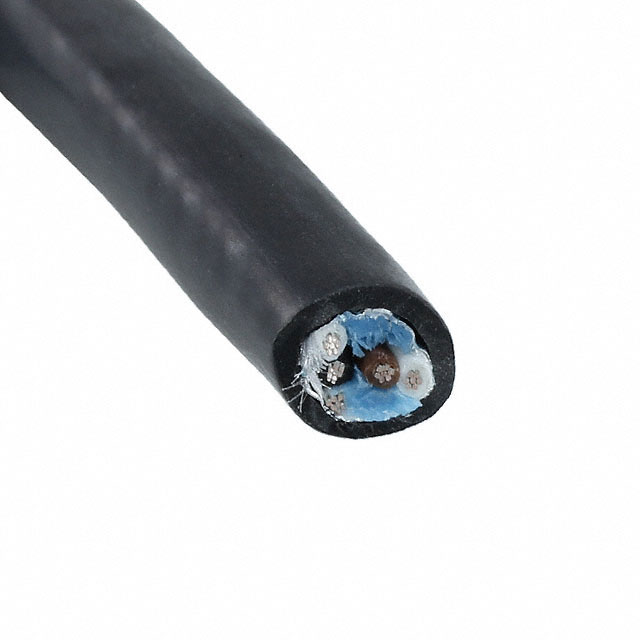

MULTI-PAIR 4COND 20AWG BLK 100'
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Length [x] | Length [x] | Conductor Material | Conductor Insulation | Conductor Insulation | Ratings | Jacket Color | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Wire Gauge | Number of Conductors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | Thermoplastic Elastomer (TPE) | 1.143 mm | 0.045 in | 125 °C | -50 °C | Foil | 28 AWG | 7 | 300 VDC | 100 ft | 30.5 m | Copper Tinned | TPE | Thermoplastic Elastomer | ISO 10993 | Black | Biological Compatibility Drain Wire Rip Cord | 0.328 in | 8.33 mm | Multi-Pair | 20 AWG | 4 |
