- Series

Manufacturer: Texmate

Catalog

5VDC POWER 2V/20V/200V VOLT METE

Part	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Supply	Type	Display Type	Mounting Type	Display Characters - Height	Panel Cutout Shape	Panel Cutout Width	Panel Cutout Length	Measuring Range (DC) Maximum	Measuring Range (DC) Minimum	Number of Characters Per Row	Measuring Type	Termination Style	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Measuring Range (Min)	Measuring Range (Max)	Voltage - Supply (Range 1 Maximum)	Voltage - Supply (Range 2 Minimum)	Voltage - Supply (Range 1 Minimum)	Voltage - Supply (Range 2 Maximum)	Voltage - Supply Type	Voltage - Supply	Measuring Range (Voltage) Maximum

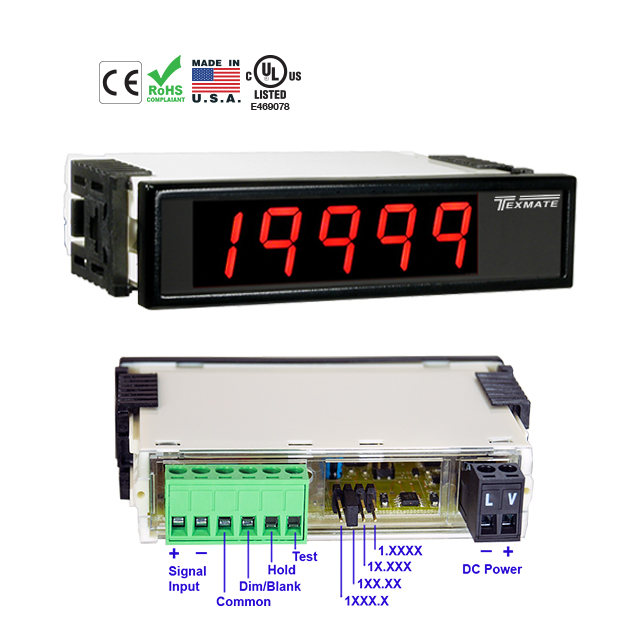

Texmate BN-45	60 °C	0 °C	5 VDC	Voltmeter	LED - Red Characters	Panel Mount	0.56 in	Rectangular	22.2 mm	92 mm	200 VDC	-200 VDC	4.5 characters	Voltage	Screw Terminal
Texmate BN-45I	60 °C	0 °C		Voltmeter	LED - Red Characters	Panel Mount	0.56 in	Rectangular	22.2 mm	92 mm	200 VDC	-200 VDC	4.5 characters	Voltage	Screw Terminal	9 VDC	36 VDC

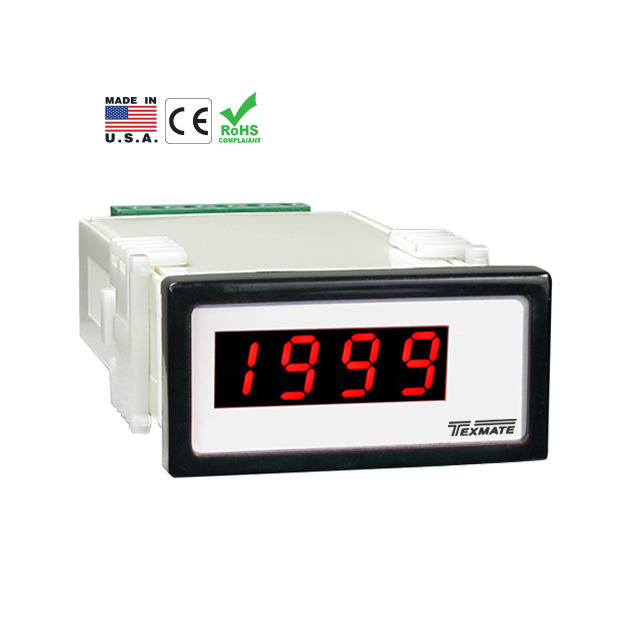

Texmate MU-35CL	50 °C	0 °C		Ammeter	LED - Red Characters	Panel Mount	0.3 in	Rectangular	24 mm	48 mm			3.5 characters	Current	Screw Terminal			0.004 mA	0.02 mA	24 VDC	5 V	12 VAC	36 V

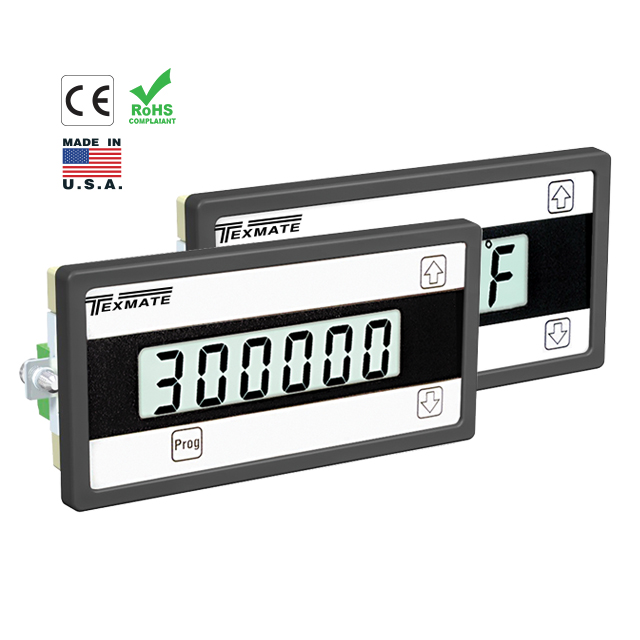

Texmate SD-50X	50 °C	-10 °C		Ammeter	LCD - Black Characters	Panel Mount	0.5 in	Rectangular	48 mm	96 mm			5 characters	Current	Screw Terminal			0.004 mA	0.02 mA					Loop Power	Loop Power
Texmate MU-35	50 °C	0 °C		Voltmeter	LED - Red Characters	Panel Mount	0.315 in	Rectangular	24 mm	48 mm			3.5 characters	Voltage	Screw Terminal					24 VDC	5 V	12 VAC	36 V			2 VDC 20 VDC 200 V
