6609037 Series

Catalog

LINE FILTER 250VAC 3A CHASSIS

Part	Voltage - Rated AC	Termination Style	Mounting Type	Filter Type	Current	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Applications	Frequency - Operating [Max]	Frequency - Operating [Min]	Configuration	Inductance
TE Connectivity Corcom Filters 6609037-1	250 V	Quick Connect	Chassis Mount	Single Phase	3 A	40 °C	-10 °C	CSA UR VDE	General Purpose	60 Hz	50 Hz	Two Stage
TE Connectivity Corcom Filters 1-6609037-1	250 V	Quick Connect	Chassis Mount	Single Phase	3 A	40 °C	-10 °C	CSA UR VDE	General Purpose	60 Hz	50 Hz	Two Stage

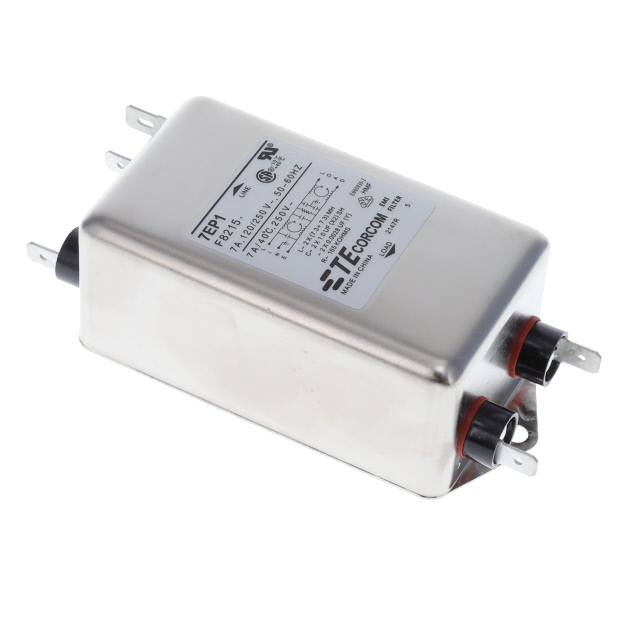

TE Connectivity Corcom Filters 2-6609037-4	250 V	Quick Connect	Chassis Mount	Single Phase	7 A	40 °C	-10 °C	CSA UR VDE	General Purpose	60 Hz	50 Hz	Two Stage	14.6 mH
TE Connectivity Corcom Filters 1-6609037-2	250 V	Quick Connect	Chassis Mount	Single Phase	6 A	40 °C	-10 °C	CSA UR VDE	General Purpose	60 Hz	50 Hz	Two Stage
TE Connectivity Corcom Filters 1-6609037-4	250 V	Quick Connect	Chassis Mount	Single Phase	15 A	40 °C	-10 °C	CSA UR VDE	General Purpose	60 Hz	50 Hz	Two Stage
TE Connectivity Corcom Filters 2-6609037-7	250 V	Wire Leads	Chassis Mount	Single Phase	12 A	40 °C	-10 °C	CSA UR VDE	General Purpose	60 Hz	50 Hz	Two Stage	7.88 mH
