2029172 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

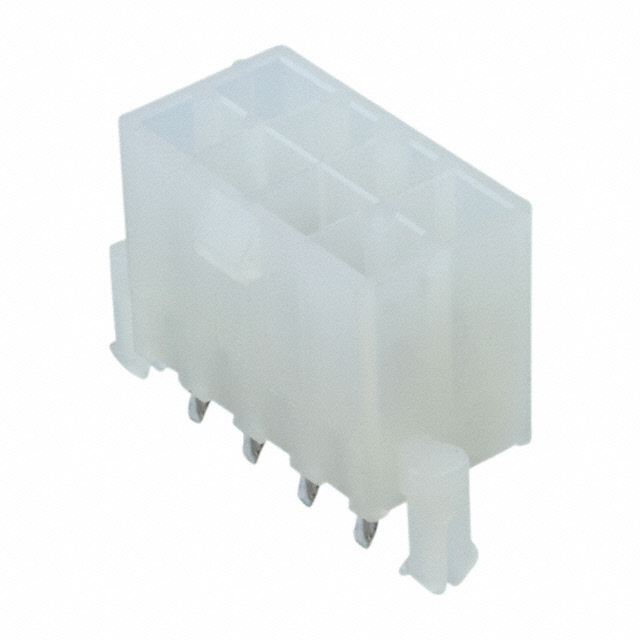

CONN HEADER VERT 8POS 4.2MM
| Part | Contact Shape | Fastening Type | Connector Type | Contact Type | Number of Rows | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Post | Contact Length - Post | Voltage Rating | Number of Positions | Style | Pitch - Mating | Pitch - Mating | Termination | Applications | Number of Positions Loaded | Row Spacing - Mating | Row Spacing - Mating | Current Rating (Amps) | Material Flammability Rating | Contact Finish - Post | Insulation Material | Insulation Height | Insulation Height | Mounting Type | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Square | Locking Ramp | Header | Male Pin | 2 | Brass | -40 °C | 105 ░C | 3.5 mm | 0.138 in | 600 VAC | 8 | Board to Cable/Wire | 4.2 mm | 0.165 in | Solder | General Purpose Industrial Lighting | All | 4.2 mm | 0.165 in | 9 A | UL94 V-2 | Tin | Nylon Polyamide (PA) | 12.8 mm | 0.504 in | Through Hole | Shrouded - 4 Wall |
