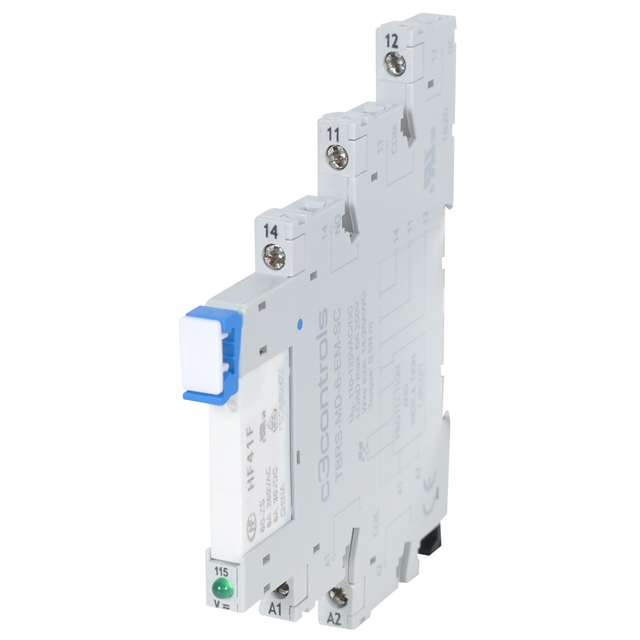

TBR-M Series
Manufacturer: c3controls
Beta
⌘K
RELAY GEN PURP SPDT 6A 110-125V
| Part | Contact Rating (Current) | Coil Voltage [Min] | Coil Voltage [Max] | Relay Type | Contact Form | Contact Material | Coil Type | Operating Temperature [Max] | Operating Temperature [Min] | Operate Time | Switching Voltage [Max] | Termination Style | Release Time | Mounting Type | Coil Voltage | Must Operate Voltage | Must Release Voltage | Coil Voltage | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 c3controls | 6 A | 110 VAC | 125 VAC | General Purpose | SPDT (1 Form C) | Silver Nickel (AgNi) | Non Latching | 55 °C | -40 C | 8 ms | 30 VDC 250 VAC | Screw Terminal | 4 ms | DIN Rail | |||||
c3controls | 6 A | 220 VAC | 240 VAC | General Purpose | SPDT (1 Form C) | Silver Nickel (AgNi) | Non Latching | 55 °C | -40 C | 8 ms | 30 VDC 250 VAC | Screw Terminal | 4 ms | DIN Rail | |||||
c3controls | 6 A | General Purpose | SPDT (1 Form C) | Silver Nickel (AgNi) | Non Latching | 55 °C | -40 C | 8 ms | 30 VDC 250 VAC | Screw Terminal | 4 ms | DIN Rail | 24 VAC | 21.6 VAC | 2.4 VAC/DC | ||||
c3controls | 6 A | General Purpose | SPDT (1 Form C) | Silver Nickel (AgNi) | Non Latching | 55 °C | -40 C | 8 ms | 30 VDC 250 VAC | Screw Terminal | 4 ms | DIN Rail | 10.8 VAC/DC | 1.2 VAC | 12 VAC | 12 VDC |
