NSG1001MX Series

Middle power SPDT RF switch, 8.5GHz, 1.6V

Catalog

Middle power SPDT RF switch, 8.5GHz, 1.6V

Part	Frequency Range [Min]	Frequency Range [Max]	Package / Case	Supplier Device Package	RF Type	Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Test Frequency	Circuit	Insertion Loss	Grade	Qualification
ON Semiconductor NSG1001MXTAG	100 MHz	8.5 GHz	6-PowerXFDFN	6-DFN (1x1)	802.11a/b/g/n/ac/ax Bluetooth LTE WLAN	20 dB	125 °C	-40 °C	Surface Mount Wettable Flank	8.5 GHz	SPDT	0.65 dB

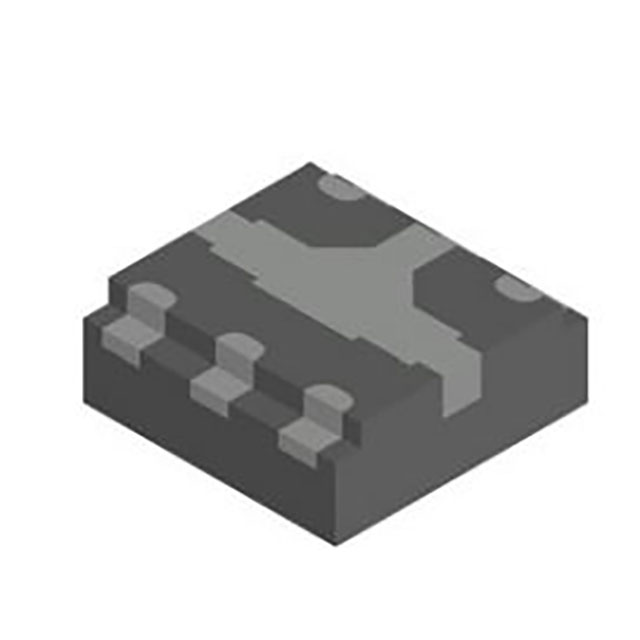

ON Semiconductor NSVG1001MXTAG	100 MHz	8.5 GHz	6-PowerXFDFN	6-DFN (1x1)	802.11a/b/g/n/ac/ax Bluetooth LTE WLAN	20 dB	125 °C	-40 °C	Surface Mount Wettable Flank	8.5 GHz	SPDT	0.65 dB	Automotive	AEC-Q100

Catalog

Middle power SPDT RF switch, 8.5GHz, 1.6V

Key Features

• Low insertion loss up to 8.5GHz

• Capable of 1.6 V Operation

Description

This device is single pole dual throw (SPDT) type RF antennaswitch MMIC. It has low insertion loss and high isolation. This isdesigned for wireless communication applications such as WLAN.It adopts a small surface mount package and it is also suitable forportable devices such as smart phones.
