0273-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN RECEPTACLE PIN .078"

Part	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall [x]	Length - Overall [x]	Contact Finish Thickness	Contact Finish Thickness	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Contact Finish	Tail Type	Contact Material	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Min] [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Socket Depth [z]	Socket Depth [z]	Accepts Square Pin Size	Accepts Square Pin Size	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Termination
Mill-Max Manufacturing Corp. 0273-0-15-01-16-14-10-0	-55 C	125 °C	5.33 mm	0.21 in	0.25 Ám	10 Áin	0.051 in	1.3 mm	Gold	No Tail	Beryllium Copper	0.86 mm	0.034 "	0.022 "	0.56 mm	0.098 in	2.49 mm	0.21 in	5.33 mm	0.025 in	0.64 mm	0.078 in	1.98 mm	Press-Fit
Mill-Max Manufacturing Corp. 0273-0-15-15-16-14-10-0	-55 C	125 °C	5.33 mm	0.21 in	0.25 Ám	10 Áin	0.051 in	1.3 mm	Gold	No Tail	Beryllium Copper	0.86 mm	0.034 "	0.022 "	0.56 mm	0.098 in	2.49 mm	0.21 in	5.33 mm	0.025 in	0.64 mm	0.078 in	1.98 mm	Press-Fit
Mill-Max Manufacturing Corp. 0273-0-15-80-16-27-10-0	-55 C	125 °C	5.33 mm	0.21 in	0.76 Ám	30 Áin	0.051 in	1.3 mm	Gold	No Tail	Beryllium Copper	0.86 mm	0.034 "	0.022 "	0.56 mm	0.098 in	2.49 mm	0.21 in	5.33 mm	0.025 in	0.64 mm	0.078 in	1.98 mm	Press-Fit

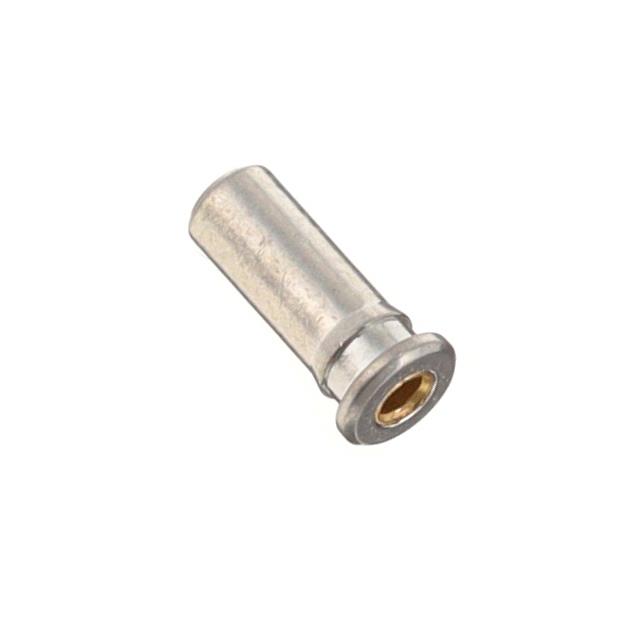

Mill-Max Manufacturing Corp. 0273-0-15-01-16-27-10-0	-55 C	125 °C	5.33 mm	0.21 in	0.76 Ám	30 Áin	0.051 in	1.3 mm	Gold	No Tail	Beryllium Copper	0.86 mm	0.034 "	0.022 "	0.56 mm	0.098 in	2.49 mm	0.21 in	5.33 mm	0.025 in	0.64 mm	0.078 in	1.98 mm	Press-Fit
Mill-Max Manufacturing Corp. 0273-0-15-80-16-14-10-0	-55 C	125 °C	5.33 mm	0.21 in	0.25 Ám	10 Áin	0.051 in	1.3 mm	Gold	No Tail	Beryllium Copper	0.86 mm	0.034 "	0.022 "	0.56 mm	0.098 in	2.49 mm	0.21 in	5.33 mm	0.025 in	0.64 mm	0.078 in	1.98 mm	Press-Fit
