146090 Series

Catalog

CONN HEADER VERT 80POS 2.54MM

Part	Connector Type	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Shrouding	Contact Length - Mating [x]	Contact Length - Mating	Number of Positions Loaded	Insulation Material	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Number of Rows	Current Rating (Amps)	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Contact Shape	Contact Material	Voltage Rating	Fastening Type	Contact Finish - Post	Termination	Insulation Color	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]

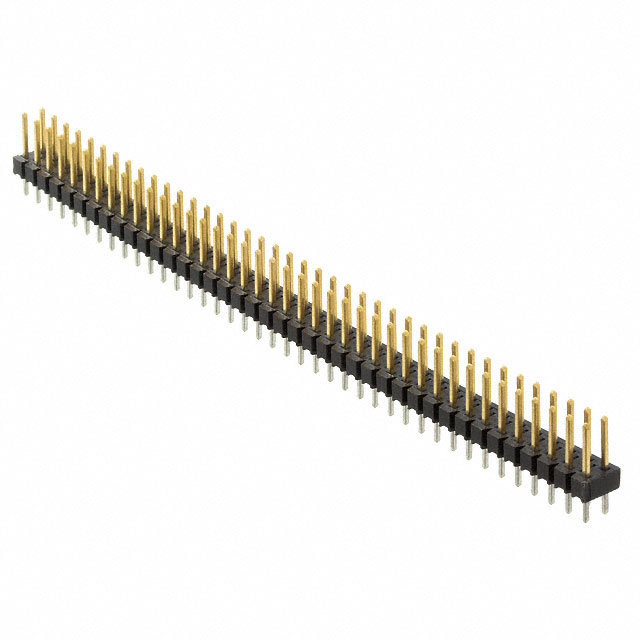

TE Connectivity Raychem Cable Protection 4-146090-0	Breakaway Header	Gold	2.54 mm	0.1 in	80	Unshrouded	0.23 in	5.84 mm	All	Thermoplastic	0.1 in	2.54 mm	0.09 in	2.29 mm	2	3 A	Board to Board Cable	0.127 µm	5 µin	0.44 in	11.18 mm	Square	Copper Alloy	30 VAC	Push-Pull	Tin-Lead	Solder	Black	UL94 V-0	-65 ░C	105 ░C	Through Hole	2.54 µm	100 µin	Male Pin	0.12 in	3.05 mm
TE Connectivity Raychem Cable Protection 146090-4	Breakaway Header	Gold	2.54 mm	0.1 in	8	Unshrouded	0.23 in	5.84 mm	All	Thermoplastic	0.1 in	2.54 mm	0.09 in	2.29 mm	2	3 A	Board to Board Cable	0.127 µm	5 µin	0.44 in	11.18 mm	Square	Copper Alloy	30 VAC	Push-Pull	Tin-Lead	Solder	Black	UL94 V-0	-65 ░C	105 ░C	Through Hole	2.54 µm	100 µin	Male Pin	0.12 in	3.05 mm
