CHM-6-65 Series

Catalog

LED COB CHM6 GEN2 WHT RECT 6500K

Part	Temperature - Test	Size / Dimension [y]	Size / Dimension [x]	Color	Current - Max [Max]	Lens Type	Lumens/Watt @ Current - Test	Type	Light Emitting Surface (LES) [diameter]	Height [z]	Luminous Flux @ Current/Temperature	Configuration	Viewing Angle	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	CCT (K)	Current - Test

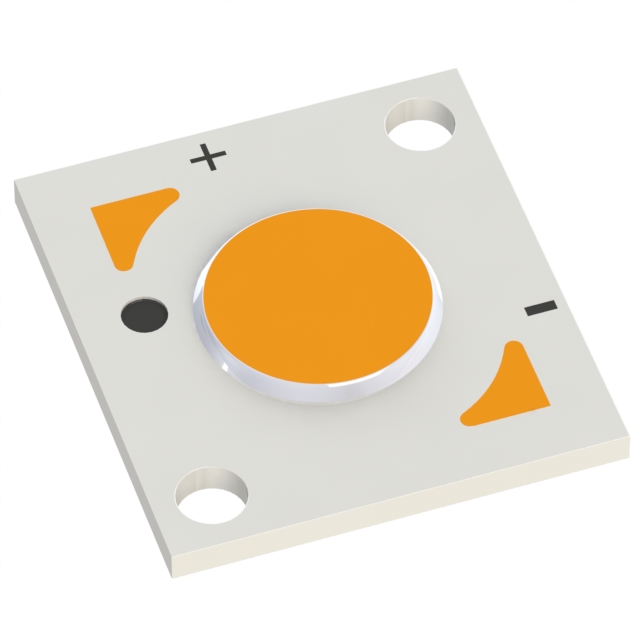

Luminus Devices Inc. CHM-6-65-80-18-AA00-F2-3	85 °C	13 mm	12 mm	Cool White	320 mA	Flat	125 lm/W	Chip On Board (COB)	6.3 mm	1.37 mm	700 lm	Rectangle	120 °	17.5 V	80	6500 K	320 mA
Luminus Devices Inc. CHM-6-65-80-27-XH00-F2-5	85 °C	13.5 mm	13.5 mm	Cool White	720 mA	Flat	102 lm/W	Chip On Board (COB)	6.3 mm	1.37 mm	1320 lm	Square	120 °	27 V	80	6500 K	480 mA
Luminus Devices Inc. CHM-6-65-80-9-AA00-F2-5	85 °C	13 mm	12 mm	Cool White	1.28 A	Flat	116 lm/W	Chip On Board (COB)	6.3 mm	1.37 mm	670 lm	Rectangle	120 °	9 V	80	6500 K	640 mA
Luminus Devices Inc. CHM-6-65-80-9-AA00-F2-3	85 °C	13 mm	12 mm	Cool White	1.28 A	Flat	116 lm/W	Chip On Board (COB)	6.3 mm	1.37 mm	670 lm	Rectangle	120 °	9 V	80	6500 K	640 mA

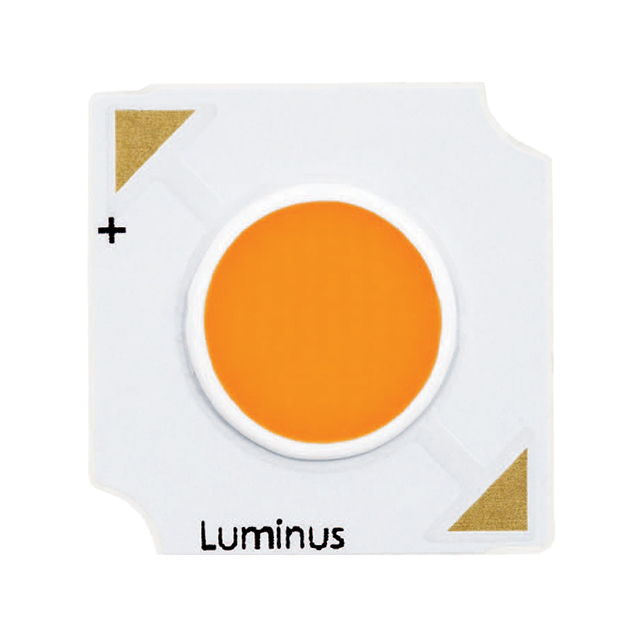

Luminus Devices Inc. CHM-6-65-70-27-XH20-F3-5	85 °C	13.5 mm	13.5 mm	Cool White	720 mA	Flat	142 lm/W	Chip On Board (COB)	6.3 mm	1.37 mm	1880 lm	Square	120 °	27.4 V	70	6500 K	480 mA
Luminus Devices Inc. CHM-6-65-80-18-AA10-F3-5	85 °C	13 mm	12 mm	Cool White	640 mA	Flat	125 lm/W	Chip On Board (COB)	6.3 mm	1.37 mm	700 lm	Rectangle	120 °	17.5 V	80	6500 K	320 mA
Luminus Devices Inc. CHM-6-65-70-27-XH20-F3-3	85 °C	13.5 mm	13.5 mm	Cool White	720 mA	Flat	142 lm/W	Chip On Board (COB)	6.3 mm	1.37 mm	1880 lm	Square	120 °	27.4 V	70	6500 K	480 mA
