PTC36 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 36POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Style	Material Flammability Rating	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Fastening Type	Insulation Height	Insulation Height	Shrouding	Contact Type	Overall Contact Length	Overall Contact Length	Connector Type	Mounting Type	Number of Positions	Insulation Material	Termination	Number of Positions Loaded	Contact Shape	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Insulation Color	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post [custom]	Contact Length - Post [custom]	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height [z]	Insulation Height [z]	Number of Rows [custom]	Overall Contact Length [x]	Overall Contact Length [x]
Sullins Connector Solutions PTC36SAFN	2.54 µm	100 µin	Copper Alloy	Board to Board Cable	UL94 V-0	Tin	0.1 "	2.54 mm	Push-Pull	0.1 in	2.54 mm	Unshrouded	Male Pin	0.95 in	24.13 mm	Header	Through Hole	36	Polyester Thermoplastic	Solder	All	Square	3 A	0.23 in	5.84 mm	Black	1	100 çin	2.54 çm	15.75 mm	0.62 "
Sullins Connector Solutions PTC36SFEN	2.54 µm	100 µin	Copper Alloy	Board to Board Cable	UL94 V-0	Tin	0.1 "	2.54 mm	Push-Pull	0.1 in	2.54 mm	Unshrouded	Male Pin	0.938 in	23.83 mm	Header	Through Hole	36	Polyester Thermoplastic	Solder	All	Square	3 A	0.318 in	8.08 mm	Black	1	100 çin	2.54 çm			0.52 in	13.21 mm
Sullins Connector Solutions PTC36SABN	2.54 µm	100 µin	Copper Alloy	Board to Board Cable	UL94 V-0	Tin	0.1 "	2.54 mm	Push-Pull	0.1 in	2.54 mm	Unshrouded	Male Pin	0.56 in	14.22 mm	Header	Through Hole	36	Polyester Thermoplastic	Solder	All	Square	3 A	0.23 in	5.84 mm	Black	1	100 çin	2.54 çm			0.23 "	5.84 mm

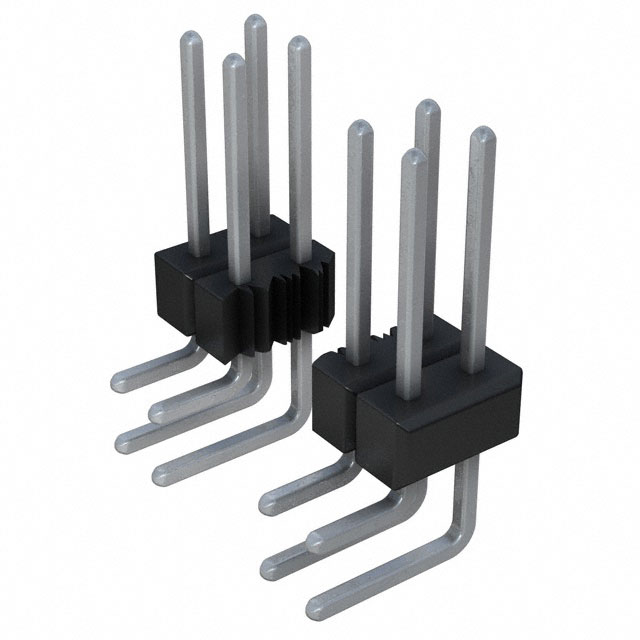

Sullins Connector Solutions PTC36DGAN	2.54 µm	100 µin	Copper Alloy	Board to Board Cable	UL94 V-0	Tin	0.1 "	2.54 mm	Push-Pull			Unshrouded	Male Pin			Header	Right Angle Through Hole	72	Polyester Thermoplastic	Solder	All	Square	3 A	0.318 in	8.08 mm	Black		100 çin	2.54 çm			0.12 in	3.05 mm	0.1 in	2.54 mm	6.1 mm	0.24 in	2
Sullins Connector Solutions PTC36SBBN	2.54 µm	100 µin	Copper Alloy	Board to Board Cable	UL94 V-0	Tin	0.1 "	2.54 mm	Push-Pull	0.14 in	3.56 mm	Unshrouded	Male Pin			Header	Right Angle Through Hole	36	Polyester Thermoplastic	Solder	All	Square	3 A	0.23 in	5.84 mm	Black	1	100 çin	2.54 çm			0.23 "	5.84 mm
Sullins Connector Solutions PTC36DADN	2.54 µm	100 µin	Copper Alloy	Board to Board Cable	UL94 V-0	Tin	0.1 "	2.54 mm	Push-Pull	0.1 in	2.54 mm	Unshrouded	Male Pin			Header	Through Hole	72	Polyester Thermoplastic	Solder	All	Square	3 A	0.23 in	5.84 mm	Black		100 çin	2.54 çm			0.42 in	10.67 mm	0.1 in	2.54 mm			2	19.05 mm	0.75 in
Sullins Connector Solutions PTC36DACN	2.54 µm	100 µin	Copper Alloy	Board to Board Cable	UL94 V-0	Tin	0.1 "	2.54 mm	Push-Pull	0.1 in	2.54 mm	Unshrouded	Male Pin	0.65 in	16.51 mm	Header	Through Hole	72	Polyester Thermoplastic	Solder	All	Square	3 A	0.23 in	5.84 mm	Black		100 çin	2.54 çm			0.32 in	8.13 mm	0.1 in	2.54 mm			2
Sullins Connector Solutions PTC36DABN	2.54 µm	100 µin	Copper Alloy	Board to Board Cable	UL94 V-0	Tin	0.1 "	2.54 mm	Push-Pull	0.1 in	2.54 mm	Unshrouded	Male Pin	0.56 in	14.22 mm	Header	Through Hole	72	Polyester Thermoplastic	Solder	All	Square	3 A	0.23 in	5.84 mm	Black		100 çin	2.54 çm			0.23 "	5.84 mm	0.1 in	2.54 mm			2
Sullins Connector Solutions PTC36DAAN	2.54 µm	100 µin	Copper Alloy	Board to Board Cable	UL94 V-0	Tin	0.1 "	2.54 mm	Push-Pull	0.1 in	2.54 mm	Unshrouded	Male Pin			Header	Through Hole	72	Polyester Thermoplastic	Solder	All	Square	3 A	0.23 in	5.84 mm	Black		100 çin	2.54 çm			0.12 in	3.05 mm	0.1 in	2.54 mm			2	11.43 mm	0.45 in
Sullins Connector Solutions PTC36SBEN	2.54 µm	100 µin	Copper Alloy	Board to Board Cable	UL94 V-0	Tin	0.1 "	2.54 mm	Push-Pull	0.14 in	3.56 mm	Unshrouded	Male Pin			Header	Right Angle Through Hole	36	Polyester Thermoplastic	Solder	All	Square	3 A	0.23 in	5.84 mm	Black	1	100 çin	2.54 çm			0.52 in	13.21 mm
