PPPN041 Series

Catalog

CONN HDR 4POS 0.079 GOLD PCB R/A

Part	Insulation Material	Contact Finish Thickness - Post	Contact Shape	Contact Material	Number of Positions Loaded	Current Rating (Amps)	Fastening Type	Number of Positions	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]	Number of Rows	Mounting Type	Connector Type	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish - Mating	Termination	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [z]	Insulation Height [z]	Voltage Rating	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height
Sullins Connector Solutions PPPN041FGGN	Polyester	Flash	Square	Phosphor Bronze	All	2 A	Push-Pull	4	Female Socket	0.122 in	3.1 mm	1	Right Angle Through Hole	Header	UL94 V-0	Flash	Gold	Solder	0.079 "	2 mm	Black	Gold	-40 C	105 ░C
Sullins Connector Solutions PPPN041BFLD	Polyester	Flash	Square	Phosphor Bronze	All	2 A	Push-Pull	4	Female Socket			1	Surface Mount	Header	UL94 V-0	Flash	Gold	Solder	0.079 "	2 mm	Black	Gold	-40 C	105 ░C	0.181 in	4.6 mm	150 VDC

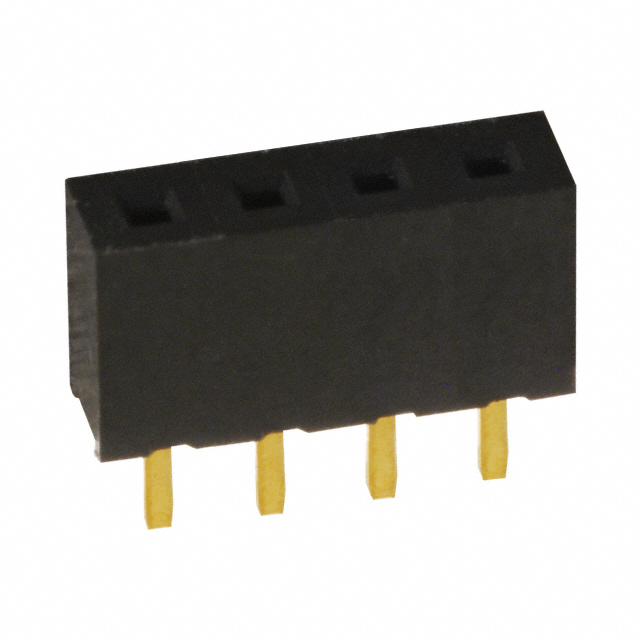

Sullins Connector Solutions PPPN041BFCN	Polyester	Flash	Square	Phosphor Bronze	All	2 A	Push-Pull	4	Female Socket			1	Through Hole	Header	UL94 V-0	Flash	Gold	Solder	0.079 "	2 mm	Black	Gold	-40 C	105 ░C				2.4 mm	0.094 in	4.4 mm	0.173 in
