XG5M Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

CONN RCPT 20P IDC 26-28AWG GOLD

Part	Row Spacing	Row Spacing	Contact Finish	Number of Positions	Contact Type	Number of Rows [custom]	Mounting Type	Connector Type	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Wire Type	Color	Wire Gauge	Features	Number of Positions [custom]
Omron Electronics Inc-EMC Div XG5M-2035-N	2.54 mm	0.1 "	Gold	20	Female Socket	2	Free Hanging (In-Line)	Receptacle	0.1 "	2.54 mm	5.9 µin	0.15 µm	IDC	Discrete	Black

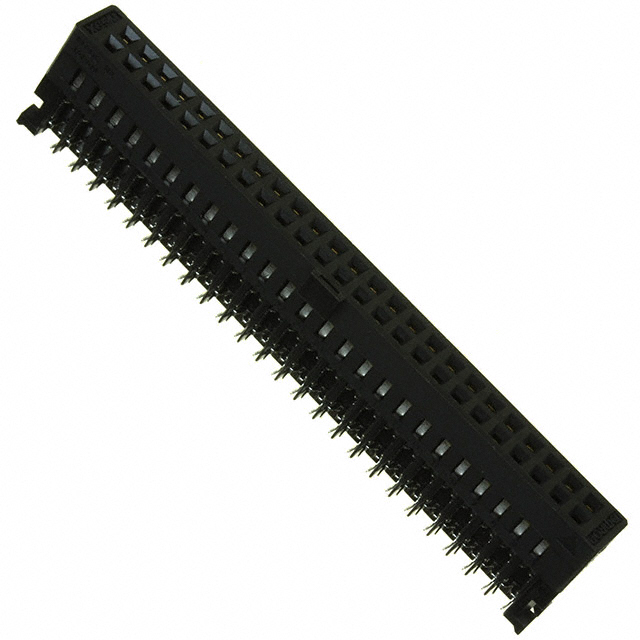

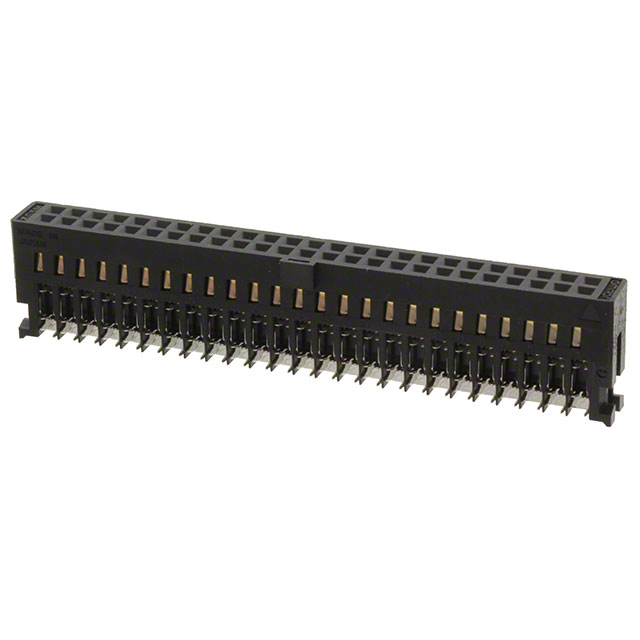

Omron Electronics Inc-EMC Div XG5M-5032-N	2.54 mm	0.1 "	Gold	50	Female Socket	2	Free Hanging (In-Line)	Receptacle	0.1 "	2.54 mm	5.9 µin	0.15 µm	IDC	Discrete	Black	24 AWG
Omron Electronics Inc-EMC Div XG5M-1635-N	2.54 mm	0.1 "	Gold	16	Female Socket	2	Free Hanging (In-Line)	Receptacle	0.1 "	2.54 mm	5.9 µin	0.15 µm	IDC	Discrete	Black

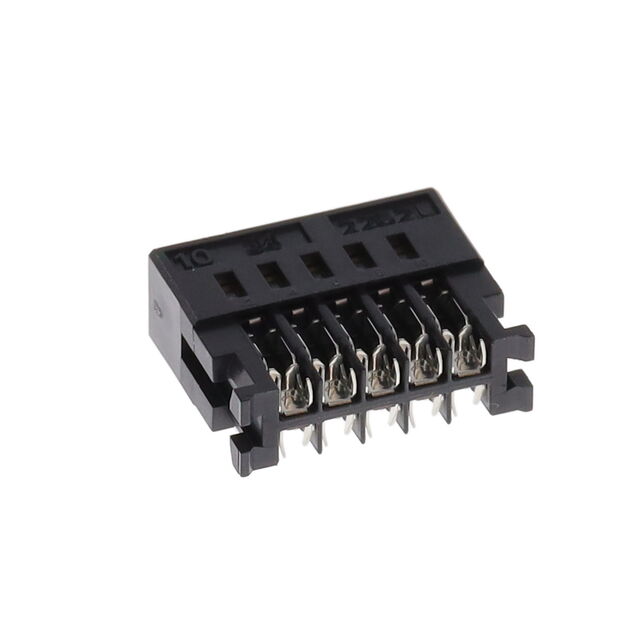

Omron Electronics Inc-EMC Div XG5M-1034-N	2.54 mm	0.1 "	Gold	10	Female Socket	2	Free Hanging (In-Line)	Socket	0.1 "	2.54 mm	5.9 µin	0.15 µm	IDC	Discrete	Black

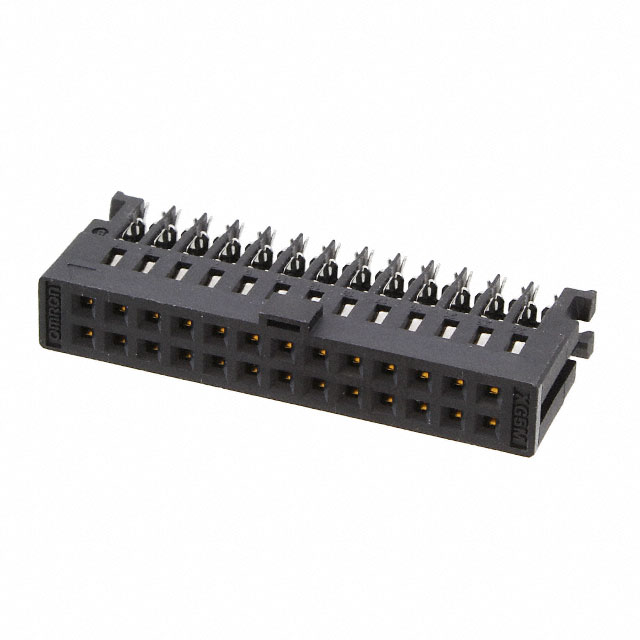

Omron Electronics Inc-EMC Div XG5M-2632-N	2.54 mm	0.1 "	Gold	26	Female Socket	2	Free Hanging (In-Line)	Receptacle	0.1 "	2.54 mm	5.9 µin	0.15 µm	IDC	Discrete	Black	24 AWG
Omron Electronics Inc-EMC Div XG5M-6033-N	2.54 mm	0.1 "	Gold	60	Female Socket	2	Free Hanging (In-Line)	Socket	0.1 "	2.54 mm	5.9 µin	0.15 µm	IDC	Discrete	Black	24 AWG	Polarizing Tab

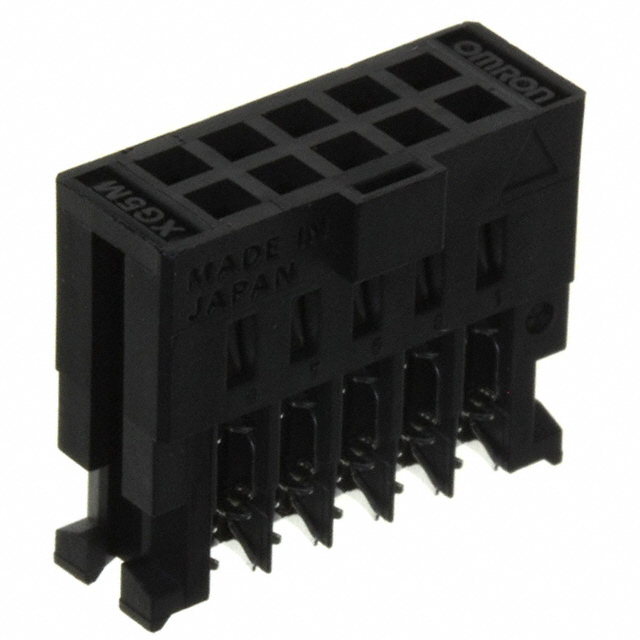

Omron Electronics Inc-EMC Div XG5M-1032-N	2.54 mm	0.1 "	Gold	10	Female Socket	2	Free Hanging (In-Line)	Receptacle	0.1 "	2.54 mm	5.9 µin	0.15 µm	IDC	Discrete	Black	24 AWG

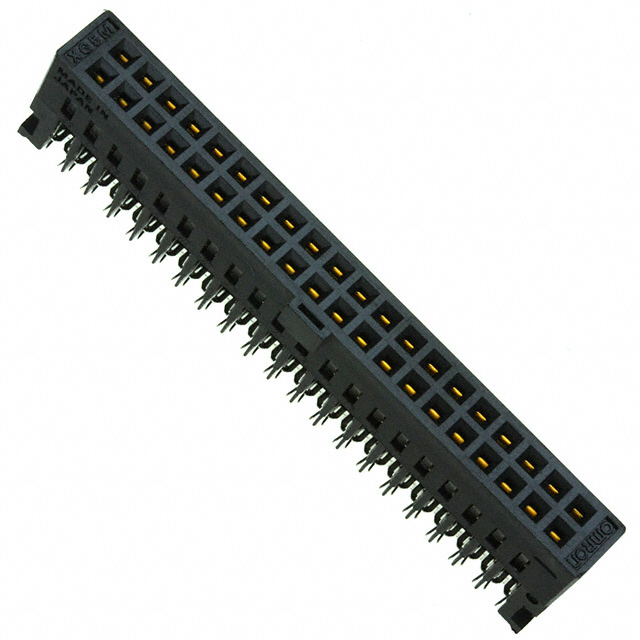

Omron Electronics Inc-EMC Div XG5M-4032-N	2.54 mm	0.1 "	Gold	40	Female Socket	2	Free Hanging (In-Line)	Receptacle	0.1 "	2.54 mm	5.9 µin	0.15 µm	IDC	Discrete	Black	24 AWG
Omron Electronics Inc-EMC Div XG5M-5033-N	2.54 mm	0.1 "	Gold	50	Female Socket	2	Free Hanging (In-Line)	Socket	0.1 "	2.54 mm	5.9 µin	0.15 µm	IDC	Discrete	Black	24 AWG	Polarizing Tab
Omron Electronics Inc-EMC Div XG5M-3435-N	2.54 mm	0.1 "	Gold		Female Socket	2	Free Hanging (In-Line)	Socket	0.1 "	2.54 mm	5.9 µin	0.15 µm	IDC	Discrete	Black		Polarizing Tab	34
