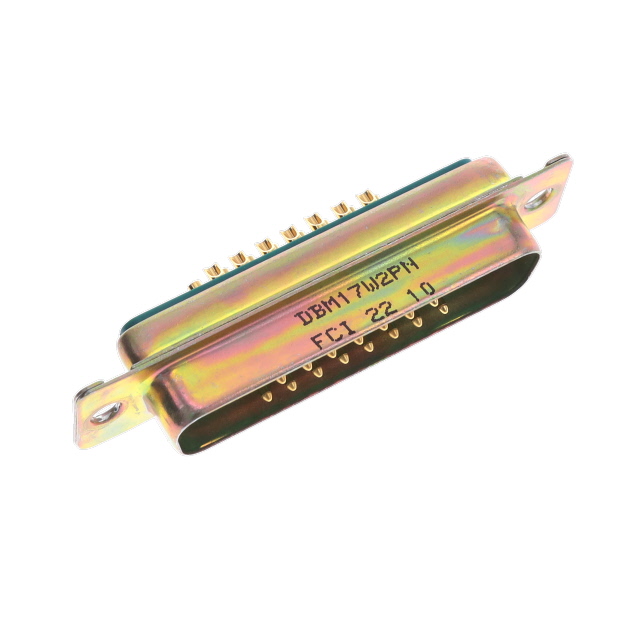

DBM17W2 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K
CONN D-SUB RCPT 17POS R/A SLDR
| Part | Shell Material, Finish | Shell Size, Connector Layout | Dielectric Material | Contact Type | Mounting Type | Flange Feature | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Connector Style | Number of Positions [custom] | Number of Positions [custom] | Voltage Rating | Connector Type | Backset Spacing | Backset Spacing | Number of Rows | Termination | Material Flammability Rating | Contact Material | Contact Finish | Shell Material, Finish [custom] | Shell Material, Finish [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Steel Yellow Cadmium Plated | 17W2 3 (DB B) | Thermoplastic | Signal and Power | Through Hole Right Angle | Housing/Shell (Unthreaded) | -55 °C | 125 °C | 7.5 A | Combo D-Sub | 15 | 2 | 300 VDC | Receptacle Female Sockets | 0.406 in | 10.3 mm | 2 | Solder | UL94 V-0 | Phosphor Bronze | Gold | ||
 Amphenol ICC (FCI) | Steel Yellow Cadmium Plated | 17W2 3 (DB B) | Thermoplastic | Signal and Power | Free Hanging (In-Line) | Housing/Shell (Unthreaded) | -55 °C | 125 °C | 7.5 A | Combo D-Sub | 15 | 2 | 300 VDC | Male Pins Plug | 2 | UL94 V-0 | Phosphor Bronze | Gold | |||||
Amphenol ICC (FCI) | 17W2 3 (DB B) | Thermoplastic | Signal and Power | Through Hole | Housing/Shell (Unthreaded) | -55 °C | 125 °C | 7.5 A | Combo D-Sub | 15 | 2 | 300 VDC | Male Pins Plug | 2 | Wire Wrap | Gold | Steel | Cadmium Plated |
