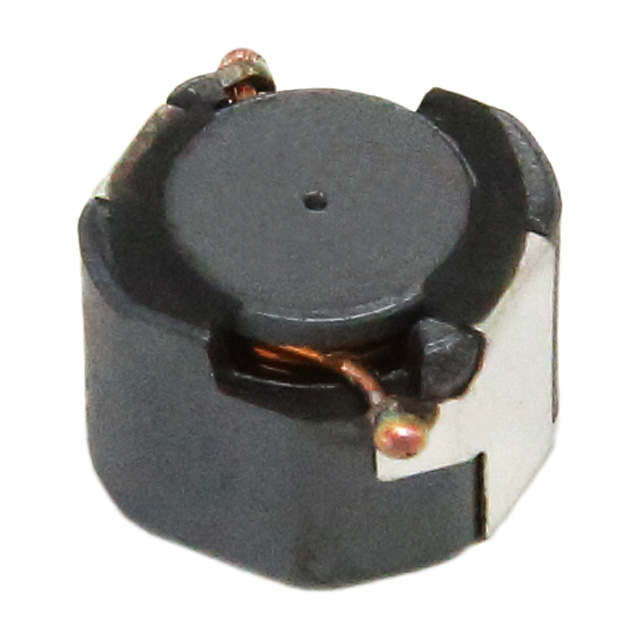

clf Series
Manufacturer: TDK Corporation
Beta
⌘K
INDUCTOR: WIRE; SMD; 10UH; 1.7A; 45.6MΩ; ±20%; CLF; -40÷150°C
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Height - Seated (Max) [Max] | Height - Seated (Max) | Tolerance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Current Rating (Amps) | Ratings | Inductance | DC Resistance (DCR) [Max] | Inductance Frequency - Test | Shielding | Current - Saturation (Isat) | Type | Material - Core | Mounting Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | -40 C | 150 °C | 0.189 " | 4.8 mm | 20 % | 5.9 mm | 0.244 " | 6.2 mm | 0.232 in | 2.4 A | AEC-Q200 | 10 µH | 45.6 mOhm | 100 kHz | Shielded | 1.7 A | Drum Core Wirewound | Ferrite | Surface Mount | Nonstandard |
