2326092 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

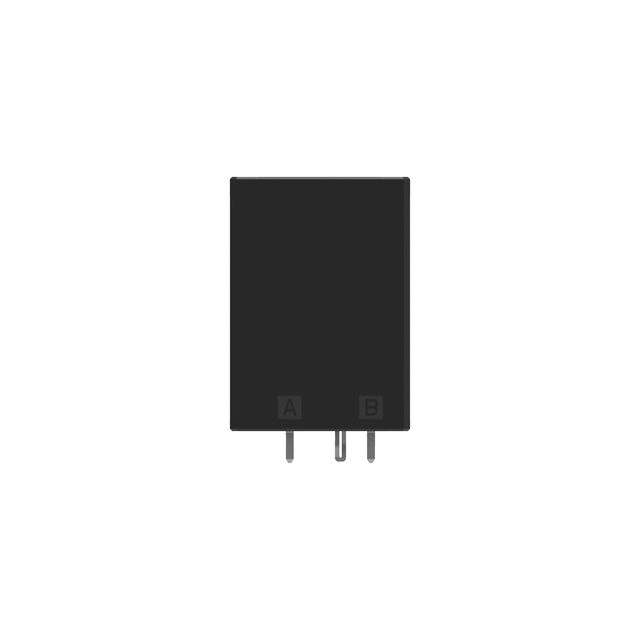

DYNAMIC D-5 V-HDR ASSY 6P AU0.38
| Part | Pitch - Mating | Pitch - Mating | Contact Shape | Insulation Height | Insulation Height | Style | Contact Material | Fastening Type | Contact Finish - Mating | Connector Type | Row Spacing - Mating | Row Spacing - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Contact Finish - Post | Voltage Rating | Number of Positions | Shrouding | Insulation Color | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Material Flammability Rating | Current Rating (Amps) | Number of Rows | Features | Contact Length - Post | Contact Length - Post | Termination | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 10.16 mm | 0.4 in | Square | 1.252 in | 31.8 mm | Board to Cable/Wire | Copper Alloy | Push-Pull | Gold | Header | 10.16 mm | 0.4 in | 15 µin | 0.38 µm | Through Hole | Tin | 630 VAC/DC | 6 | Shrouded - 4 Wall | Black | 105 ░C | -55 °C | Male Blade | UL94 V-0 | 35 A | 2 | Board Guide | 0.157 in | 4 mm | Solder | All |
