LST1-01 Series

Catalog

LED MOD LST1 WH STARBOARD 5700K

Part	Lumens/Watt @ Current - Test	Size / Dimension [diameter]	Voltage - Forward (Vf) (Typ)	Height [z]	Configuration	Lens Type	Current - Max [Max]	Color	Luminous Flux @ Current/Temperature	Type	CRI (Color Rendering Index)	CCT (K)	Wavelength [Max]	Wavelength [Min]	Temperature - Test	Viewing Angle	Current - Test	Wavelength
New Energy LST1-01G03-5770-01	144 lm/W	19.89 mm	3.3 V	1.7 mm	Starboard	Domed	3 A	Cool White	302 lm	LED Module	70	5700 K

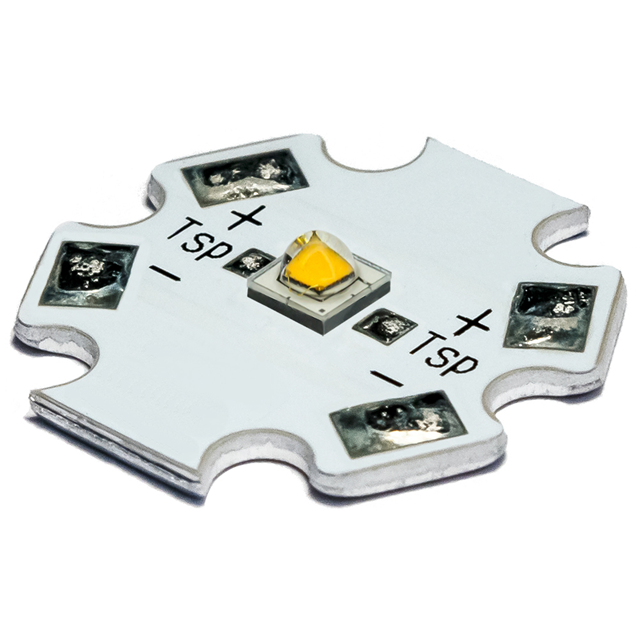

New Energy LST1-01G03-2795-01	87 lm/W	19.89 mm	3.1 V	1.7 mm	Starboard	Domed	3 A	Warm White	167 lm	LED Module	95	2700 K

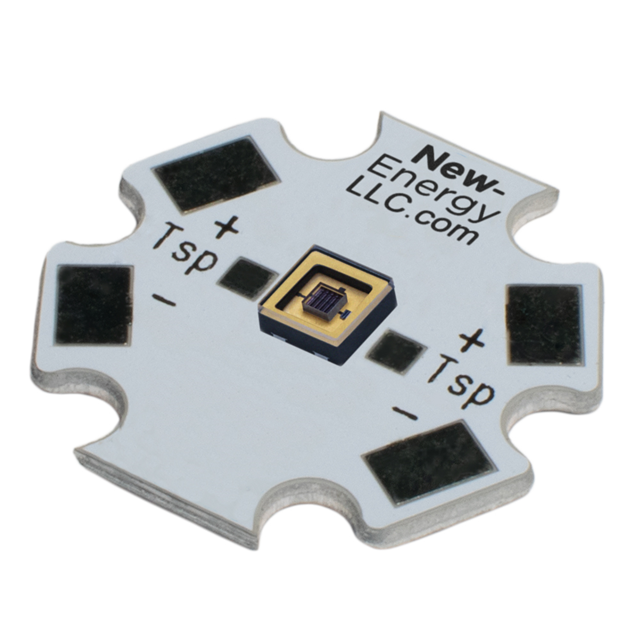

New Energy LST1-01G08-UV01-01		19.89 mm	6.5 V	2.9 mm	Starboard	Flat	800 mA	UltraViolet	30 mW	LED Module			280 nm	275 nm	25 °C	130 °	350 mA
New Energy LST1-01C48-5770-01	142 lm/W	19.89 mm	11.9 V		Starboard	Domed	1.05 A	Cool White	590 lm	LED Module	70	5700 K					350 mA

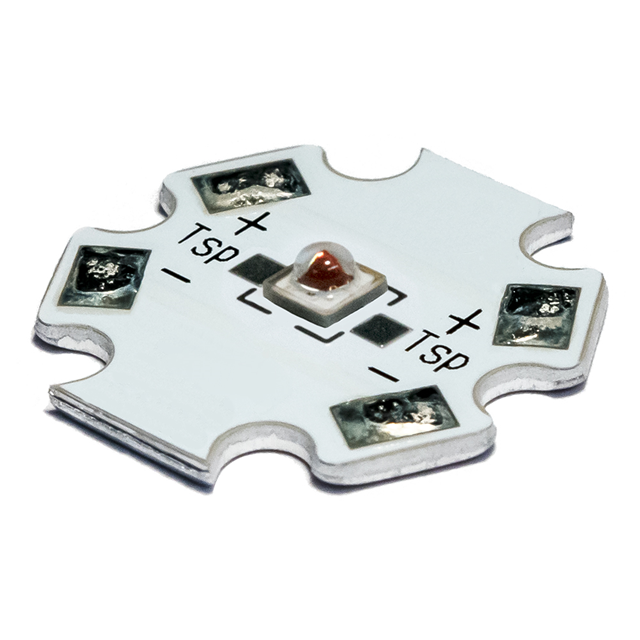

New Energy LST1-01F06-PRD1-00			2.15 V		Starboard			Red	450 mW	Chip On Board (COB)					25 °C	120 °	350 mA	655 nm
New Energy LST1-01F07-4070-01	130 lm/W	19.89 mm	3.2 V	1.7 mm	Starboard	Domed	1.3 A	Neutral White	130 lm	LED Module	70	4000 K					350 mA
New Energy LST1-01G01-UV03-00			3.4 V		Starboard			Violet	1015 mW	Chip On Board (COB)					25 °C	130 °	500 mA	395 nm
New Energy LST1-01G01-UV02-00			3.4 V		Starboard			Violet	1015 mW	Chip On Board (COB)					25 °C	130 °	500 mA	385 nm

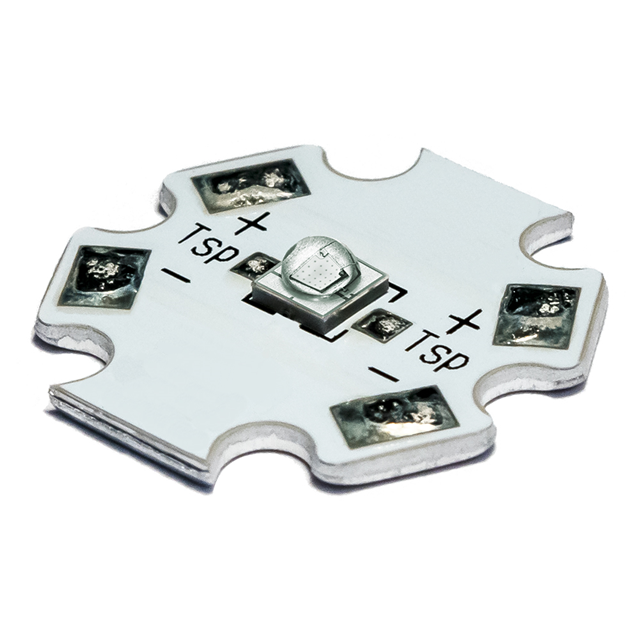

New Energy LST1-01G01-UV01-00			3.6 V		Starboard			Violet	875 mW	Chip On Board (COB)					25 °C	130 °	500 mA	365 nm

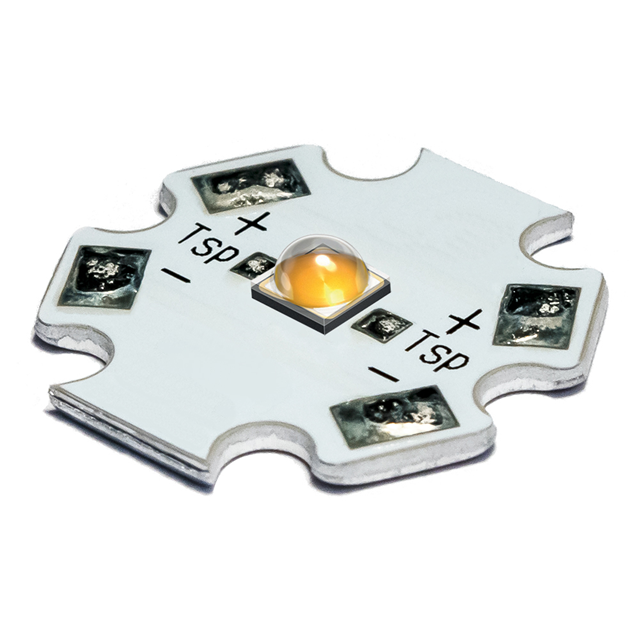

New Energy LST1-01F04-3070-01	150 lm/W	19.89 mm	3.2 V	1.7 mm	Starboard	Domed	1.8 A	Warm White	300 lm	LED Module	70	3000 K
