043680 Series

Manufacturer: Molex

Catalog

CONN HOUSING M 2 POS 7.49MM CRIMP ST CABLE MOUNT BLACK SABRE™ BAG

Part	Contact Termination	Number of Positions	Connector Type	Current Rating (Amps)	Fastening Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Pitch [x]	Pitch [x]	Note	Material - Insulation	Number of Rows	Contact Type	Stacking Direction	Voltage Rating

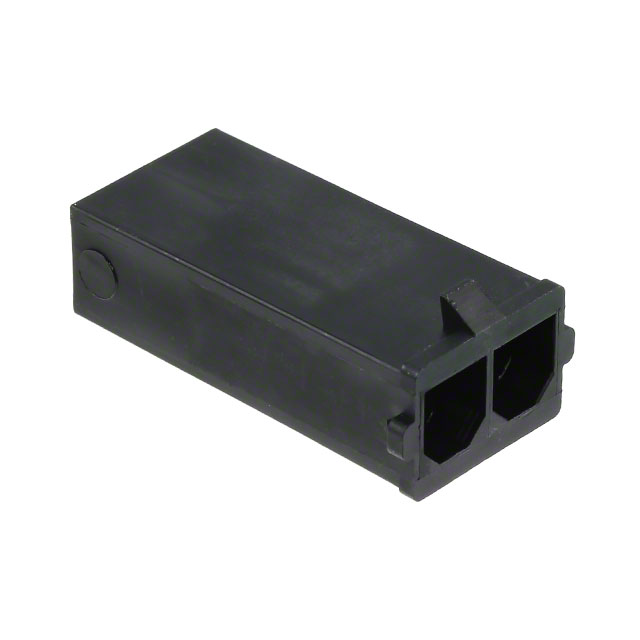

Molex 0436802002	Crimp	2	Plug	18 A	Locking Ramp	Black	-40 °C	75 ░C	Free Hanging (In-Line)	0.295 in	7.5 mm	Contacts Not Included	Nylon Polyamide (PA)	1	Male Blade	Side to Side
Molex 0436801003	Crimp		Plug	18 A	Locking Ramp	Natural	-40 °C	75 ░C	Free Hanging (In-Line)	0.295 in	7.5 mm	Contacts Not Included	Nylon Polyamide (PA)	1	Male Blade	Side to Side

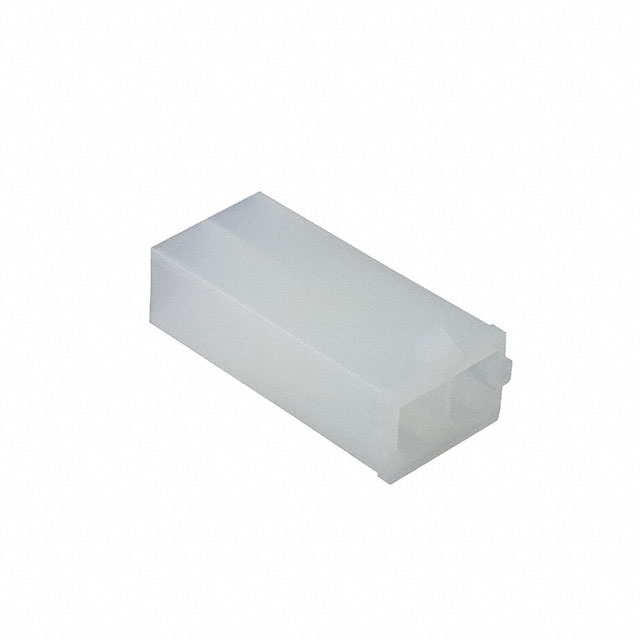

Molex 0436801002	Crimp	2	Plug	18 A	Locking Ramp	Natural	-40 °C	75 ░C	Free Hanging (In-Line)	0.295 in	7.5 mm	Contacts Not Included	Nylon Polyamide (PA)	1	Male Blade	Side to Side

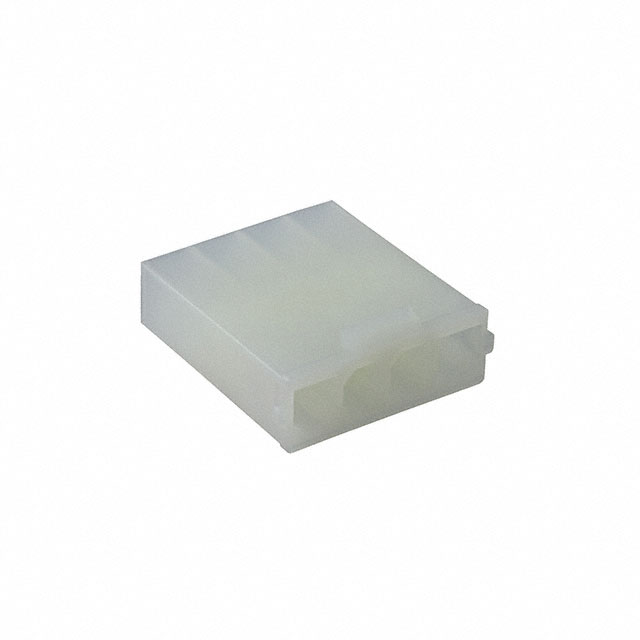

Molex 0436801004	Crimp	4	Plug	18 A	Locking Ramp	Natural	-40 °C	75 ░C	Free Hanging (In-Line)	0.295 in	7.5 mm	Contacts Not Included	Nylon Polyamide (PA)	1	Male Blade	Side to Side

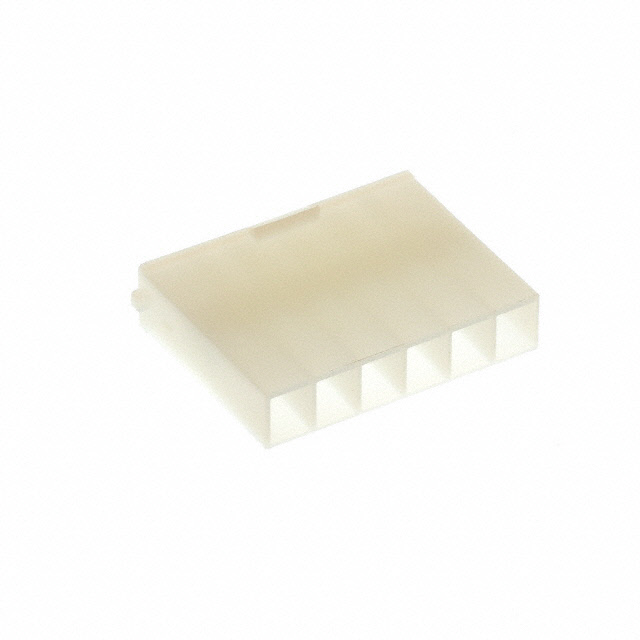

Molex 0436801006	Crimp	6	Plug	18 A	Locking Ramp	Natural	-40 °C	75 ░C	Free Hanging (In-Line)	0.295 in	7.5 mm	Contacts Not Included	Nylon Polyamide (PA)	1	Male Blade	Side to Side
Molex 0436803002	Crimp	2	Plug	12 A	Locking Ramp	Black	-45 °C	75 ░C	Free Hanging (In-Line)	0.295 in	7.5 mm	Contacts Not Included	Nylon Polyamide (PA)	1	Male Blade		600 V

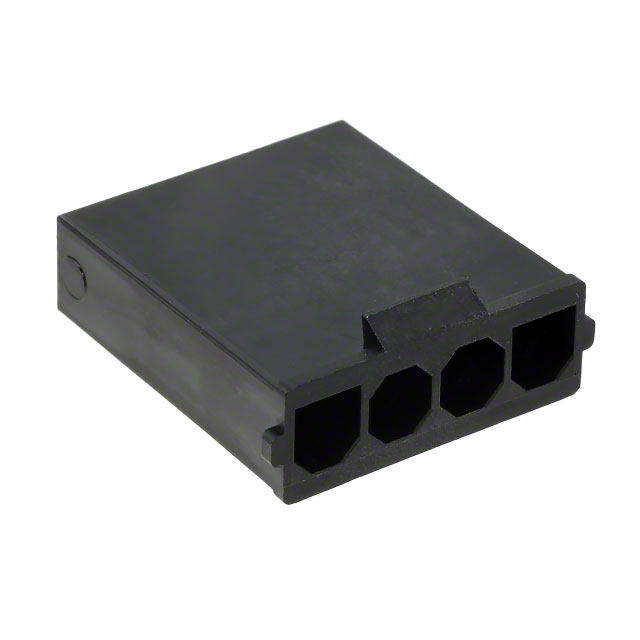

Molex 0436802004	Crimp	4	Plug	18 A	Locking Ramp	Black	-40 °C	75 ░C	Free Hanging (In-Line)	0.295 in	7.5 mm	Contacts Not Included	Nylon Polyamide (PA)	1	Male Blade	Side to Side
Molex 0436803006	Crimp	6	Plug	12 A	Locking Ramp	Black	-45 °C	75 ░C	Free Hanging (In-Line)	0.295 in	7.5 mm	Contacts Not Included	Nylon Polyamide (PA)	1	Male Blade		600 V
