19410100 Series

Manufacturer: HARTING

Catalog

HAN-ECO MODULAR 10B SURFACE MOUNT HOUSING 2XM32 W/O GLAND

Part	Thread Size	Style	Size	Housing Color	Features	Connector Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location	Housing Material

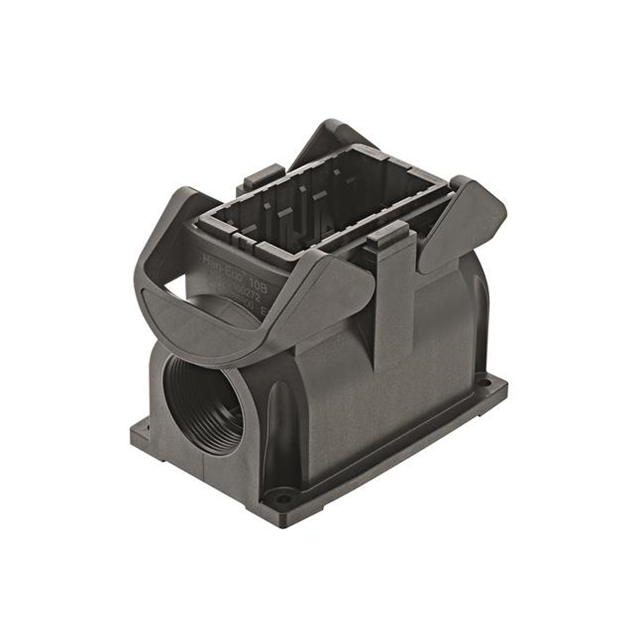

HARTING 19410100272	M32	Side Entry	10B	Black	Feed Through	Base - Box Mount	2.843 in	72.2 mm	99 mm	68 mm	3.898 in	2.677 "	IP65 - Dust Tight Water Resistant	125 °C	-40 C	Locking Clip (2) on Base Bottom	Glass Filled Nylon Polyamide (PA)
HARTING 19410100452
HARTING 19410100552
HARTING 19410100331

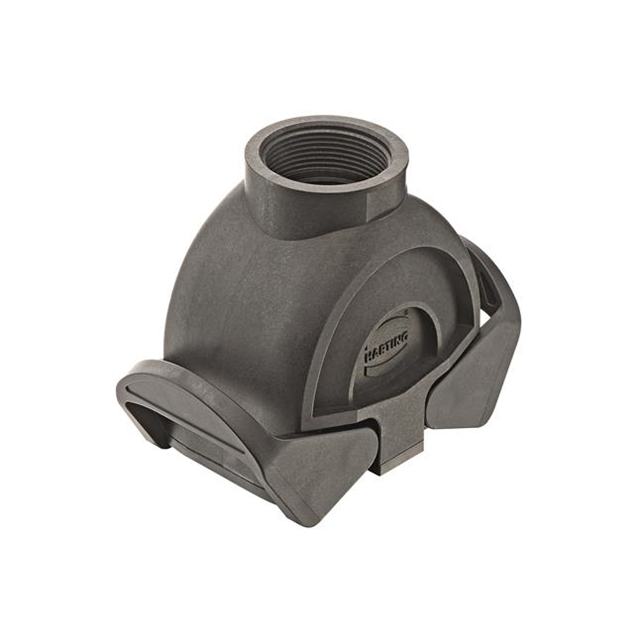

HARTING 19410100722	M32	Bottom Entry Top or Bottom Entry	10B	Black	Cable to Cable	Hood - Coupling							IP65 - Dust Tight Water Resistant	125 °C	-40 C	Locking Clip (2) on Hood Top	Glass Filled Nylon Polyamide (PA)

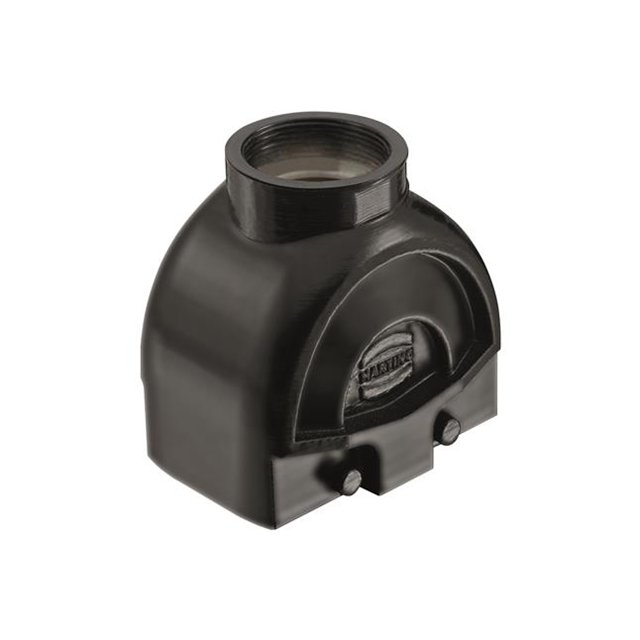

HARTING 19410100422	M32	Top Entry	10B	Black		Hood	2.996 in	76.1 mm	74 mm	57 mm	2.913 in	2.244 "	IP65 - Dust Tight Water Resistant	125 °C	-40 C	Locking Clip (2) on Base Bottom	Glass Filled Nylon Polyamide (PA)
