INA117 Series

High Common-Mode Voltage Difference Amplifier

Catalog

High Common-Mode Voltage Difference Amplifier

Part	Voltage - Supply Span (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Package / Case	Package / Case [y]	Package / Case [x]	Mounting Type	Current - Output / Channel	-3db Bandwidth	Voltage - Input Offset	Amplifier Type	Voltage - Supply Span (Min) [Min]	Slew Rate	Number of Circuits	Current - Supply	Package / Case	Package / Case
Texas Instruments INA117KU/2K5	36 V	85 °C	-40 °C	8-SOIC	8-SOIC	3.9 mm	0.154 in	Surface Mount	20 mA	200 kHz	600 µV	Differential	10 V	2.6 V/µs	1	1.5 mA

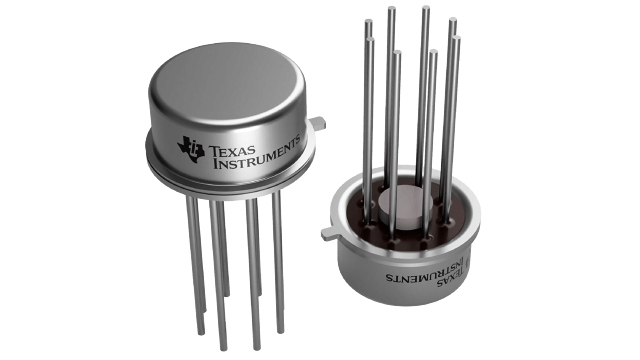

Texas Instruments INA117BM	36 V	85 °C	-25 °C	TO-99-8	TO-99-8 Metal Can			Through Hole	20 mA	200 kHz	120 µV	Differential	10 V	2.6 V/µs	1	1.5 mA
Texas Instruments INA117KU/2K5G4	36 V	85 °C	-40 °C	8-SOIC	8-SOIC	3.9 mm	0.154 in	Surface Mount	20 mA	200 kHz	600 µV	Differential	10 V	2.6 V/µs	1	1.5 mA
Texas Instruments INA117P	36 V	85 °C	-40 °C	8-PDIP	8-DIP			Through Hole	20 mA	200 kHz	120 µV	Differential	10 V	2.6 V/µs	1	1.5 mA	0.3 in	7.62 mm
Texas Instruments INA117SM	36 V	125 °C	-55 °C	TO-99-8	TO-99-8 Metal Can			Through Hole	20 mA	200 kHz	120 µV	Differential	10 V	2.6 V/µs	1	1.5 mA
Texas Instruments INA117SMQ	36 V	125 °C	-55 °C	TO-99-8	TO-99-8 Metal Can			Through Hole	20 mA	200 kHz	120 µV	Differential	10 V	2.6 V/µs	1	1.5 mA
Texas Instruments INA117KU	36 V	85 °C	-40 °C	8-SOIC	8-SOIC	3.9 mm	0.154 in	Surface Mount	20 mA	200 kHz	600 µV	Differential	10 V	2.6 V/µs	1	1.5 mA

Catalog

High Common-Mode Voltage Difference Amplifier

Key Features

• Common-mode input range: ±200V (VS = ±15V)Protected inputs:±500V Common-mode±500V DifferentialUnity gain: 0.05% gain error maximumNonlinearity: 0.001% maximumCMRR: 70dB minimumCommon-mode input range: ±200V (VS = ±15V)Protected inputs:±500V Common-mode±500V DifferentialUnity gain: 0.05% gain error maximumNonlinearity: 0.001% maximumCMRR: 70dB minimum

Description

The INA117 is a precision unity-gain difference amplifier with very high common-mode input voltage range. The INA117 is a single monolithic IC consisting of a precision op amp and integrated thin-film resistor network. The device can accurately measure small differential voltages in the presence of common-mode signals up to ±200V. The INA117 inputs are protected from momentary common-mode or differential overloads up to ±500V. In many applications, where galvanic isolation is not essential, the INA117 can replace isolation amplifiers. This design can eliminate costly isolated input-side power supplies and the associated ripple, noise, and quiescent current. The 0.001% nonlinearity and 200kHz bandwidth of the INA117 is superior to those of conventional isolation amplifiers. The INA117 is available in 8-pin plastic mini-DIP and SO-8 surface-mount packages, specified for the –40°C to 85°C temperature range. The INA117 is a precision unity-gain difference amplifier with very high common-mode input voltage range. The INA117 is a single monolithic IC consisting of a precision op amp and integrated thin-film resistor network. The device can accurately measure small differential voltages in the presence of common-mode signals up to ±200V. The INA117 inputs are protected from momentary common-mode or differential overloads up to ±500V. In many applications, where galvanic isolation is not essential, the INA117 can replace isolation amplifiers. This design can eliminate costly isolated input-side power supplies and the associated ripple, noise, and quiescent current. The 0.001% nonlinearity and 200kHz bandwidth of the INA117 is superior to those of conventional isolation amplifiers. The INA117 is available in 8-pin plastic mini-DIP and SO-8 surface-mount packages, specified for the –40°C to 85°C temperature range.
