745-041 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 41POS 0.100

Part	Material - Insulation	Termination Rows	Number of Positions	Card Type	Color	Card Thickness [Max]	Card Thickness [Min]	Number of Rows	Termination	Read Out	Pitch	Pitch	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Gender	Number of Positions/Bay/Row	Contact Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 745-041-545-101	Polyester Thermoplastic	1	41	Non Specified - Single Edge	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Press-Fit	Single	0.1 "	2.54 mm	Copper Alloy	-40 C	105 ░C	Through Hole	Female	41	Cantilever	Gold	30 Áin	0.76 Ám

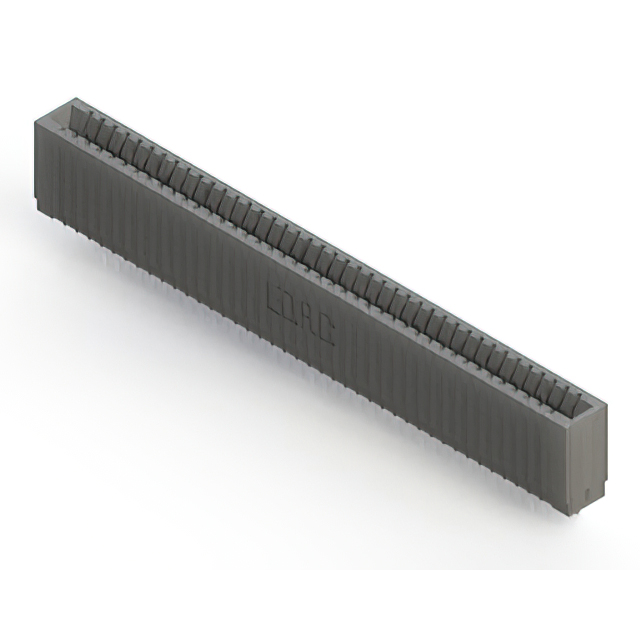

EDAC Inc. 745-041-520-101	Polyester Thermoplastic	1	41	Non Specified - Single Edge	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Press-Fit	Single	0.1 "	2.54 mm	Copper Alloy	-40 C	105 ░C	Through Hole	Female	41	Cantilever	Gold	30 Áin	0.76 Ám
EDAC Inc. 745-041-541-106	Polyester Thermoplastic	1	41	Non Specified - Single Edge	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Press-Fit Wire Wrap	Single	0.1 "	2.54 mm	Copper Alloy	-40 C	105 ░C	Through Hole	Female	41	Cantilever	Gold	30 Áin	0.76 Ám
EDAC Inc. 745-041-545-106	Polyester Thermoplastic	1	41	Non Specified - Single Edge	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Press-Fit	Single	0.1 "	2.54 mm	Copper Alloy	-40 C	105 ░C	Through Hole	Female	41	Cantilever	Gold	30 Áin	0.76 Ám
EDAC Inc. 745-041-522-101	Polyester Thermoplastic	1	41	Non Specified - Single Edge	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Press-Fit	Single	0.1 "	2.54 mm	Copper Alloy	-40 C	105 ░C	Through Hole	Female	41	Cantilever	Gold	30 Áin	0.76 Ám
EDAC Inc. 745-041-522-106	Polyester Thermoplastic	1	41	Non Specified - Single Edge	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Press-Fit	Single	0.1 "	2.54 mm	Copper Alloy	-40 C	105 ░C	Through Hole	Female	41	Cantilever	Gold	30 Áin	0.76 Ám
EDAC Inc. 745-041-540-101	Polyester Thermoplastic	1	41	Non Specified - Single Edge	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Press-Fit Wire Wrap	Single	0.1 "	2.54 mm	Copper Alloy	-40 C	105 ░C	Through Hole	Female	41	Cantilever	Gold	30 Áin	0.76 Ám
EDAC Inc. 745-041-541-101	Polyester Thermoplastic	1	41	Non Specified - Single Edge	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Press-Fit Wire Wrap	Single	0.1 "	2.54 mm	Copper Alloy	-40 C	105 ░C	Through Hole	Female	41	Cantilever	Gold	30 Áin	0.76 Ám
EDAC Inc. 745-041-525-101	Polyester Thermoplastic	1	41	Non Specified - Single Edge	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Press-Fit	Single	0.1 "	2.54 mm	Copper Alloy	-40 C	105 ░C	Through Hole	Female	41	Cantilever	Gold	30 Áin	0.76 Ám
EDAC Inc. 745-041-540-106	Polyester Thermoplastic	1	41	Non Specified - Single Edge	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Press-Fit Wire Wrap	Single	0.1 "	2.54 mm	Copper Alloy	-40 C	105 ░C	Through Hole	Female	41	Cantilever	Gold	30 Áin	0.76 Ám
