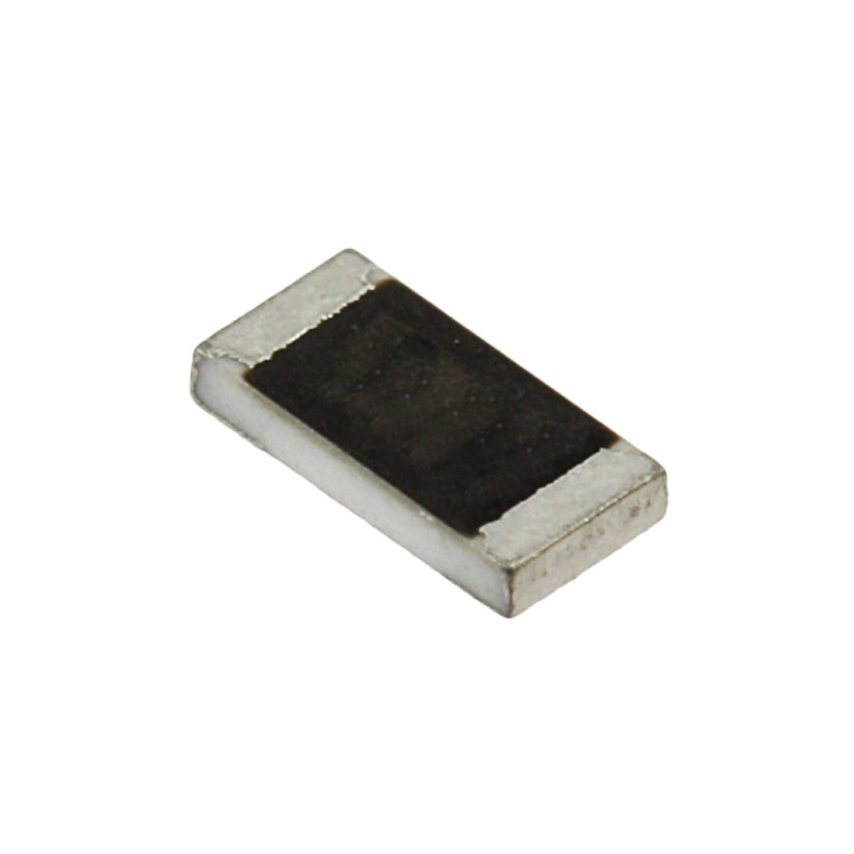

RN732B Series
Manufacturer: KOA Speer Electronics, Inc.
Beta
⌘K
RES 15.4K OHM 0.25% 1/8W 1206
| Part | Temperature Coefficient | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Operating Temperature [Max] | Operating Temperature [Min] | Features | Composition | Supplier Device Package | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Tolerance | Package / Case | Number of Terminations [custom] | Power (Watts) | Power (Watts) | Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KOA Speer Electronics, Inc. | 50 ppm/░C | 0.7 mm | 0.028 " | 155 C | -55 C | Moisture Resistant | Thin Film | 1206 | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.25 % | 1206 (3216 Metric) | 2 | 0.125 W | 0.125 W | |
KOA Speer Electronics, Inc. | 25 ppm/°C | 0.7 mm | 0.028 " | 155 C | -55 C | Moisture Resistant | Thin Film | 1206 | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.5 % | 1206 (3216 Metric) | 2 | 0.125 W | 0.125 W | 25.2 kOhms |
KOA Speer Electronics, Inc. | 25 ppm/°C | 0.7 mm | 0.028 " | 155 C | -55 C | Moisture Resistant | Thin Film | 1206 | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.05 % | 1206 (3216 Metric) | 2 | 0.125 W | 0.125 W | 26.1 kOhms |
KOA Speer Electronics, Inc. | 100 ppm/°C | 0.7 mm | 0.028 " | 155 C | -55 C | Moisture Resistant | Thin Film | 1206 | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.5 % | 1206 (3216 Metric) | 2 | 0.125 W | 0.125 W | 120 Ohms |
KOA Speer Electronics, Inc. | 50 ppm/░C | 0.7 mm | 0.028 " | 155 C | -55 C | Moisture Resistant | Thin Film | 1206 | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.1 % | 1206 (3216 Metric) | 2 | 0.125 W | 0.125 W | 232 kOhms |
KOA Speer Electronics, Inc. | 10 ppm/°C | 0.7 mm | 0.028 " | 155 C | -55 C | Moisture Resistant | Thin Film | 1206 | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.1 % | 1206 (3216 Metric) | 2 | 0.125 W | 0.125 W | 126 Ohms |
KOA Speer Electronics, Inc. | 100 ppm/°C | 0.7 mm | 0.028 " | 155 C | -55 C | Moisture Resistant | Thin Film | 1206 | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1 % | 1206 (3216 Metric) | 2 | 0.125 W | 0.125 W | 31.2 Ohms |
KOA Speer Electronics, Inc. | 10 ppm/°C | 0.7 mm | 0.028 " | 155 C | -55 C | Moisture Resistant | Thin Film | 1206 | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.05 % | 1206 (3216 Metric) | 2 | 0.125 W | 0.125 W | 11.7 kOhms |
KOA Speer Electronics, Inc. | 10 ppm/°C | 0.7 mm | 0.028 " | 155 C | -55 C | Moisture Resistant | Thin Film | 1206 | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1 % | 1206 (3216 Metric) | 2 | 0.125 W | 0.125 W | 2.15 kOhms |
KOA Speer Electronics, Inc. | 10 ppm/°C | 0.7 mm | 0.028 " | 155 C | -55 C | Moisture Resistant | Thin Film | 1206 | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1 % | 1206 (3216 Metric) | 2 | 0.125 W | 0.125 W | 16.9 kOhms |
