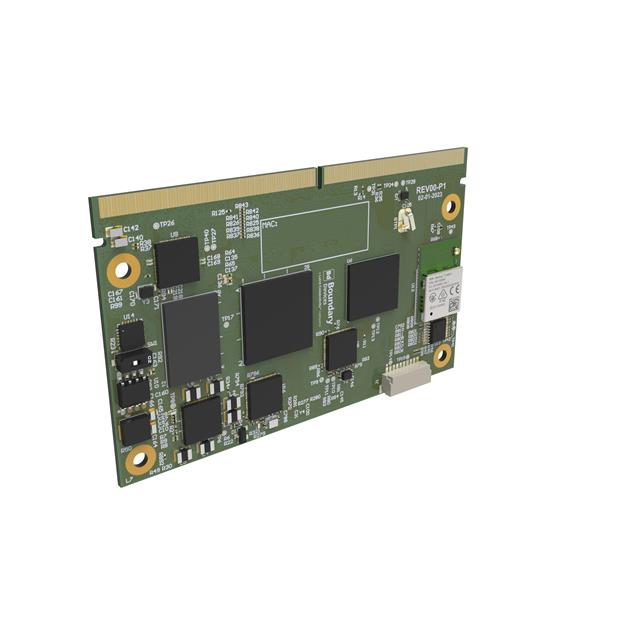

N8MP_SMARC_SOM Series
Manufacturer: Ezurio LLC
Catalog
SBC 1.8GHZ 1/4 CORE 4GB RAM
| Part | Watchdog Timer | Video Outputs | Number of Cores [custom] | Core Processor | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | RAM Capacity/Installed | USB | Expansion Site/Bus | Storage Interface | Ethernet | Speed | Package / Case | RAM Size | Connectivity | Architecture | Flash Size | Peripherals | Form Factor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Ezurio LLC | HDMI LVDS MIPI CSI MIPI DSI OpenCL OpenGL RGB | 0.25 | ARM® Cortex®-A53 ARM® Cortex®-M7 i.MX8M Quad | 70 °C | 0 °C | 81.99 mm | 50.01 mm | 3.228 " | 1.969 " | 0 GB 4 GB | USB 2.0 Host (4) USB 2.0 OTG (1) USB 3.0 Host (2) | Audio CAN GPIO I2C LVDS MIPI CSI MIPI DSI PCIe UART Wi-Fi/Bluetooth | eMMC SPI | GbE (2) | 1.8 GHz 800 MHz | ||||||||
 Ezurio LLC | ARM® Cortex®-A53 ARM® Cortex®-M7 | 85 C | -40 ¯C | 1.8 GHz 800 MHz | Module | 2 GB | CANbus Ethernet I2C I2S MMC/SD/SDIO PCIe SPDIF SPI UART USB | MPU | 16 GB | HDMI LVDS | |||||||||||||
Ezurio LLC | HDMI LVDS MIPI CSI MIPI DSI OpenCL OpenGL RGB | 0.25 | ARM® Cortex®-A53 ARM® Cortex®-M7 i.MX8M Quad | 70 °C | 0 °C | 81.99 mm | 50.01 mm | 3.228 " | 1.969 " | 0 GB 2 GB | Audio CAN GPIO I2C LVDS MIPI CSI MIPI DSI PCIe UART Wi-Fi/Bluetooth | eMMC SPI | GbE (2) | 1.8 GHz 800 MHz | SMARC | ||||||||
Ezurio LLC | ARM® Cortex®-A53 ARM® Cortex®-M7 | 85 °C | -40 C | ||||||||||||||||||||
Ezurio LLC | HDMI LVDS MIPI CSI MIPI DSI OpenCL OpenGL RGB | 0.25 | ARM® Cortex®-A53 ARM® Cortex®-M7 i.MX8M Quad | 70 °C | 0 °C | 81.99 mm | 50.01 mm | 3.228 " | 1.969 " | 0 GB 2 GB | USB 2.0 Host (4) USB 2.0 OTG (1) USB 3.0 Host (2) | Audio CAN GPIO I2C LVDS MIPI CSI MIPI DSI PCIe UART Wi-Fi/Bluetooth | eMMC SPI | GbE (2) | 1.8 GHz 800 MHz | SMARC | |||||||
Ezurio LLC | ARM® Cortex®-A53 ARM® Cortex®-M7 | 70 °C | 0 °C | 1.8 GHz 800 MHz | Module | 4 GB | CANbus Ethernet I2C I2S MMC/SD/SDIO PCIe SPDIF SPI UART USB | MPU | 16 GB | HDMI LVDS | |||||||||||||
Ezurio LLC | HDMI LVDS MIPI CSI MIPI DSI OpenCL OpenGL RGB | 0.25 | ARM® Cortex®-A53 ARM® Cortex®-M7 i.MX8M Quad | 70 °C | 0 °C | 81.99 mm | 50.01 mm | 3.228 " | 1.969 " | 0 GB 8 GB | USB 2.0 Host (4) USB 2.0 OTG (1) USB 3.0 Host (2) | Audio CAN GPIO I2C LVDS MIPI CSI MIPI DSI PCIe UART Wi-Fi/Bluetooth | eMMC SPI | GbE (2) | 1.8 GHz 800 MHz | ||||||||
Ezurio LLC | ARM® Cortex®-A53 ARM® Cortex®-M7 | 70 °C | 0 °C | ||||||||||||||||||||
Ezurio LLC | HDMI LVDS MIPI CSI MIPI DSI OpenCL OpenGL RGB | 0.25 | ARM® Cortex®-A53 ARM® Cortex®-M7 i.MX8M Quad | 85 °C | -40 C | 81.99 mm | 50.01 mm | 3.228 " | 1.969 " | 0 GB 2 GB | USB 2.0 Host (4) USB 2.0 OTG (1) USB 3.0 Host (2) | Audio CAN GPIO I2C LVDS MIPI CSI MIPI DSI PCIe UART Wi-Fi/Bluetooth | eMMC SPI | GbE (2) | 1.8 GHz 800 MHz | ||||||||
Ezurio LLC | HDMI LVDS MIPI CSI MIPI DSI OpenCL OpenGL RGB | 0.25 | ARM® Cortex®-A53 ARM® Cortex®-M7 i.MX8M Quad | 85 °C | -40 C | 81.99 mm | 50.01 mm | 3.228 " | 1.969 " | 0 GB 4 GB | USB 2.0 Host (4) USB 2.0 OTG (1) USB 3.0 Host (2) | Audio CAN GPIO I2C LVDS MIPI CSI MIPI DSI PCIe UART Wi-Fi/Bluetooth | eMMC SPI | GbE (2) | 1.8 GHz 800 MHz | SMARC |
