45S101 Series
Manufacturer: Rosenberger
Beta
⌘K
1.0/2.3 STRAIGHT PLUG
| Part | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Voltage Rating | Body Finish | Body Material | Mating Cycles | Number of Ports | Shield Termination | Fastening Type | Housing Color | Connector Style | Impedance | Center Contact Material | Contact Termination | Frequency - Max [Max] | Connector Type | Cable Group | Mounting Type | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

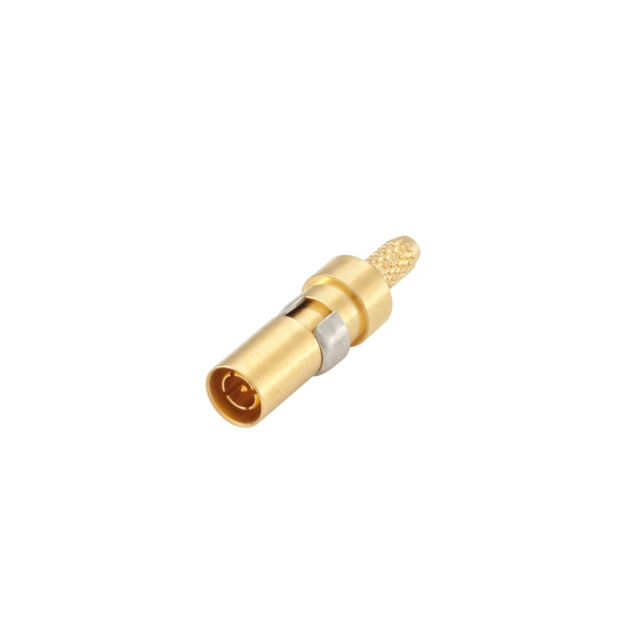

 Rosenberger | Gold | -55 C | 125 °C | Polytetrafluoroethylene (PTFE) | 250 V | Gold | Brass | 500 | 1 | Crimp | Push-Pull | Gold | 1.0/2.3 | 50 Ohms | Beryllium Copper | Crimp | 6000 MHz | Plug Male Pin | RG-316 | Free Hanging (In-Line) | |

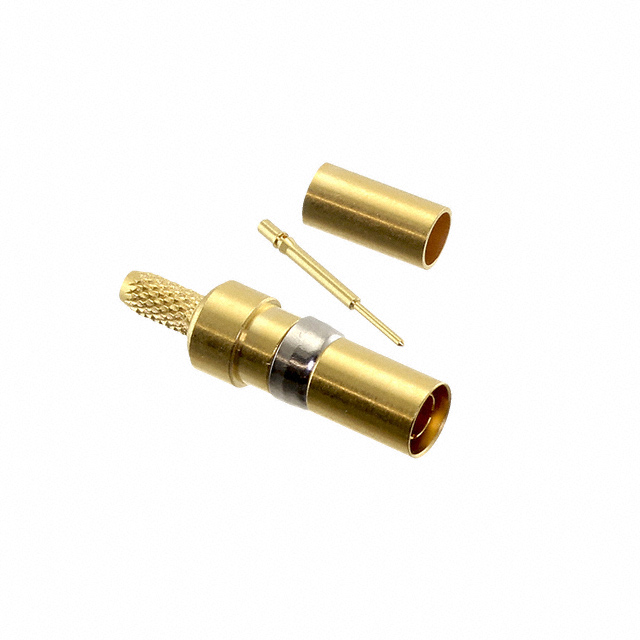

 Rosenberger | Gold | -55 C | 125 °C | Polytetrafluoroethylene (PTFE) | 250 V | Gold | Brass | 500 | 1 | Crimp | Push-Pull | Gold | 1.0/2.3 | 50 Ohms | Beryllium Copper | Crimp | 6000 MHz | Plug Male Pin | 188A 316 RG-174A | Free Hanging (In-Line) | 1 Connector 1 Contact 1 Ferrule |
