628W21W Series

Manufacturer: EDAC Inc.

Catalog

CONN D-SUB RCPT 21P PNL MNT

Part	Contact Material	Color	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Voltage Rating	Shell Material, Finish	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout	Shell Size, Connector Layout	Number of Rows [custom]	Flange Feature	Contact Type	Number of Positions	Current Rating (Amps)	Features	Connector Type	Contact Finish	Mounting Type	Connector Style	Material Flammability Rating	Ingress Protection	Current Rating (Amps)	Contact Finish Thickness	Termination	Flange Feature

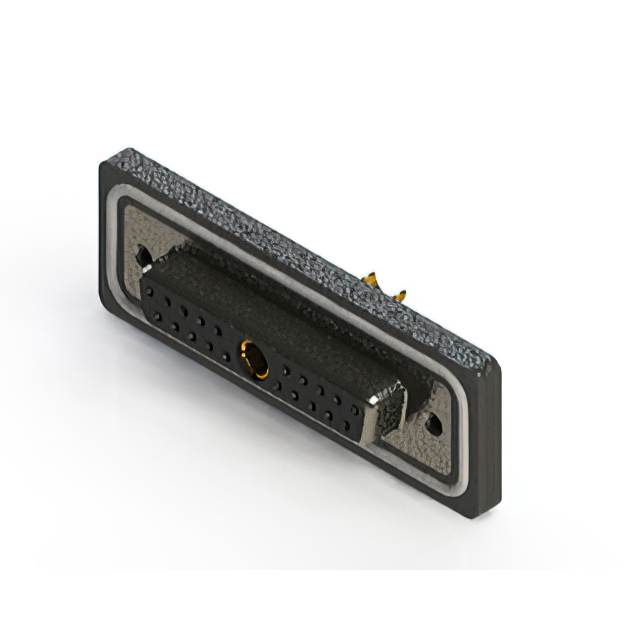

EDAC Inc. 628W21W1622-4NA	Copper Alloy	Black	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	125 VDC	Nickel Plated Steel	30 Áin	0.76 Ám	21W1 B DB	3	2	Housing/Shell (M3)	Signal and Power	21	5 A 40 A	Shielded	Receptacle Female Sockets	Gold	Panel Mount Through Hole	Combo D-Sub	UL94 V-0	IP67 - Dust Tight Waterproof
EDAC Inc. 628W21W1224-2ND	Copper Alloy	Black	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	125 VDC	Nickel Plated Steel			21W1 B DB	3	2	Board Side (M3)	Signal and Power	21		Board Lock Shielded	Receptacle Female Sockets	Gold	Panel Mount Through Hole	Combo D-Sub	UL94 V-0	IP67 - Dust Tight Waterproof	20A 5A	Flash	Solder
EDAC Inc. 628W21W1622-1NA	Copper Alloy	Black	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	125 VDC	Nickel Plated Steel	30 Áin	0.76 Ám	21W1 B DB	3	2	Housing/Shell (M3)	Signal and Power	21		Shielded	Receptacle Female Sockets	Gold	Panel Mount Through Hole	Combo D-Sub	UL94 V-0	IP67 - Dust Tight Waterproof	10A 5A
EDAC Inc. 628W21W1124-4N5	Copper Alloy	Black	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	125 VDC	Nickel Plated Steel	5 µin	0.127 µm	21W1 B DB	3	2	Board Side (4-40)	Signal and Power	21	5 A 40 A	Board Lock Shielded	Receptacle Female Sockets	Gold	Panel Mount Through Hole	Combo D-Sub	UL94 V-0	IP67 - Dust Tight Waterproof			Solder
EDAC Inc. 628W21W1324-1ND	Copper Alloy	Black	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	125 VDC	Nickel Plated Steel	15 µin	0.38 µm	21W1 B DB	3	2	Board Side (M3)	Signal and Power	21		Board Lock Shielded	Receptacle Female Sockets	Gold	Panel Mount Through Hole	Combo D-Sub	UL94 V-0	IP67 - Dust Tight Waterproof	10A 5A		Solder

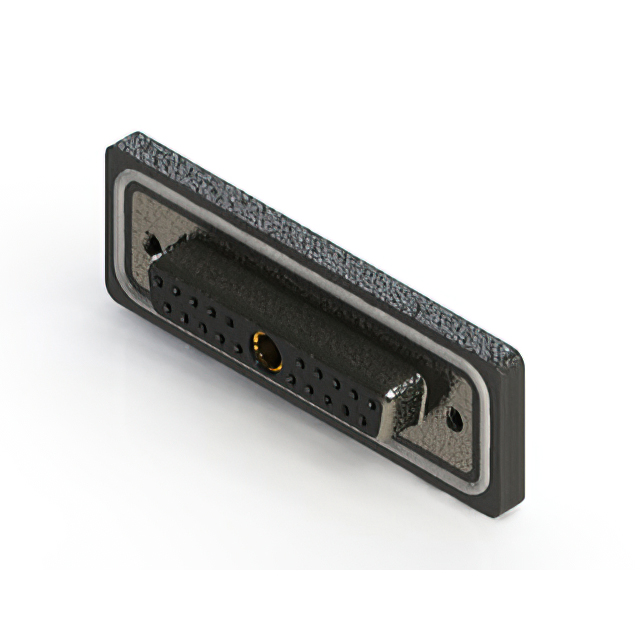

EDAC Inc. 628W21W1624-3N2	Copper Alloy	Black	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	125 VDC	Nickel Plated Steel	30 Áin	0.76 Ám	21W1 B DB	3	2	Housing/Shell	Signal and Power	21	5 A 30 A	Shielded	Receptacle Female Sockets	Gold	Panel Mount Through Hole	Combo D-Sub	UL94 V-0	IP67 - Dust Tight Waterproof			Solder	4-40
EDAC Inc. 628W21W1224-4ND	Copper Alloy	Black	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	125 VDC	Nickel Plated Steel			21W1 B DB	3	2	Board Side (M3)	Signal and Power	21	5 A 40 A	Board Lock Shielded	Receptacle Female Sockets	Gold	Panel Mount Through Hole	Combo D-Sub	UL94 V-0	IP67 - Dust Tight Waterproof		Flash	Solder

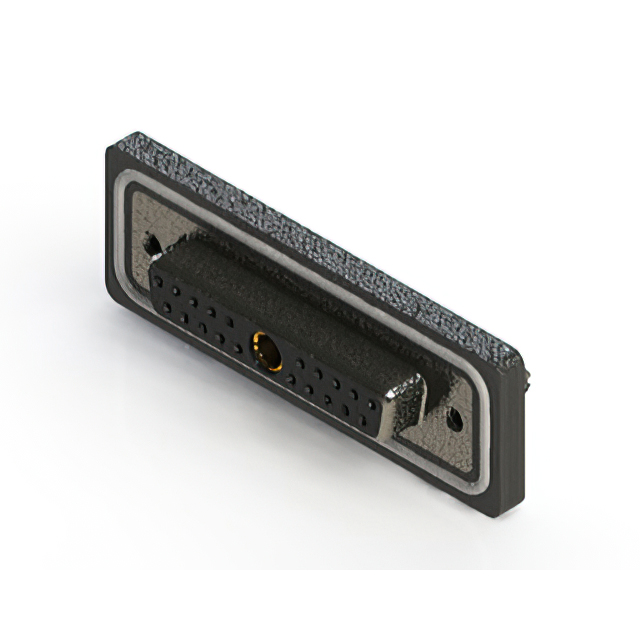

EDAC Inc. 628W21W1124-1N5	Copper Alloy	Black	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	125 VDC	Nickel Plated Steel	5 µin	0.127 µm	21W1 B DB	3	2	Board Side (4-40)	Signal and Power	21		Board Lock Shielded	Receptacle Female Sockets	Gold	Panel Mount Through Hole	Combo D-Sub	UL94 V-0	IP67 - Dust Tight Waterproof	10A 5A		Solder
EDAC Inc. 628W21W1324-3N2	Copper Alloy	Black	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	125 VDC	Nickel Plated Steel	15 µin	0.38 µm	21W1 B DB	3	2	Housing/Shell	Signal and Power	21	5 A 30 A	Shielded	Receptacle Female Sockets	Gold	Panel Mount Through Hole	Combo D-Sub	UL94 V-0	IP67 - Dust Tight Waterproof			Solder	4-40
EDAC Inc. 628W21W1224-3NA	Copper Alloy	Black	85 °C	-25 °C	Polybutylene Terephthalate (PBT) Glass Filled	125 VDC	Nickel Plated Steel			21W1 B DB	3	2	Housing/Shell (M3)	Signal and Power	21	5 A 30 A	Shielded	Receptacle Female Sockets	Gold	Panel Mount Through Hole	Combo D-Sub	UL94 V-0	IP67 - Dust Tight Waterproof		Flash	Solder
