282811 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

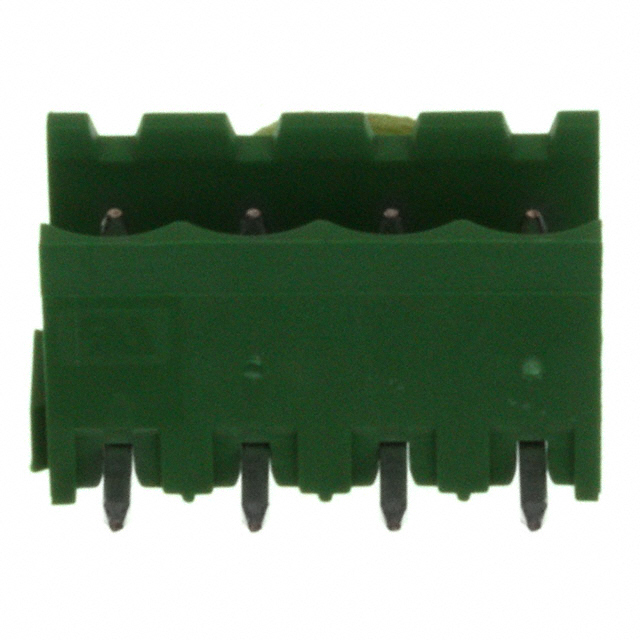

TERM BLOCK HDR 4POS 90DEG 5MM
| Part | Features | Positions Per Level | Contact Material | Mounting Type | Pitch [x] | Pitch [x] | Header Orientation | Number of Positions | Material Flammability Rating | Insulation Height | Insulation Height | Contact Tail Length | Contact Tail Length | Number of Levels | Contact Mating Finish | Operating Temperature [Min] | Operating Temperature [Max] | Color | Type | Termination Style | Voltage - UL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Interlocking (Side) | 4 | Copper Alloy | Through Hole | 5 mm | 0.197 in | 90° Right Angle | 4 | UL94 V-0 | 8.36 mm | 0.329 in | 3.5 mm | 0.138 in | 1 | Tin | -40 °C | 110 °C | Green | Header Male Pins Shrouded (2 Side) | Solder | 300 V |
