CJ6X88 Series

Catalog

MINI-COM MODULE, CAT 6A, UTP, 8 POS 8 WI

Part	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Material	Number of Rows	Mounting Type	Number of Positions/Contacts	Orientation	Tab Direction	LED Color	Ratings	Termination	Shielding	Number of Ports
Panduit Corp CJ6X88TGRD-C	Polycarbonate (PC)	75 ░C	-10 °C	Jack	Phosphor Bronze	1	Panel Mount	8p8c (RJ45 Ethernet)	Straight	Up	Does Not Contain LED	Cat6a	IDC	Unshielded	1
Panduit Corp CJ6X88TGYL	Polycarbonate (PC)	75 ░C	-10 °C	Jack	Phosphor Bronze	1	Panel Mount	8p8c (RJ45 Ethernet)	Straight	Up	Does Not Contain LED	Cat6a	IDC	Unshielded	1

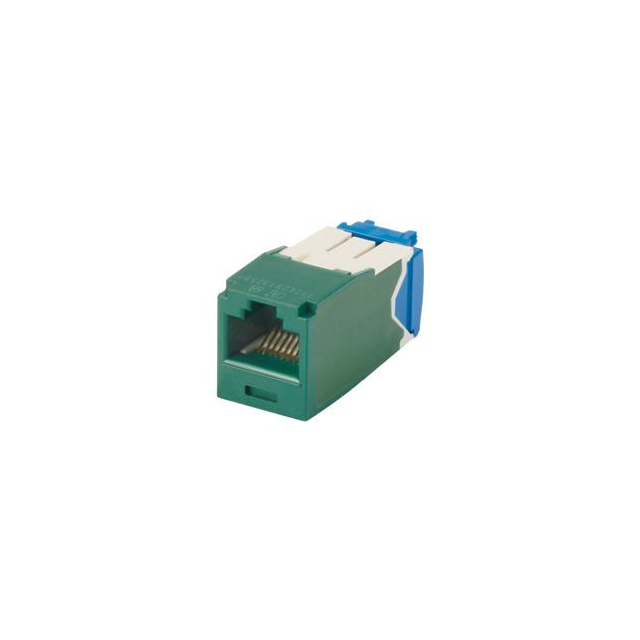

Panduit Corp CJ6X88TGGR-C	Polycarbonate (PC)	75 ░C	-10 °C	Jack	Phosphor Bronze	1	Panel Mount	8p8c (RJ45 Ethernet)	Straight	Up	Does Not Contain LED	Cat6a	IDC	Unshielded	1

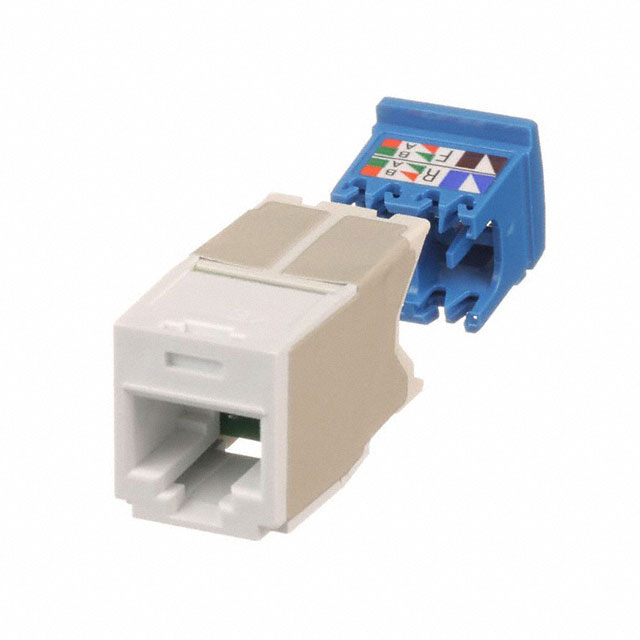

Panduit Corp CJ6X88TGWH	Polycarbonate (PC)	75 ░C	-10 °C	Jack	Phosphor Bronze	1	Panel Mount	8p8c (RJ45 Ethernet)	Straight	Up	Does Not Contain LED	Cat6a	IDC	Unshielded	1
Panduit Corp CJ6X88TGRD-24	Polycarbonate (PC)	75 ░C	-10 °C	Jack	Phosphor Bronze	1	Panel Mount	8p8c (RJ45 Ethernet)	Straight	Up	Does Not Contain LED	Cat6a	IDC	Unshielded	1
Panduit Corp CJ6X88TGOR-24	Polycarbonate (PC)	75 ░C	-10 °C	Jack	Phosphor Bronze	1	Panel Mount	8p8c (RJ45 Ethernet)	Straight	Up	Does Not Contain LED	Cat6a	IDC	Unshielded	1
Panduit Corp CJ6X88TGGR-24	Polycarbonate (PC)	75 ░C	-10 °C	Jack	Phosphor Bronze	1	Panel Mount	8p8c (RJ45 Ethernet)	Straight	Up	Does Not Contain LED	Cat6a	IDC	Unshielded	1

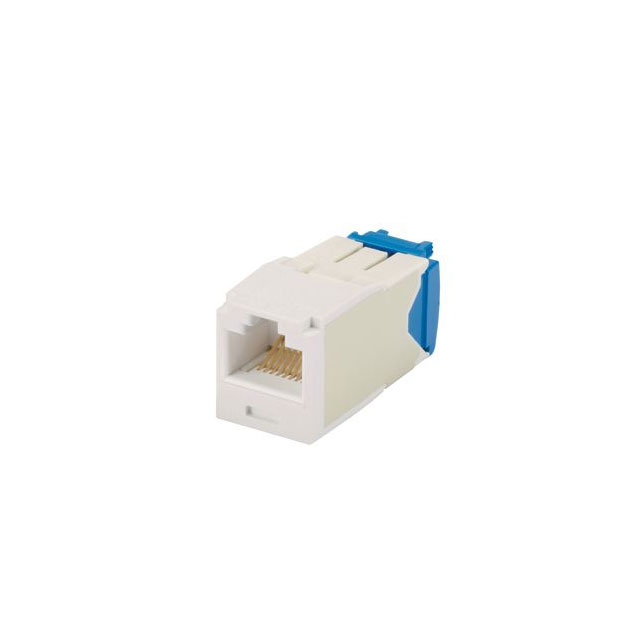

Panduit Corp CJ6X88TGEI	Acrylonitrile Butadiene Styrene (ABS)	65 °C	-10 °C	Jack	Phosphor Bronze	1	Panel Mount	8p8c (RJ45 Ethernet)	Straight	Up	Does Not Contain LED	Cat6a	IDC	Unshielded	1

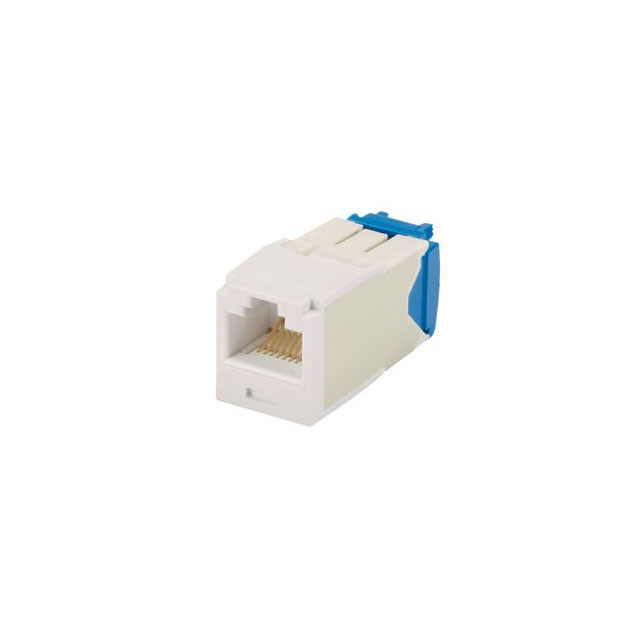

Panduit Corp CJ6X88TGWH-24	Polycarbonate (PC)	75 ░C	-10 °C	Jack	Phosphor Bronze	1	Panel Mount	8p8c (RJ45 Ethernet)	Straight	Up	Does Not Contain LED	Cat6a	IDC	Unshielded	1

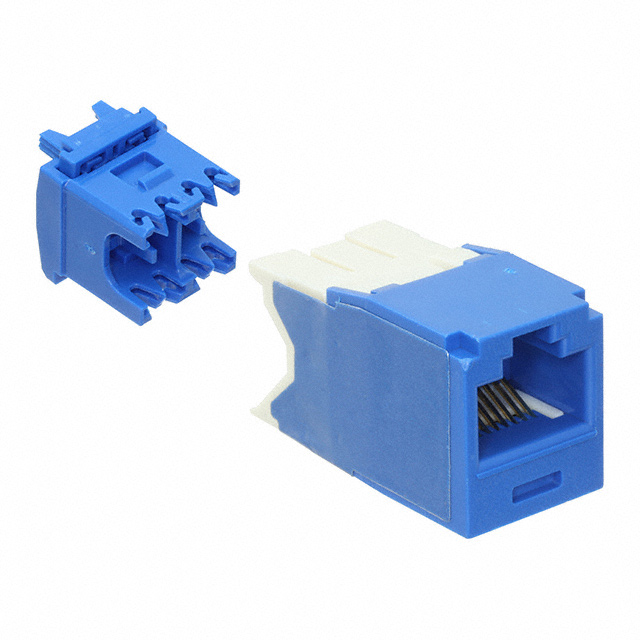

Panduit Corp CJ6X88TGBU-24	Polycarbonate (PC)	75 ░C	-10 °C	Jack	Phosphor Bronze	1	Panel Mount	8p8c (RJ45 Ethernet)	Straight	Up	Does Not Contain LED	Cat6a	IDC	Unshielded	1
