A63-112 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN JACK 1PORT 100 BASE-T PCB
| Part | Contact Finish Thickness | Contact Finish Thickness (string set options) | Contact Finish Thickness | Shield Material | Housing Material | LED Color | Mounting Type | Connector Type | Shielding | Termination | Operating Temperature (Max) | Operating Temperature (Min) | Number of Ports | Contact Finish | Orientation Angle | Orientation Direction | Contact Material | Number of Cores per Jack | Tab Direction | Number of Rows | Height Above Board | Features | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

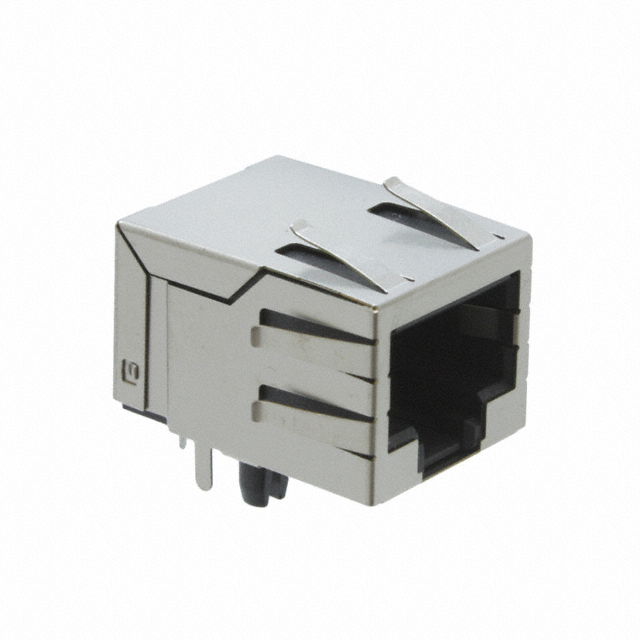

 EDAC Inc. | 0 | Flash | Flash | Copper Alloy | Thermoplastic | Does Not Contain LED | Through Hole | RJ45 | Shielded | Solder | 70 °C | 0 °C | 1 | Gold | 90 ° | Right | Copper Alloy | 4 | Down | 1 | 0.531 in | Board Lock | 10/100 Base-T AutoMDIX |

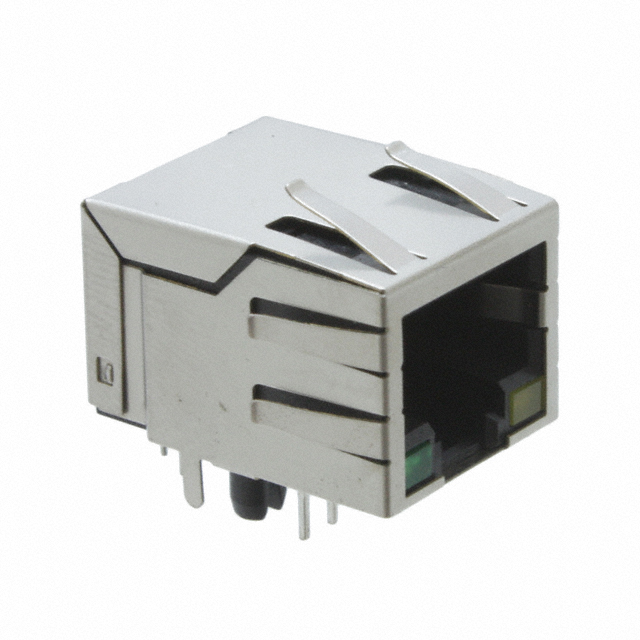

 EDAC Inc. | 0 | Flash | Flash | Copper Alloy | Thermoplastic | Green - Yellow | Through Hole | RJ45 | EMI Finger Shielded | Solder | 70 °C | 0 °C | 1 | Gold | 90 ° | Right | Copper Alloy | 4 | Down | 1 | 0.531 in | Board Lock | 10/100 Base-T AutoMDIX |
 EDAC Inc. | 0 | Flash | Flash | PBT Polybutylene Terephthalate Polyester | Does Not Contain LED | Through Hole | RJ45 | Shielded | Solder | 1 | Gold | 90 ° | Right | 4 | Down | 1 | Board Lock | 10/100 Base-T AutoMDIX |
