65203 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

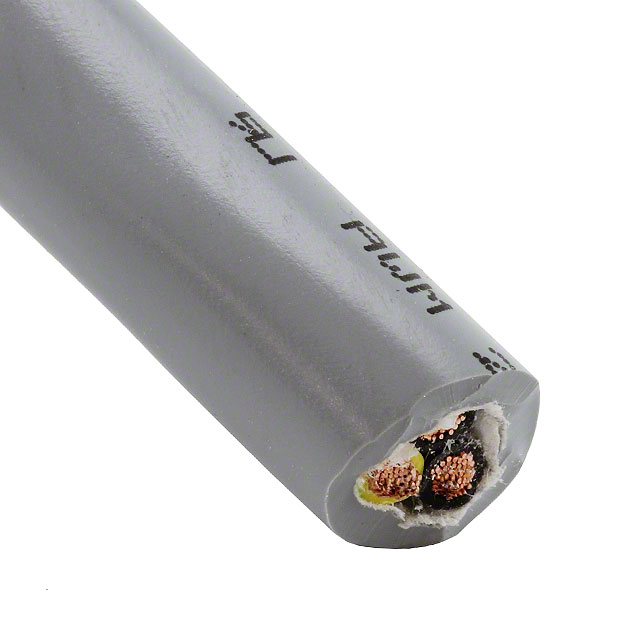

CABLE 3COND 12AWG SLATE 100'
| Part | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Cable Type | Jacket Color | Jacket (Insulation) Material | Conductor Insulation | Ratings | Features | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length [x] | Length [x] | Wire Gauge | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 3 | 0.436 in | 11.07 mm | Copper Bare | Multi-Conductor | Slate | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | ISO 10993 UL Style 2587 | Biological Compatibility | 30 AWG | 65 | 600 V | 1.702 mm | 0.067 in | 100 ft | 30.5 m | 12 AWG | ||
ALPHA WIRE | 3 | 0.436 in | 11.07 mm | Copper Bare | Multi-Conductor | Slate | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | ISO 10993 UL Style 2587 | Biological Compatibility | 30 AWG | 65 | 600 V | 1.702 mm | 0.067 in | 12 AWG | 152.4 m | 500 ft |
