SS11V Series
Manufacturer: KEMET
Beta
⌘K
COMMON MODE CHOKES / FILTERS 250VAC 1.1A 5MH
| Part | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Height (Max) [z] | Height (Max) [z] | Current Rating (Max) [Max] | Filter Type | Mounting Type | DC Resistance (DCR) (Max) [Max] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Number of Lines | Inductance @ Frequency | DC Resistance (DCR) (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

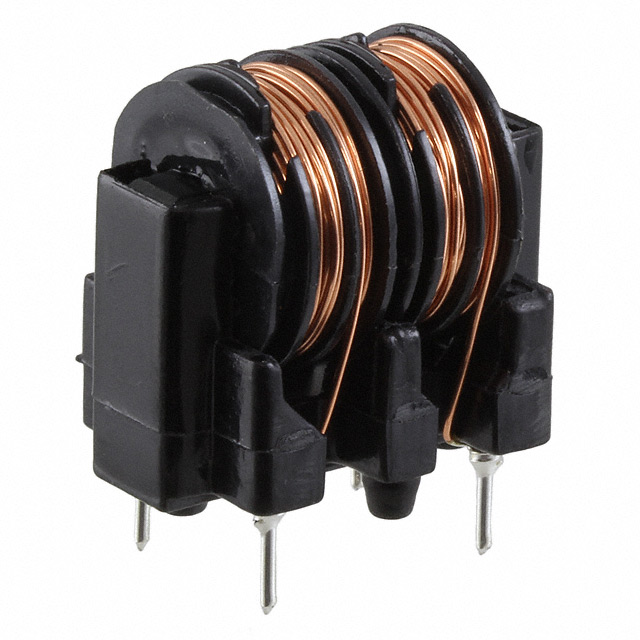

 KEMET | Vertical 4 PC Pin | 120 °C | -25 °C | 250 V | 22.5 mm | 0.886 in | 1.1 A | Power Line | Through Hole | 400 mOhm | 22 mm | 0.866 " | 0.571 " | 14.5 mm | 2 | 5 mH | |

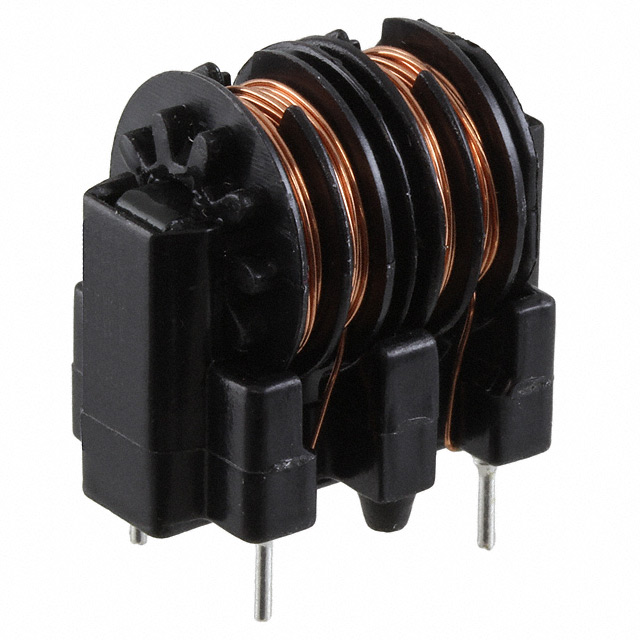

 KEMET | Vertical 4 PC Pin | 120 °C | -25 °C | 250 V | 22.5 mm | 0.886 in | 800 mA | Power Line | Through Hole | 22 mm | 0.866 " | 0.571 " | 14.5 mm | 2 | 1 kHz 12.5 mH | 740 mOhm |
