223JMV Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 32V

Part	Mechanical Life	Switch Travel	Contact Rating @ Voltage	Ingress Protection	Circuit	Outline [y]	Outline [x]	Illumination	Operating Force	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Termination Style	Features	Actuator Height off PCB, Vertical [z]	Mounting Type	Actuator Orientation	Switch Function

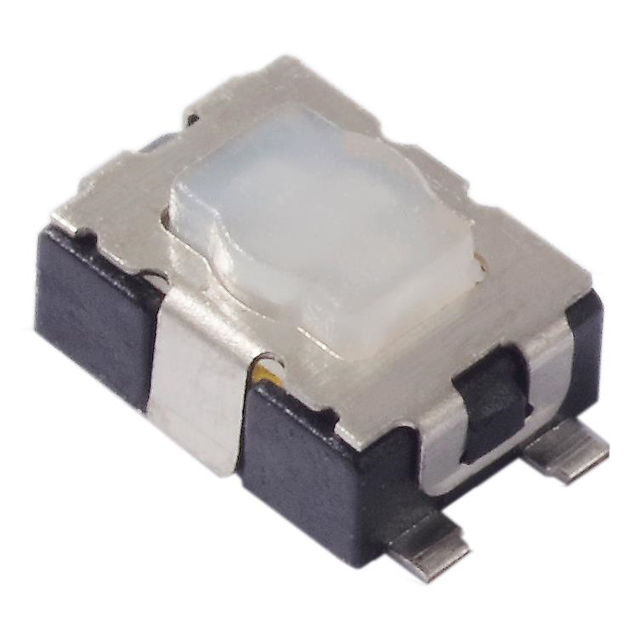

CTS Electrocomponents 223JMVAARG	150000 Cycles	0.25 mm	0.05 A 32 VDC	IP67 - Dust Tight Waterproof	SPST-NO	2.8 mm	4.2 mm	Non-Illuminated	300 gf	85 °C	-40 C	Rectangular Button	Gull Wing	Grounding Pin Tactile Feedback	1.9 mm	Surface Mount	Top Actuated	Off-Mom
CTS Electrocomponents 223JMVAAR	150000 Cycles	0.25 mm	0.05 A 32 VDC	IP67 - Dust Tight Waterproof	SPST-NO	2.8 mm	4.2 mm	Non-Illuminated	300 gf	85 °C	-40 C	Rectangular Button	Gull Wing	Tactile Feedback	1.9 mm	Surface Mount	Top Actuated	Off-Mom

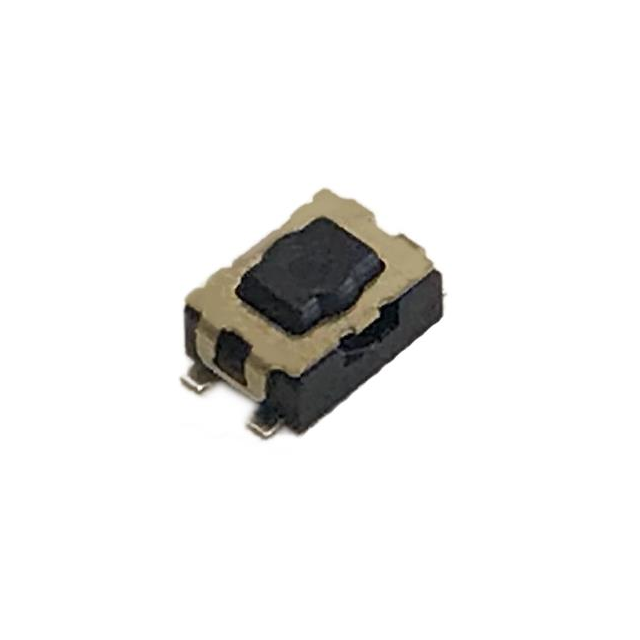

CTS Electrocomponents 223JMVABR	200000 Cycles	0.25 mm	0.05 A 32 VDC	IP67 - Dust Tight Waterproof	SPST-NO	2.8 mm	4.2 mm	Non-Illuminated	0.2 kgf	85 °C	-40 C	Rectangular Button	Gull Wing	Tactile Feedback	1.9 mm	Surface Mount	Top Actuated	Off-Mom
