WLL180T Series

Catalog

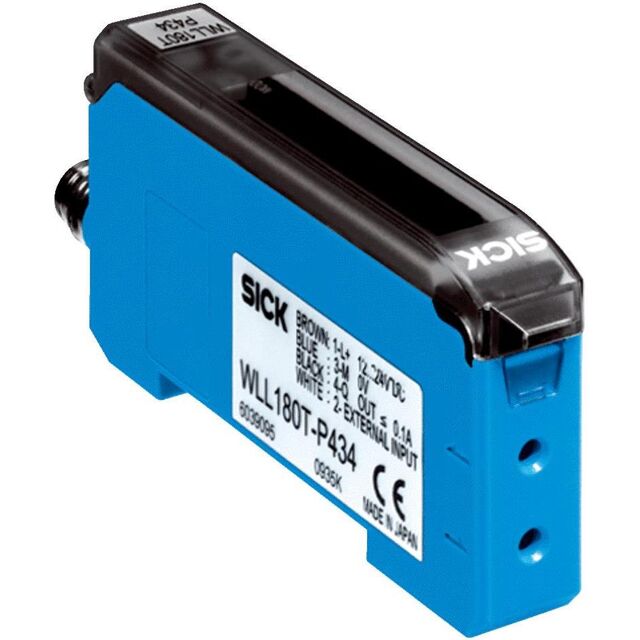

SENSOR FIBER OPTIC 20M NPN

Part	Cable Length	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Light Source Wavelength (Red)	Light Source	Connection Method	Sensing Method	Output Configuration	Response Time	Ingress Protection	Operating Temperature (Min)	Operating Temperature (Max)	Sensing Distance	Adjustment Type	Light Source Wavelength (Infrared)
SICK, Inc. 6050763	78.74 in	12 VDC	24 VAC	650 nm	Red	Cable	Fiber Optic	NPN	50 µs	IP50	-25 °C	55 °C	787.402 "	Adjustable
SICK, Inc. WLL180T-N474		12 VDC	24 VAC		Infrared	Connector M8	Fiber Optic	NPN	50 µs	IP50	-25 °C	55 °C	39.37 "	Adjustable	880 nm
SICK, Inc. WLL180T-F434		12 VDC	24 VAC	650 nm	Red	Connector M8	Fiber Optic	PNP	50 µs	IP50	-25 °C	55 °C	787.402 "	Adjustable
SICK, Inc. WLL180T-P434		12 VDC	24 VAC	650 nm	Red	Connector M8	Fiber Optic	PNP	50 µs	IP50	-25 °C	55 °C	787.402 "	Adjustable
SICK, Inc. 6039097	78.74 in	12 VDC	24 VAC	650 nm	Red	Cable	Fiber Optic	PNP	8 ms	IP50	-25 °C	55 °C	55.118 "	Adjustable
SICK, Inc. 6039100	78.74 in	12 VDC	24 VAC	650 nm	Red	Cable	Fiber Optic	NPN	50 µs	IP50	-25 °C	55 °C	787.402 "	Adjustable
SICK, Inc. 6039093	78.74 in	12 VDC	24 VAC	650 nm	Red	Cable	Fiber Optic	PNP	50 µs	IP50	-25 °C	55 °C	787.402 "	Adjustable
SICK, Inc. 6039099	78.74 in	12 VDC	24 VAC	650 nm	Red	Cable	Fiber Optic	NPN	8 ms	IP50	-25 °C	55 °C	55.118 "	Adjustable
SICK, Inc. WLL180T-N434		12 VDC	24 VAC	650 nm	Red	Connector M8	Fiber Optic	NPN	50 µs	IP50	-25 °C	55 °C	787.402 "	Adjustable
SICK, Inc. 6039101		12 VDC	24 VAC	650 nm	Red	Connector M8	Fiber Optic	PNP	50 µs	IP50	-25 °C	55 °C	787.402 "	Adjustable
