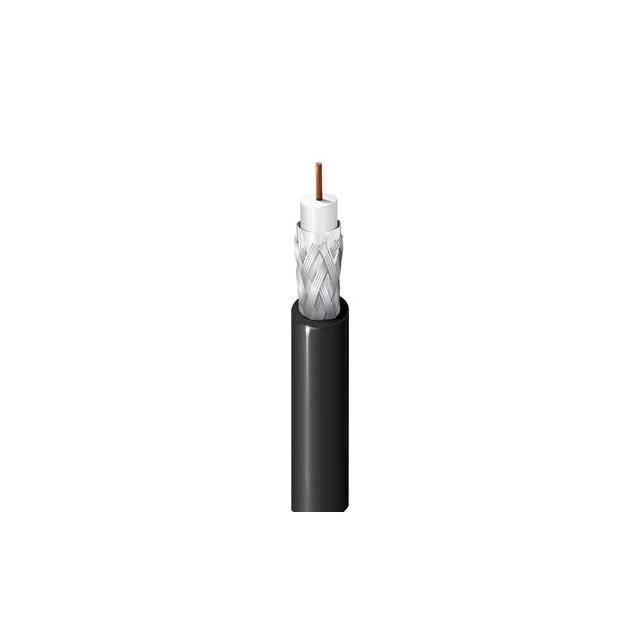

1523A Series
Manufacturer: Belden Inc.
Beta
⌘K
COAX 75 OHM RG11 14AWG
| Part | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Coverage [custom] | Dielectric Material | VoP, Velocity of Propagation | Conductor Material | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Usage | Impedance | Jacket (Insulation) Material | Wire Gauge | Jacket Color | Cable Group | Shield Type | Length [x] | Length [x] | Conductor Strand |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 0.28 in | 7.11 mm | 60 % 100 % | Foam Polyethylene (FPE) | 83 | Copper Coated Steel | Aluminum | 80 °C | -40 C | Coaxial | 0.393 in | 9.98 mm | CATV | 75 Ohms | Poly-Vinyl Chloride (PVC) | 14.5 AWG | Black | RG-11 | Braid Foil | 304.8 m | 1000 ft | Solid |
