DE11XRB Series

Catalog

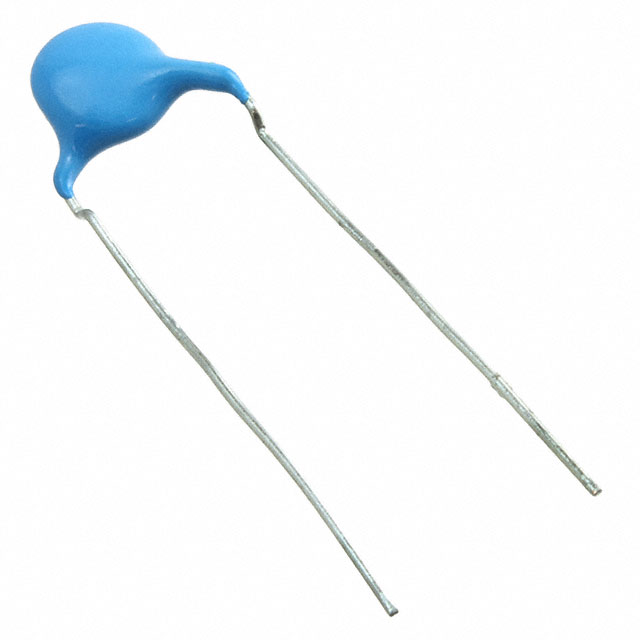

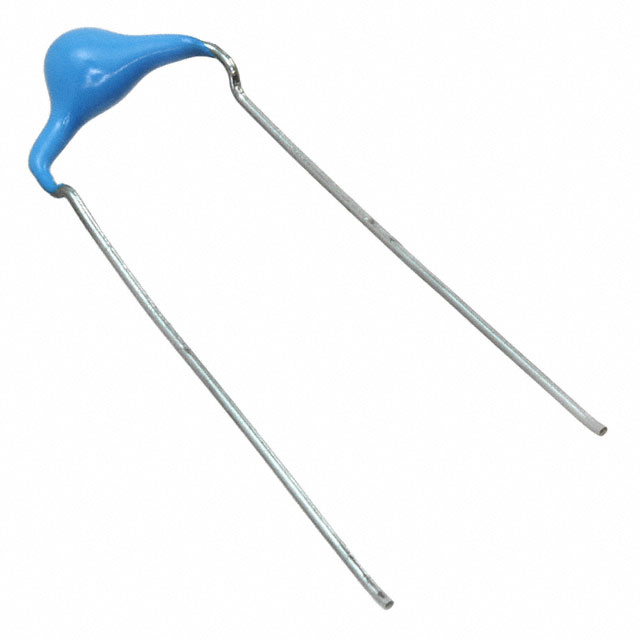

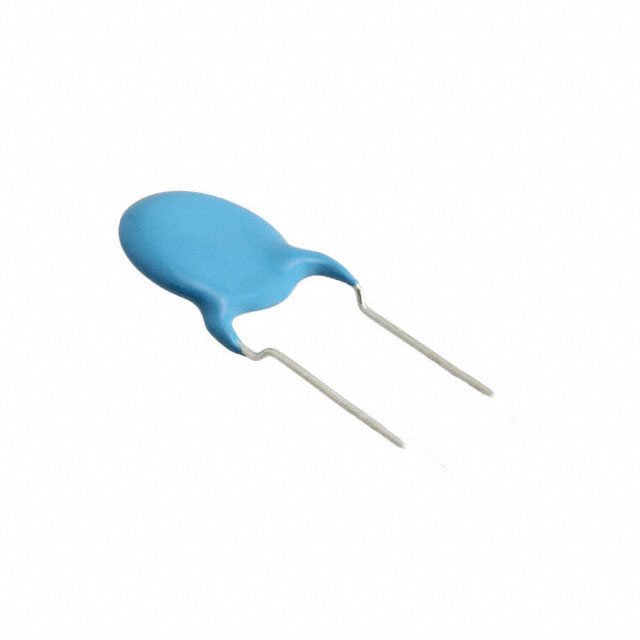

CAP CERAMIC SUPPRESSION X1/Y1 68PF 760VAC/500VAC SL 10%( 9 X 5MM) RADIAL DISC 10MM 125°C BULK

Part	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Lead Spacing	Lead Spacing	Lead Style	Capacitance	Ratings [custom]	Ratings [custom]	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Temperature Coefficient	Height - Seated (Max) [Max]	Height - Seated (Max)	Tolerance	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]
Murata Electronics DE11XRB680KA4BR01F	Disc Radial	Through Hole	125 °C	-40 C	0.394 in	10 mm	Straight	68 pF	X1	Y1	9 mm	0.354 in	Safety	SL	0.472 in	12 mm	10 %	500 VAC/DC
Murata Electronics DE11XRB100KJ4BR01F	Disc Radial	Through Hole	125 °C	-40 C	0.394 in	10 mm	Straight	10 pF	X1	Y1	8 mm	0.315 in	Safety	SL			10 %	500 VAC/DC	11 mm	0.433 in
Murata Electronics DE11XRB470KJ4BR01F	Disc Radial	Through Hole	125 °C	-40 C	0.394 in	10 mm	Straight	47 pF	X1	Y1	8 mm	0.315 in	Safety	SL			10 %	500 VAC/DC	11 mm	0.433 in
Murata Electronics DE11XRB330KN4AR01F	Disc Radial	Through Hole	125 °C	-40 C	0.394 in	10 mm	Straight	33 pF	X1	Y1	7 mm	0.276 in	Safety	SL	0.394 in		10 %	500 VAC/DC			10 mm
Murata Electronics DE11XRB220KJ4BR01F	Disc Radial	Through Hole	125 °C	-40 C	0.394 in	10 mm	Straight	22 pF	X1	Y1	6 mm	0.236 in	Safety	SL	0.354 in		10 %	500 VAC/DC			9 mm
Murata Electronics DE11XRB470KN4AR01F	Disc Radial	Through Hole	125 °C	-40 C	0.394 in	10 mm	Straight	47 pF	X1	Y1	8 mm	0.315 in	Safety	SL			10 %	500 VAC/DC	11 mm	0.433 in
