284391 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

TERM BLK 2POS SIDE ENT 3.5MM PCB

Part	Voltage	Mounting Type	Color	Screw Material - Plating	Positions Per Level	Features	Wire Termination	Wire Gauge [Min]	Wire Gauge [Max]	Clamp Material - Plating	Screw Thread	Contact Material - Plating [custom]	Number of Levels	Torque - Screw	Torque - Screw	Pitch [x]	Pitch [x]	Current	Mating Orientation

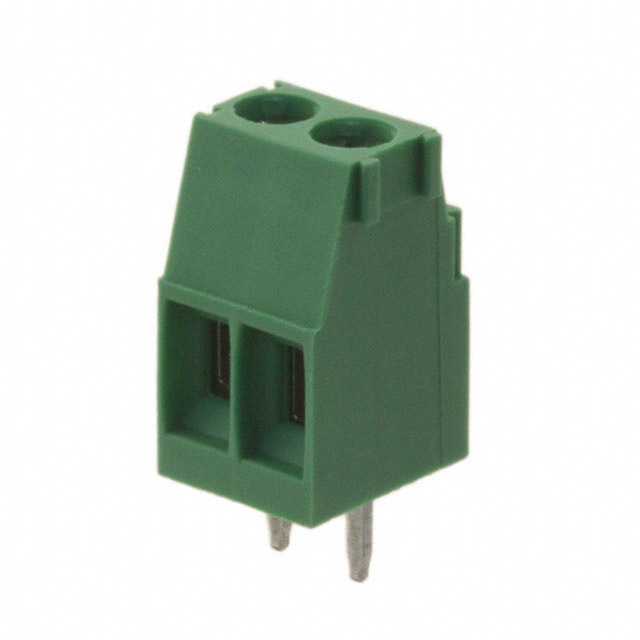

TE Connectivity Raychem Cable Protection 284391-2	300 V	Through Hole	Green	Brass - Nickel Plated	2	Interlocking (Side)	Screw - Rising Cage Clamp	14 AWG	30 AWG	Brass - Nickel Plated	M3	Brass - Tin Plated	1	2.2 Lb-In	0.25 Nm	3.5 mm	0.138 in	12 A	Horizontal with Board
TE Connectivity Raychem Cable Protection 284391-4	300 V	Through Hole	Green	Brass - Nickel Plated	4	Interlocking (Side)	Screw - Rising Cage Clamp	14 AWG	30 AWG	Brass - Nickel Plated	M3	Brass - Tin Plated	1	2.2 Lb-In	0.25 Nm	3.5 mm	0.138 in	12 A	Horizontal with Board
TE Connectivity Raychem Cable Protection 1-284391-6	300 V	Through Hole	Green	Brass - Nickel Plated	16	Interlocking (Side)	Screw - Rising Cage Clamp	14 AWG	30 AWG	Brass - Nickel Plated	M3	Brass - Tin Plated	1	2.2 Lb-In	0.25 Nm	3.5 mm	0.138 in	12 A	Horizontal with Board

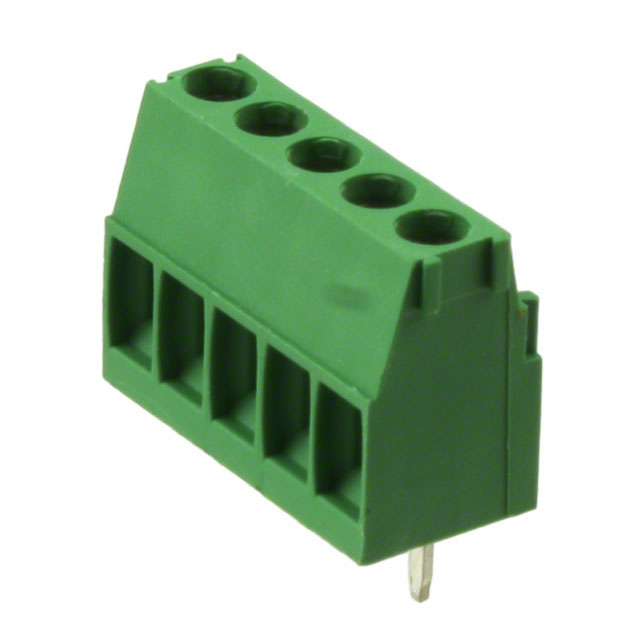

TE Connectivity Raychem Cable Protection 284391-5	300 V	Through Hole	Green	Brass - Nickel Plated	5	Interlocking (Side)	Screw - Rising Cage Clamp	14 AWG	30 AWG	Brass - Nickel Plated	M3	Brass - Tin Plated	1	2.2 Lb-In	0.25 Nm	3.5 mm	0.138 in	12 A	Horizontal with Board

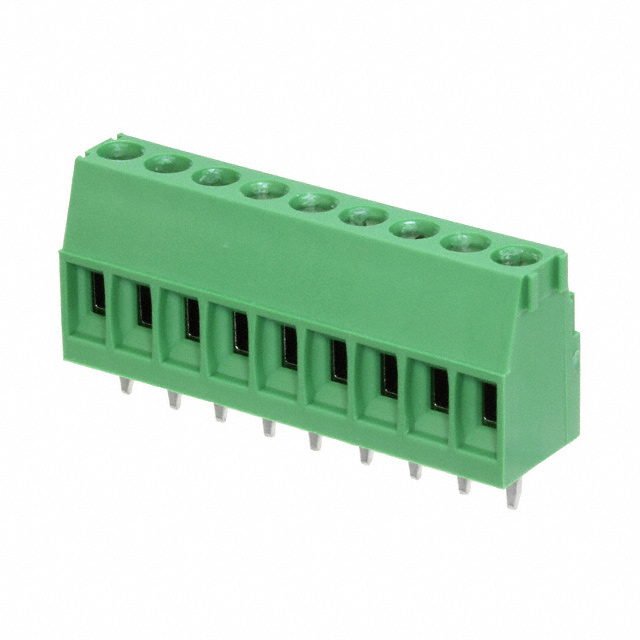

TE Connectivity Raychem Cable Protection 284391-9	300 V	Through Hole	Green	Brass - Nickel Plated	9	Interlocking (Side)	Screw - Rising Cage Clamp	14 AWG	30 AWG	Brass - Nickel Plated	M3	Brass - Tin Plated	1	2.2 Lb-In	0.25 Nm	3.5 mm	0.138 in	12 A	Horizontal with Board

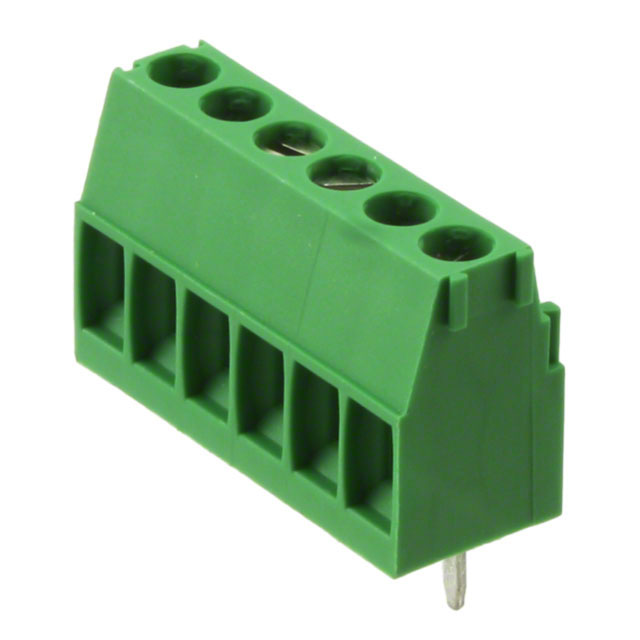

TE Connectivity Raychem Cable Protection 284391-6	300 V	Through Hole	Green	Brass - Nickel Plated	6	Interlocking (Side)	Screw - Rising Cage Clamp	14 AWG	30 AWG	Brass - Nickel Plated	M3	Brass - Tin Plated	1	2.2 Lb-In	0.25 Nm	3.5 mm	0.138 in	12 A	Horizontal with Board
