AUB0812 Series

Catalog

FAN AXIAL 80X25.4MM 12VDC

Part	Material - Frame	Current Rating (Amps)	Material - Blade	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Termination	Approval Agency	Air Flow	Air Flow	Static Pressure	Static Pressure	Voltage - Rated	Bearing Type	RPM	Size / Dimension [z]	Size / Dimension [x]	Fan Type	Width [y]	Weight	Weight	Operating Temperature [Min]	Operating Temperature [Max]	Noise	Power (Watts)	Features	Static Pressure

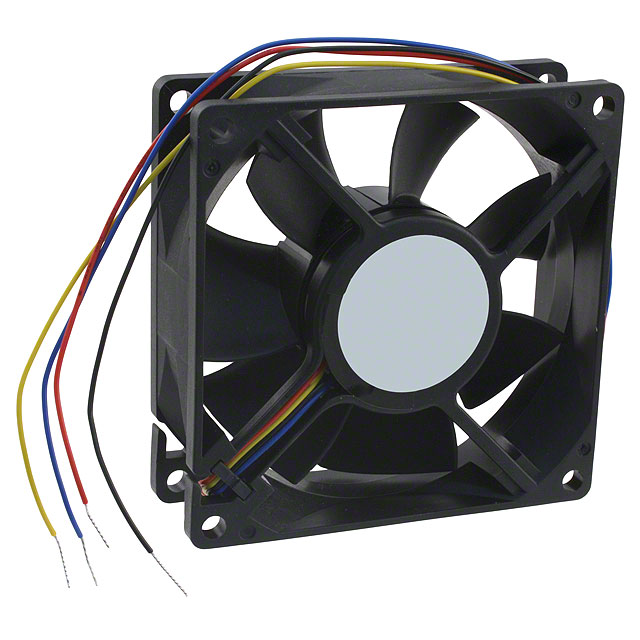

Delta Electronics AUB0812L-9X41	Plastic	0.09 A	Plastic	40 °C 50000 Hrs	10.8 VDC	13.8 VDC	4 Wire Leads	CE CSA UL VDE	27.9 CFM	0.781 m³/min	25.5 Pa	0.102 in H2O	12 VDC	Superflo	2400 RPM	80 mm	80 mm	Tubeaxial	25.4 mm	0.195 lb	88.45 g	-10 °C	60 °C	43 dB	1.08 W	Locked Rotor Protection PWM Control Speed Sensor (Tach)

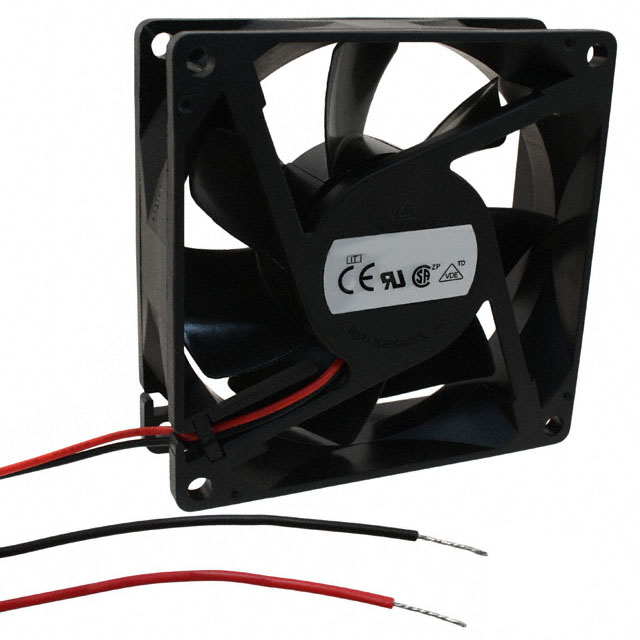

Delta Electronics AUB0812VH-AIT	Plastic	270 mA	Plastic	40 °C 50000 Hrs	7 V	13.8 VDC	2 Wire Leads	CE CSA UL VDE	46.6 CFM	1.3 m³/min		63.8 Pa	12 VDC	Superflo	3600 RPM	80 mm	80 mm	Tubeaxial	25.4 mm	0.195 lb	88.45 g	-10 °C	60 °C	39 dB(A)	3.24 W		0.256 in H2O
Delta Electronics AUB0812L-A	Plastic	110 mA	Plastic	40 °C 50000 Hrs	7 V	13.8 VDC	2 Wire Leads	CE CSA UL VDE	31.1 CFM	0.871 mł/min		29.4 Pa	12 VDC	Superflo	2400 RPM	80 mm	80 mm	Tubeaxial	25.4 mm	0.195 lb	88.45 g	-10 °C	60 °C	28 dB	1.32 W		0.118 in H2O

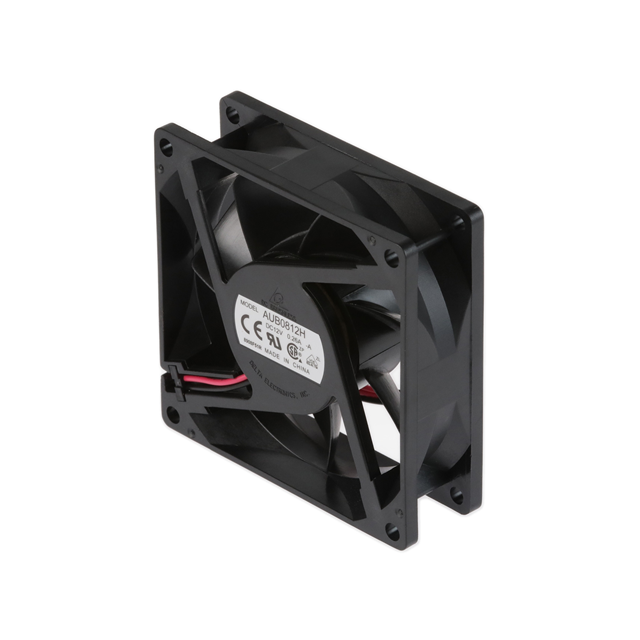

Delta Electronics AUB0812H-A	Plastic	0.18 A	Plastic	40 °C 50000 Hrs	7 V	13.8 VDC	2 Wire Leads	CE CSA UL VDE	38.8 CFM	1.09 m³/min		44.1 Pa	12 VDC	Superflo	3000 RPM	80 mm	80 mm	Tubeaxial	25.4 mm	0.195 lb	88.45 g	-10 °C	60 °C	34 dB(A)	2.16 W		0.177 in H2O
Delta Electronics AUB0812VH-AF00	Plastic	270 mA	Plastic	40 °C 50000 Hrs	7 V	13.8 VDC	3 Wire Leads		47 CFM	1.32 m³/min		63.8 Pa	12 VDC	Superflo	3600 RPM	80 mm	80 mm	Tubeaxial	25.4 mm			-10 °C	60 °C	39 dB(A)	3.24 W	Locked Rotor Protection Speed Sensor (Tach)	0.256 in H2O
Delta Electronics AUB0812VH-SP00	Plastic	190 mA	Plastic	40 °C 50000 Hrs	10.8 VDC	13.2 VDC	4 Wire Leads	CE CSA UL VDE	42 CFM	1.18 m³/min		54.1 Pa	12 VDC	Superflo	3600 RPM	80 mm	80 mm	Tubeaxial	25.4 mm	0.219 lb	99.34 g	-10 °C	60 °C	39 dB(A)	2.28 W	Locked Rotor Protection PWM Control Speed Sensor (Tach)	0.217 in H2O
Delta Electronics AUB0812HH-A	Plastic	0.21 A	Plastic	40 °C 50000 Hrs	7 V	13.8 VDC	2 Wire Leads	CE CSA UL VDE				51.6 Pa	12 VDC	Superflo	3250 RPM	80 mm	80 mm	Tubeaxial	25.4 mm	0.195 lb	88.45 g	-10 °C	60 °C	35.5 dB	2.52 W		0.207 in H2O
