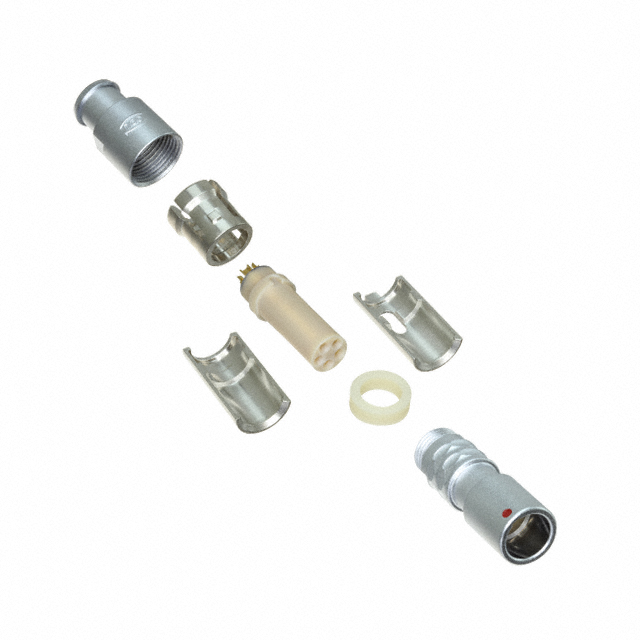

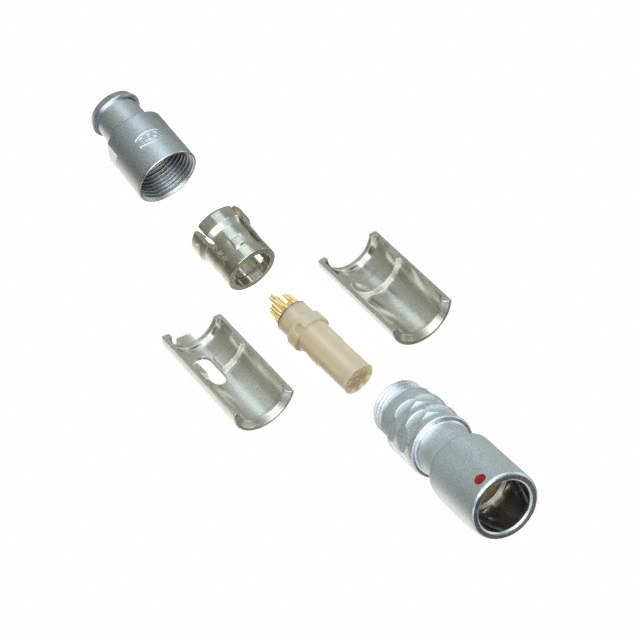

K20L0C-P Series

Manufacturer: ODU

Catalog

CONN RCPT FMALE 3P GOLD SLDR CUP

Part	Color	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Contact Material	Features	Primary Material	Shell Material	Cable Opening [Max]	Cable Opening [Min]	Ingress Protection	Connector Type	Contact Finish - Mating	Shell Finish	Shielding	Backshell Material, Plating	Current Rating (Amps)	Mounting Type	Applications	Voltage Rating	Termination	Number of Positions	Cable Opening	Cable Opening [Max]	Cable Opening [Min]
ODU K20L0C-P03LJG0-320S	Silver	Push-Pull	120 °C	-40 C	Polyetheretherketone (PEEK)	Brass	Backshell Strain Relief	Metal	Brass	0.126 in 3.2 mm	0.079 in 2 mm	IP50 - Dust Protected	Receptacle Female Sockets	Gold	Chrome over Nickel	Shielded	Brass Chrome over Nickel	7.5 A	Free Hanging (In-Line)	Industrial Medical Military Testing Equipment & Measurement
ODU K20L0C-P02NJH0-420S	Silver	Push-Pull	120 °C	-40 C	Polyetheretherketone (PEEK)	Brass	Backshell Strain Relief	Metal	Brass			IP50 - Dust Protected	Receptacle Female Sockets	Gold	Chrome over Nickel	Unshielded	Brass Chrome over Nickel	10 A	Free Hanging (In-Line)	Industrial Medical Military Testing Equipment & Measurement	366 V	Crimp	2
ODU K20L0C-P03LJG0-420S	Silver	Push-Pull	120 °C	-40 C	Polyetheretherketone (PEEK)	Brass	Backshell Strain Relief	Metal	Brass			IP50 - Dust Protected	Receptacle Female Sockets	Gold	Chrome over Nickel		Brass Chrome over Nickel	7.5 A	Free Hanging (In-Line)	Industrial Medical Military Testing Equipment & Measurement
ODU K20L0C-P04NFG0-420S	Silver	Push-Pull	120 °C	-40 C	Polyetheretherketone (PEEK)	Brass	Backshell Strain Relief	Metal	Brass			IP50 - Dust Protected	Receptacle Female Sockets	Gold	Chrome over Nickel	Unshielded	Brass Chrome over Nickel	7.5 A	Free Hanging (In-Line)	Industrial Medical Military Testing Equipment & Measurement	300 VDC	Crimp	4
ODU K20L0C-P07LCC0-320S	Silver	Push-Pull	120 °C	-40 C	Polyetheretherketone (PEEK)	Brass	Backshell Strain Relief	Metal	Brass	0.126 in 3.2 mm	0.079 in 2 mm	IP50 - Dust Protected	Receptacle Female Sockets	Gold	Chrome over Nickel	Shielded	Brass Chrome over Nickel	4 A	Free Hanging (In-Line)	Industrial Medical Military Testing Equipment & Measurement			7
ODU K20L0C-P05NFG0-520S	Silver	Push-Pull	120 °C	-40 C	Polyetheretherketone (PEEK)	Brass	Backshell Strain Relief	Metal	Brass	0.205 in	0.157 in	IP50 - Dust Protected	Receptacle Female Sockets	Gold	Chrome over Nickel	Unshielded	Brass Chrome over Nickel	7.5 A	Free Hanging (In-Line)	Industrial Medical Military Testing Equipment & Measurement	200 V	Crimp	5	4 mm 5.2 mm
ODU K20L0C-P03LJG0-520S	Silver	Push-Pull	120 °C	-40 C	Polyetheretherketone (PEEK)	Brass	Backshell Strain Relief	Metal	Brass	0.205 in	0.157 in	IP50 - Dust Protected	Receptacle Female Sockets	Gold	Chrome over Nickel		Brass Chrome over Nickel	7.5 A	Free Hanging (In-Line)	Industrial Medical Military Testing Equipment & Measurement				4 mm 5.2 mm
ODU K20L0C-P06LCC0-220S	Silver	Push-Pull	120 °C	-40 C	Polyetheretherketone (PEEK)	Brass	Backshell Strain Relief	Metal	Brass	0.087 " 2.2 mm	0.059 " 1.5 mm	IP50 - Dust Protected	Receptacle Female Sockets	Gold	Chrome over Nickel	Shielded	Brass Chrome over Nickel	4 A	Free Hanging (In-Line)	Industrial Medical Military Testing Equipment & Measurement			6
ODU K20L0C-P05LFG0-520S	Silver	Push-Pull	120 °C	-40 C	Polyetheretherketone (PEEK)	Brass	Backshell Strain Relief	Metal	Brass	0.205 in	0.157 in	IP50 - Dust Protected	Receptacle Female Sockets	Gold	Chrome over Nickel		Brass Chrome over Nickel	7.5 A	Free Hanging (In-Line)	Industrial Medical Military Testing Equipment & Measurement			5	4 mm 5.2 mm
ODU K20L0C-P02NJH0-560S	Silver	Push-Pull	120 °C	-40 C	Polyetheretherketone (PEEK)	Brass	Backshell Strain Relief	Metal	Brass	0.22 in	0.197 in	IP50 - Dust Protected	Receptacle Female Sockets	Gold	Chrome over Nickel	Unshielded	Brass Chrome over Nickel	10 A	Free Hanging (In-Line)	Industrial Medical Military Testing Equipment & Measurement	366 V	Crimp	2		5.6 mm	5 mm
