TL1240 Series

Manufacturer: E-Switch

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Actuator Material	Switch Travel	Mechanical Life	Illumination	Illumination Type, Color	Termination Style	Actuator Orientation	Operating Force	Switch Function	Illumination Voltage (Nominal)	Operating Temperature [Min]	Operating Temperature [Max]	Outline [x]	Outline [y]	Mounting Type	Circuit	Contact Rating @ Voltage	Actuator Height off PCB, Vertical [z]	Actuator Type
E-Switch TL1240REDQ2JRED	Polybutylene Terephthalate (PBT)	0.25 mm	100000 Cycles	Illuminated	LED Red	PC Pin	Top Actuated	160 gf	Off-Mom	2.3 VDC	-20 ░C	70 °C	6 mm	6 mm	Through Hole	SPST-NO	0.05 A 12 VDC	8.2 mm	Square Button

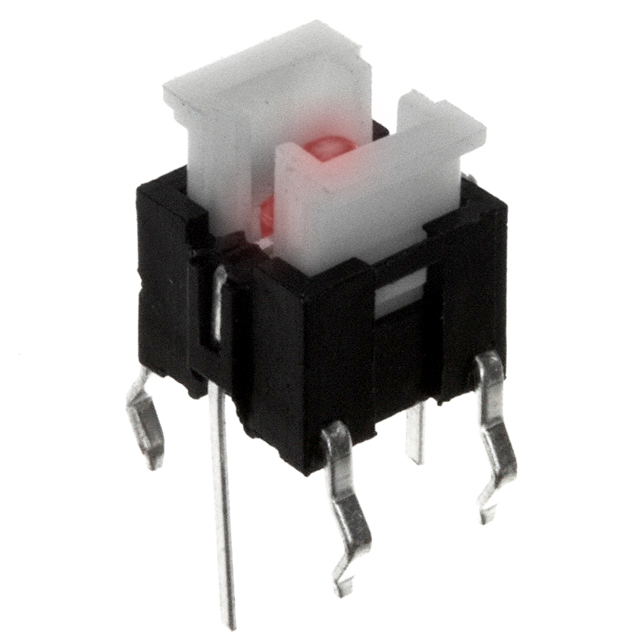

E-Switch TL1240RQ	Polybutylene Terephthalate (PBT)	0.25 mm	100000 Cycles	Illuminated	LED Red	PC Pin	Top Actuated	160 gf	Off-Mom	2.3 VDC	-20 ░C	70 °C	6 mm	6 mm	Through Hole	SPST-NO	0.05 A 12 VDC	7.2 mm	Plunger for Cap
E-Switch TL1240NF160Q	Polybutylene Terephthalate (PBT)	0.25 mm	100000 Cycles	Non-Illuminated		PC Pin	Top Actuated	160 gf	Off-Mom		-20 ░C	70 °C	6 mm	6 mm	Through Hole	SPST-NO	0.05 A 12 VDC	7.2 mm	Plunger for Cap
E-Switch TL1240YQ2JRED	Polybutylene Terephthalate (PBT)	0.25 mm	100000 Cycles	Illuminated	LED Yellow	PC Pin	Top Actuated	160 gf	Off-Mom	2.8 VDC	-20 ░C	70 °C	6 mm	6 mm	Through Hole	SPST-NO	0.05 A 12 VDC	8.2 mm	Square Button

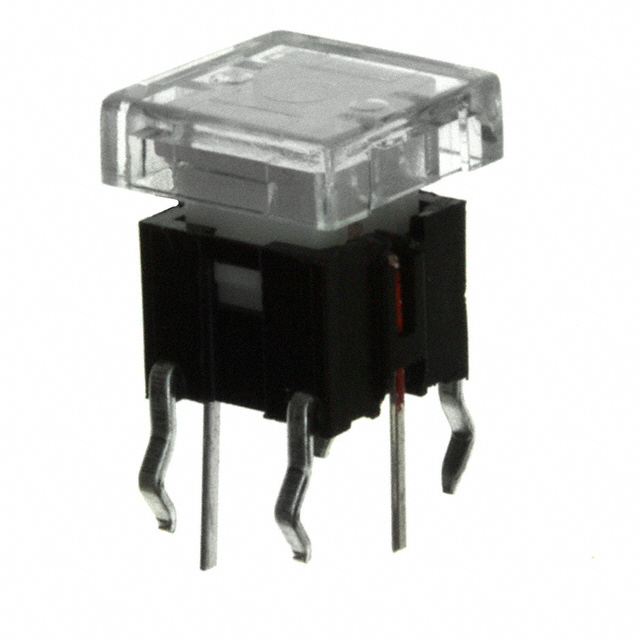

E-Switch TL1240RQ1JCLR	Polybutylene Terephthalate (PBT)	0.25 mm	100000 Cycles	Illuminated	LED Red	PC Pin	Top Actuated	160 gf	Off-Mom	2.3 VDC	-20 ░C	70 °C	6 mm	6 mm	Through Hole	SPST-NO	0.05 A 12 VDC	8.2 mm	Square Button

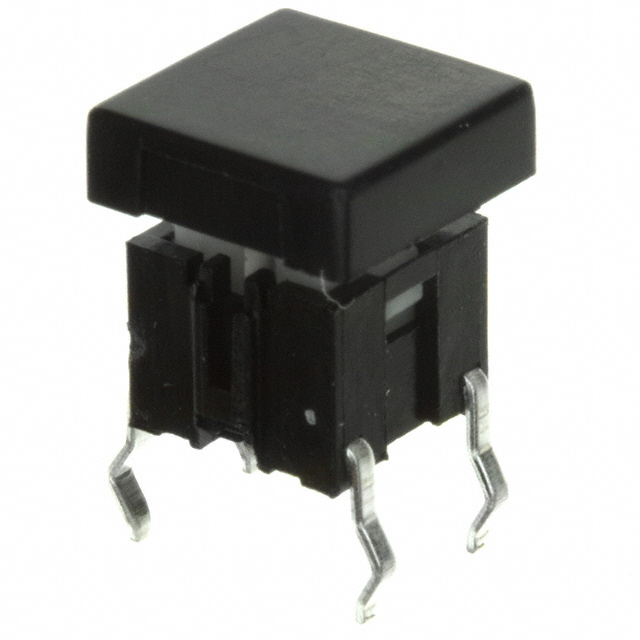

E-Switch TL1240NQ1JBLK	Polybutylene Terephthalate (PBT)	0.25 mm	100000 Cycles	Non-Illuminated		PC Pin	Top Actuated	160 gf	Off-Mom		-20 ░C	70 °C	6 mm	6 mm	Through Hole	SPST-NO	0.05 A 12 VDC	8.2 mm	Square Button
E-Switch TL1240GQ2JRED	Polybutylene Terephthalate (PBT)	0.25 mm	100000 Cycles	Illuminated	Green LED	PC Pin	Top Actuated	160 gf	Off-Mom	2.8 VDC	-20 ░C	70 °C	6 mm	6 mm	Through Hole	SPST-NO	0.05 A 12 VDC	8.2 mm	Square Button

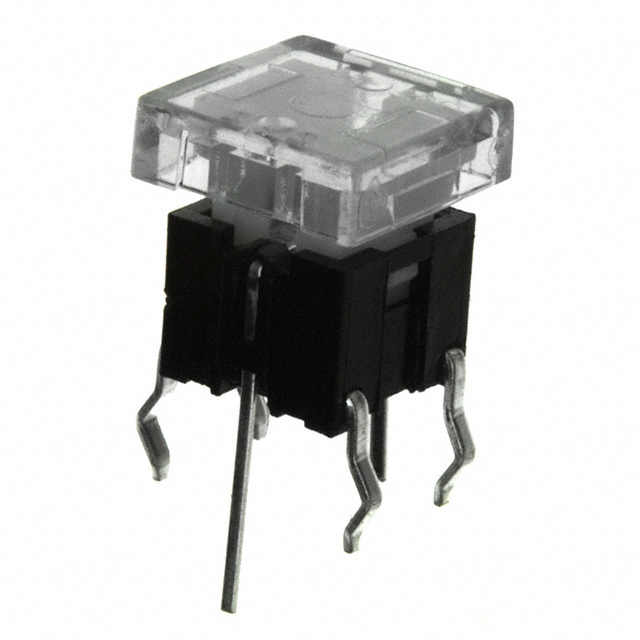

E-Switch TL1240YQ1JCLR	Polybutylene Terephthalate (PBT)	0.25 mm	100000 Cycles	Illuminated	LED Yellow	PC Pin	Top Actuated	160 gf	Off-Mom	2.8 VDC	-20 ░C	70 °C	6 mm	6 mm	Through Hole	SPST-NO	0.05 A 12 VDC	8.2 mm	Square Button

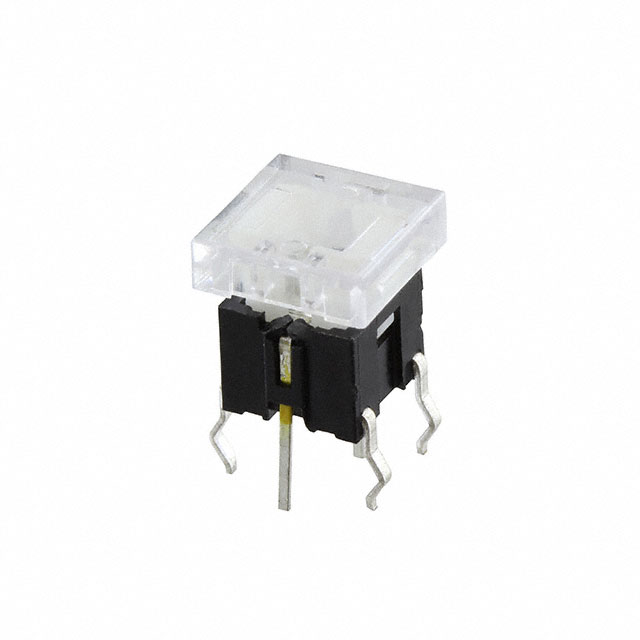

E-Switch TL1240BQ1JCLR	Polybutylene Terephthalate (PBT)	0.25 mm	100000 Cycles	Illuminated	Blue LED	PC Pin	Top Actuated	160 gf	Off-Mom	4.2 VDC	-20 ░C	70 °C	6 mm	6 mm	Through Hole	SPST-NO	0.05 A 12 VDC	8.2 mm	Square Button

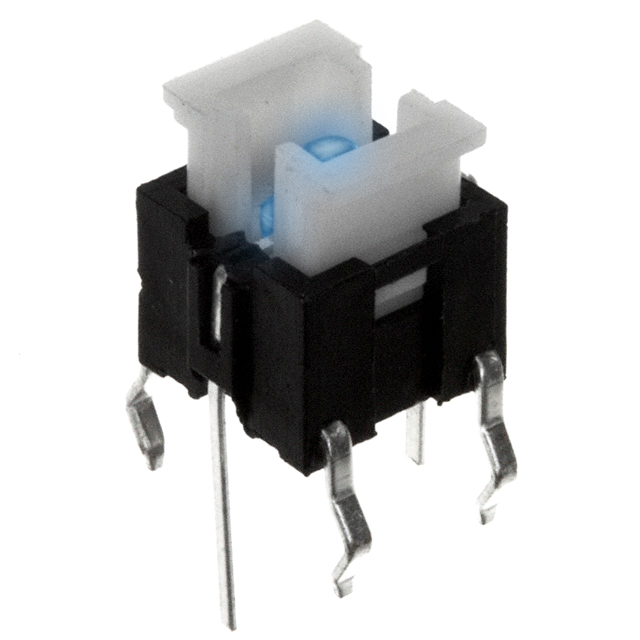

E-Switch TL1240BQ	Polybutylene Terephthalate (PBT)	0.25 mm	100000 Cycles	Illuminated	Blue LED	PC Pin	Top Actuated	160 gf	Off-Mom	4.2 VDC	-20 ░C	70 °C	6 mm	6 mm	Through Hole	SPST-NO	0.05 A 12 VDC	7.2 mm	Plunger for Cap
