TE3-1A Series
Manufacturer: Switch Components
Beta
⌘K
SWITCH: TOGGLE; POS: 2; SPST; ON-OFF; 20A/12VDC; LEADS: CONNECTORS
| Part | Electrical Life | Actuator Material | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Termination Style | Bushing Thread | Voltage Rating - DC | Current Rating (Amps) | Actuator Length [x] | Actuator Type | Circuit | Switch Function | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

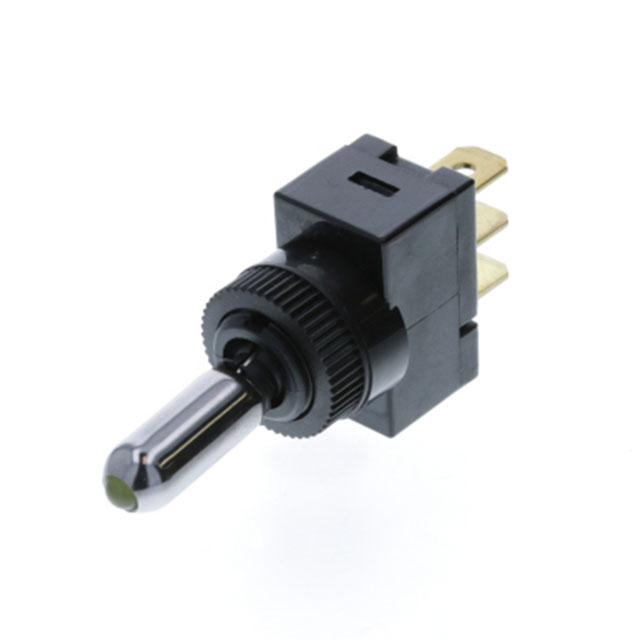

 Switch Components | 6000 Cycles | Polyamide (PA) Nylon | 85 °C | -25 °C | Panel Mount | Quick Connect - 0.250" (6.3mm) | M12 x 1 | 12 V | 20 A | 19.3 mm | Standard Round | SPST | On-Off | Illuminated | Amber LED | 12 VDC | 12.2 mm Dia |

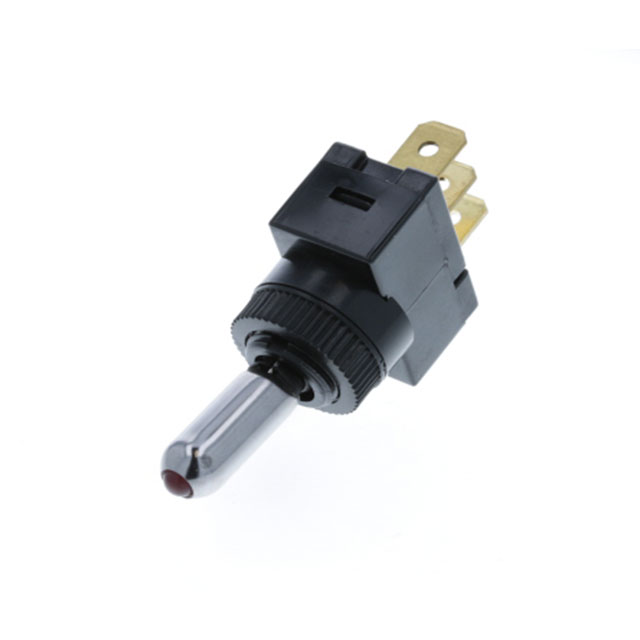

 Switch Components | 6000 Cycles | Polyamide (PA) Nylon | 85 °C | -25 °C | Panel Mount | Quick Connect - 0.250" (6.3mm) | M12 x 1 | 12 V | 20 A | 19.3 mm | Standard Round | SPST | On-Off | Illuminated | LED Red | 12 VDC | 12.2 mm Dia |
 Switch Components | 6000 Cycles | Polyamide (PA) Nylon | 85 °C | -25 °C | Panel Mount | Quick Connect - 0.250" (6.3mm) | M12 x 1 | 12 V | 20 A | 19.3 mm | Standard Round | SPST | On-Off | Illuminated | Blue LED | 12 VDC | 12.2 mm Dia |

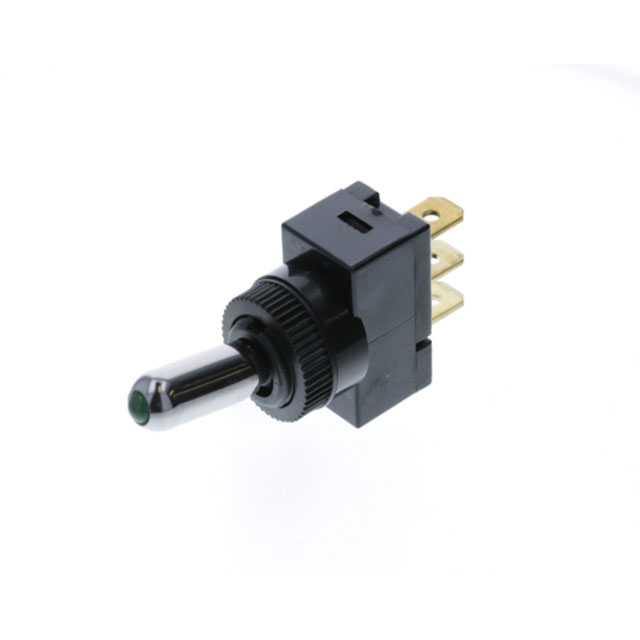

 Switch Components | 6000 Cycles | Polyamide (PA) Nylon | 85 °C | -25 °C | Panel Mount | Quick Connect - 0.250" (6.3mm) | M12 x 1 | 12 V | 20 A | 19.3 mm | Standard Round | SPST | On-Off | Illuminated | Green LED | 12 VDC | 12.2 mm Dia |
