SSR10HS Series

Manufacturer: KEMET

Catalog

CMC 26.5MH 700MA 2LN TH

Part	Package / Case	Inductance @ Frequency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	DC Resistance (DCR) (Max)	Height (Max) [z]	Height (Max) [z]	Current Rating (Max) [Max]	Number of Lines	DC Resistance (DCR) (Max) [Max]

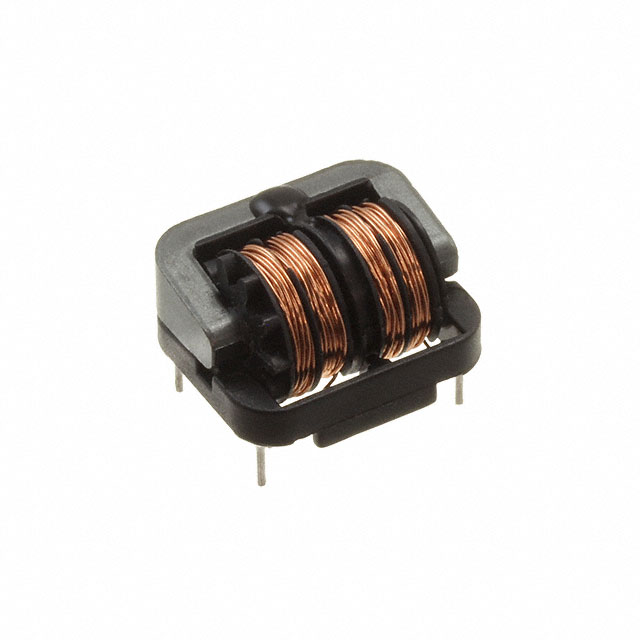

KEMET SSR10HS-07265	Vertical 4 PC Pin	26.5 mH	0.866 "	16 mm	0.63 "	22 mm	250 V	120 °C	-25 °C	Through Hole	850 mOhm	0.531 in	13.5 mm	700 mA	2
KEMET SSR10HS-05495	Vertical 4 PC Pin	49.5 mH	0.866 "	16 mm	0.63 "	22 mm	250 V	120 °C	-25 °C	Through Hole		0.531 in	13.5 mm	500 mA	2	1.6 Ohm
KEMET SSR10HS-08180	Vertical 4 PC Pin	18 mH	0.866 "	16 mm	0.63 "	22 mm	250 V	120 °C	-25 °C	Through Hole	600 mOhm	0.531 in	13.5 mm	800 mA	2
