92634 Series

Catalog

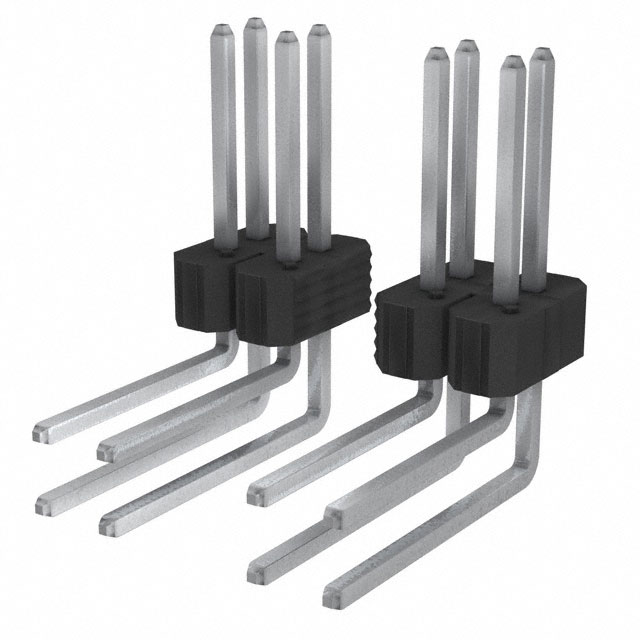

CONN HEADER R/A 72POS 2.54MM

Part	Contact Length - Post	Contact Length - Post	Fastening Type	Mounting Type	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Length - Mating [x]	Contact Length - Mating [x]	Number of Positions Loaded	Connector Type	Material Flammability Rating	Shrouding	Termination	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Number of Positions	Contact Finish - Mating	Number of Rows	Contact Type	Current Rating (Amps)	Voltage Rating	Contact Finish - Post	Number of Positions
Amphenol ICC (FCI) 92634-172	0.318 in	8.08 mm	Push-Pull	Through Hole Right Angle	4.83 mm	0.19 in	0.1 in	2.54 mm	Square	0.318 "	8.08 mm	All	Header	UL94 V-0	Unshrouded	Solder	Black	30 Áin	0.76 Ám	2.54 mm	0.1 in	Phosphor Bronze	72	Gold or Gold GXT™	2	Male Pin
Amphenol ICC (FCI) 92634-572	0.318 in	8.08 mm	Push-Pull	Through Hole Right Angle	4.83 mm	0.19 in	0.1 in	2.54 mm	Square	0.318 "	8.08 mm	All	Header	UL94 V-0	Unshrouded	Solder	Black	15 µin	0.38 µm	2.54 mm	0.1 in	Phosphor Bronze	72	Gold or Gold GXT™	2	Male Pin
Amphenol ICC (FCI) 92634-170HLF	0.318 in	8.08 mm	Push-Pull	Through Hole Right Angle	4.83 mm	0.19 in	0.1 in	2.54 mm	Square	0.318 "	8.08 mm	All	Header	UL94 V-0	Unshrouded	Solder	Black	30 Áin	0.76 Ám	2.54 mm	0.1 in	Phosphor Bronze	70	Gold or Gold GXT™	2	Male Pin	5 A	110 VDC
Amphenol ICC (FCI) 92634-106HLF	0.318 in	8.08 mm	Push-Pull	Through Hole Right Angle	4.83 mm	0.19 in	0.1 in	2.54 mm	Square	0.318 "	8.08 mm	All	Header	UL94 V-0	Unshrouded	Solder	Black	30 Áin	0.76 Ám	2.54 mm	0.1 in	Phosphor Bronze	6	Gold or Gold GXT™	2	Male Pin	5 A	110 VDC
Amphenol ICC (FCI) 92634-460HLF	0.318 in	8.08 mm	Push-Pull	Through Hole Right Angle	4.83 mm	0.19 in	0.1 in	2.54 mm	Square	0.318 "	8.08 mm	All	Header	UL94 V-0	Unshrouded	Solder	Black	100 çin	2.54 çm	2.54 mm	0.1 in	Phosphor Bronze	60		2	Male Pin	5 A	110 VDC	Tin
Amphenol ICC (FCI) 92634-468HLF	0.318 in	8.08 mm	Push-Pull	Through Hole Right Angle	4.83 mm	0.19 in	0.1 in	2.54 mm	Square	0.318 "	8.08 mm	All	Header	UL94 V-0	Unshrouded	Solder	Black	100 çin	2.54 çm	2.54 mm	0.1 in	Phosphor Bronze	68		2	Male Pin	5 A	110 VDC	Tin
Amphenol ICC (FCI) 92634-142HLF	0.318 in	8.08 mm	Push-Pull	Through Hole Right Angle	4.83 mm	0.19 in	0.1 in	2.54 mm	Square	0.318 "	8.08 mm	All	Header	UL94 V-0	Unshrouded	Solder	Black	30 Áin	0.76 Ám	2.54 mm	0.1 in	Phosphor Bronze	42	Gold or Gold GXT™	2	Male Pin	5 A	110 VDC
Amphenol ICC (FCI) 92634-116HLF	0.318 in	8.08 mm	Push-Pull	Through Hole Right Angle	4.83 mm	0.19 in	0.1 in	2.54 mm	Square	0.318 "	8.08 mm	All	Header	UL94 V-0	Unshrouded	Solder	Black	30 Áin	0.76 Ám	2.54 mm	0.1 in	Phosphor Bronze		Gold or Gold GXT™	2	Male Pin	5 A	110 VDC		16
Amphenol ICC (FCI) 92634-438HLF	0.318 in	8.08 mm	Push-Pull	Through Hole Right Angle	4.83 mm	0.19 in	0.1 in	2.54 mm	Square	0.318 "	8.08 mm	All	Header	UL94 V-0	Unshrouded	Solder	Black	100 çin	2.54 çm	2.54 mm	0.1 in	Phosphor Bronze	38		2	Male Pin	5 A	110 VDC	Tin
Amphenol ICC (FCI) 92634-452HLF	0.318 in	8.08 mm	Push-Pull	Through Hole Right Angle	4.83 mm	0.19 in	0.1 in	2.54 mm	Square	0.318 "	8.08 mm	All	Header	UL94 V-0	Unshrouded	Solder	Black	100 çin	2.54 çm	2.54 mm	0.1 in	Phosphor Bronze	52		2	Male Pin	5 A	110 VDC	Tin
