V7-1C2 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SWITCH SNAP ACT SPST-NO 15A 125V

Part	Electrical Life	Pretravel	Pretravel	Operating Position	Operating Position	Current Rating (Amps)	Termination Style	Operating Force	Switch Function	Voltage Rating - DC	Voltage Rating - AC	Differential Travel [x]	Differential Travel [x]	Release Force	Mechanical Life	Actuator Type	Mounting Type	Overtravel [custom]	Overtravel [custom]	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Differential Travel	Differential Travel	Operating Position [x]	Operating Position [x]	Differential Travel

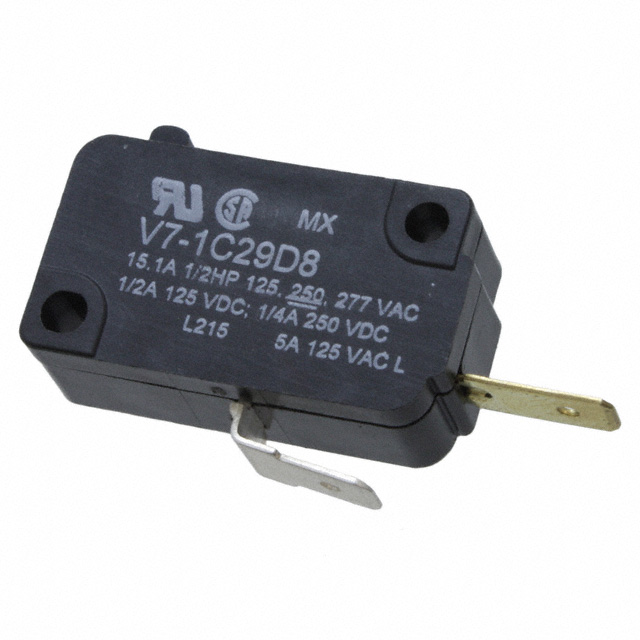

Honeywell Sensing and Productivity Solutions V7-1C29D8	100000 Cycles	1.2 mm	0.047 in	14.7 mm	0.579 in	15 A 500 mA	Quick Connect	150 gf	Off-Mom	125 VDC	125 V	0.01 in	0.25 mm	25 gf	10000000 Cycles	Round (Pin Plunger)	Chassis Mount	1.27 mm	0.05 "	SPST-NO	85 °C	-40 C

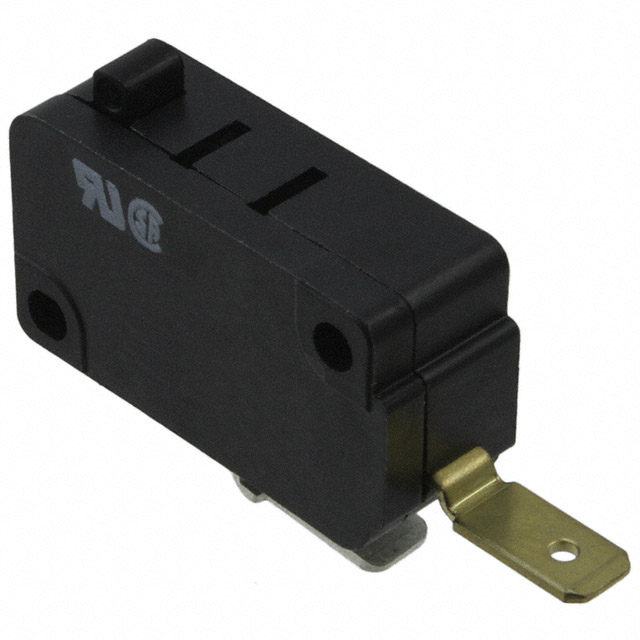

Honeywell Sensing and Productivity Solutions V7-1C29E7	100000 Cycles	1.2 mm	0.047 in	14.7 mm	0.579 in	15 A 500 mA	Quick Connect	150 gf	Off-Mom	125 VDC	125 V	0.01 in	0.25 mm	25 gf	10000000 Cycles	Round (Pin Plunger)	Chassis Mount	1.27 mm	0.05 "	SPST-NO	85 °C	-40 C

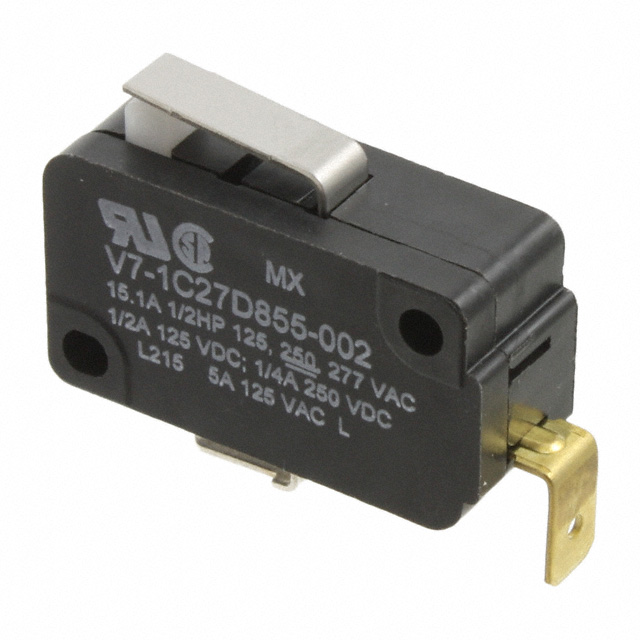

Honeywell Sensing and Productivity Solutions V7-1C27D855-002	100000 Cycles	1.5 mm	0.06 in	15.2 mm	0.6 in	15 A 500 mA	Quick Connect	160 gf	Off-Mom	125 VDC	125 V			15 gf	10000000 Cycles	Lever Straight	Chassis Mount	0.9 mm	0.035 "	SPST-NO	85 °C	-40 C	0.015 in	0.38 mm

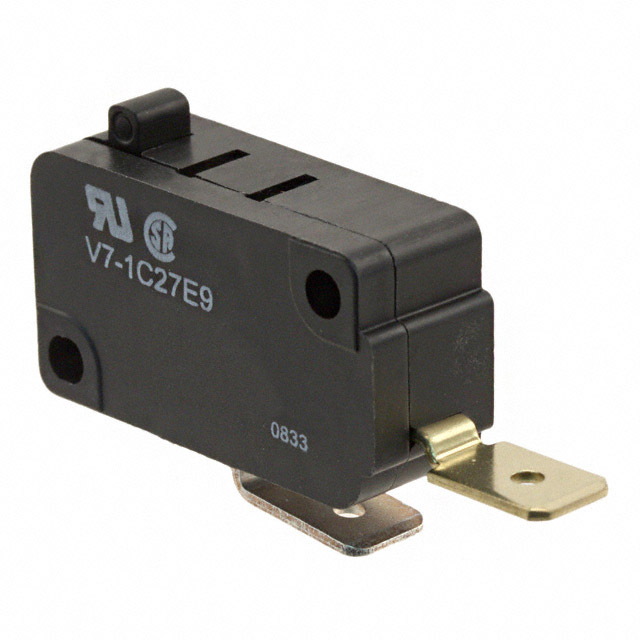

Honeywell Sensing and Productivity Solutions V7-1C27E9	100000 Cycles	1.2 mm	0.047 in	14.7 mm	0.579 in	15 A 500 mA	Quick Connect - 0.250" (6.3mm)	150 gf	Off-Mom	125 VDC	125 V	0.01 in	0.25 mm	25 gf	10000000 Cycles	Round (Pin Plunger)	Chassis Mount	1.27 mm	0.05 "	SPST-NO	85 °C	-40 C

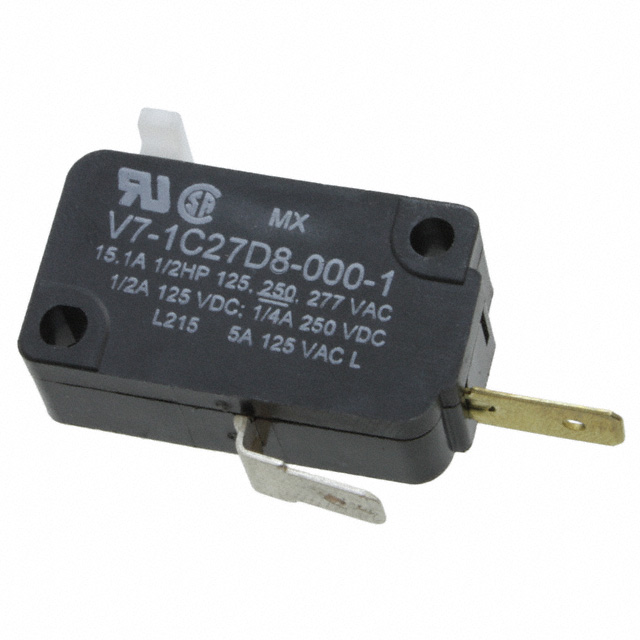

Honeywell Sensing and Productivity Solutions V7-1C27D8-000-1	100000 Cycles	1.2 mm	0.047 in	16 mm	0.63 in	15 A 500 mA	Quick Connect	150 gf	Off-Mom	125 VDC	125 V	0.01 in	0.25 mm	25 gf	10000000 Cycles	Round (Pin Plunger)	Chassis Mount	0.76 mm	0.03 "	SPST-NO	85 °C	-40 C
Honeywell Sensing and Productivity Solutions V7-1C27E9-263	100000 Cycles	2.7 mm	0.106 in			15 A 500 mA	Quick Connect - 0.250" (6.3mm)	91 gf	Off-Mom	125 VDC	125 V			9 gf	10000000 Cycles	Lever Simulated Roller	Chassis Mount	1.5 mm	0.06 "	SPST-NO	85 °C	-40 C	0.6 mm		18.5 mm	0.73 in	0.025 in
