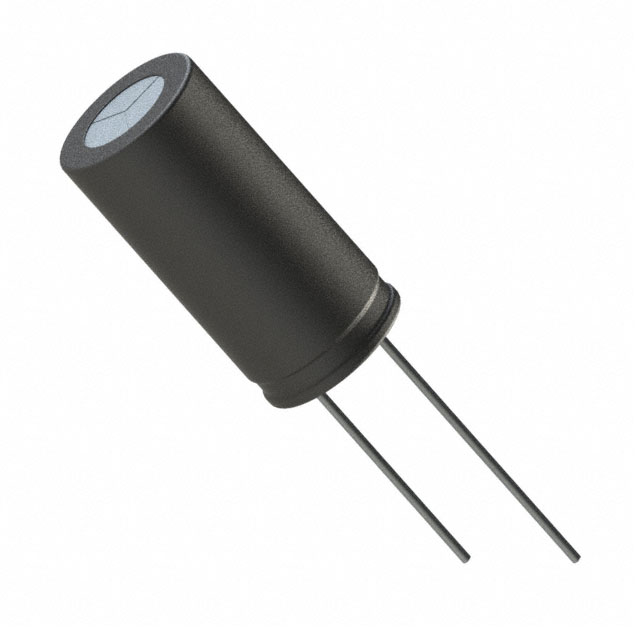

ESH106M Series

Manufacturer: KEMET

Catalog

ELECTROLYTIC CAPACITOR, 10 ΜF, 450 V, ± 20%, RADIAL LEADED, 2000 HOURS @ 105°C, POLAR

Part	Voltage - Rated	Ripple Current @ High Frequency	Applications	Tolerance	Mounting Type	Lead Spacing	Lead Spacing	Package / Case	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Ripple Current @ Low Frequency	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]
KEMET ESH106M450AH4AA	450 V	136 mA	General Purpose	20 %	Through Hole	0.197 "	5 mm	Can Radial	Polar	0.394 in	10 mm	10 µF	0.866 in	22 mm	85 mA	2000 Hrs	105 ░C	-25 °C
KEMET ESH106M035AC3AA	35 V	88 mA	General Purpose	20 %	Through Hole	0.079 in	2 mm	Can Radial	Polar	0.197 in	5 mm	10 µF			44 mA	2000 Hrs	105 ░C	-40 C	0.492 in	12.5 mm
KEMET ESH106M063AC3AA	63 V	110 mA	General Purpose	20 %	Through Hole	0.079 in	2 mm	Can Radial	Polar	0.197 in	5 mm	10 µF				2000 Hrs	105 ░C	-40 C	0.492 in	12.5 mm
KEMET ESH106M100AE3AA	100 V	130 mA	General Purpose	20 %	Through Hole	0.098 in	2.5 mm	Can Radial	Polar	0.248 "	6.3 mm	10 µF			65 mA	2000 Hrs	105 ░C	-40 C	0.492 in	12.5 mm
KEMET ESH106M400AH2AA	400 V	128 mA	General Purpose	20 %	Through Hole	0.197 "	5 mm	Can Radial	Polar	0.394 in	10 mm	10 µF			80 mA	2000 Hrs	105 ░C	-25 °C	17 mm		0.669 "
KEMET ESH106M200AH9AA	200 VDC	128 mA	General Purpose	20 %	Through Hole	0.197 "	5 mm	Can Radial	Polar	0.394 in	10 mm	10 µF			80 mA	2000 Hrs	105 ░C	-25 °C	14 mm			0.551 in
KEMET ESH106M350AH2AA	350 V	128 mA	General Purpose	20 %	Through Hole	0.197 "	5 mm	Can Radial	Polar	0.394 in	10 mm	10 µF			80 mA	2000 Hrs	105 ░C	-25 °C	17 mm		0.669 "
