1744037 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

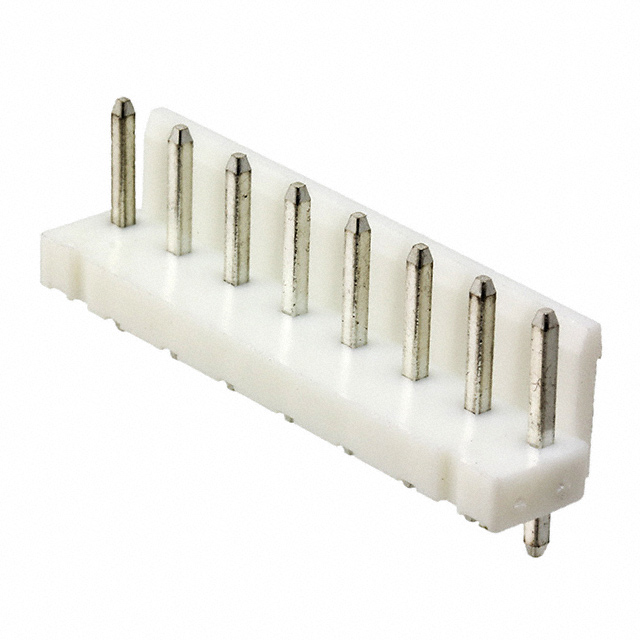

(1744037-8) 08P EC PWR.200 CL HDR ASSY VRT
| Part | Mounting Type | Material Flammability Rating | Connector Type | Termination | Voltage Rating | Number of Positions Loaded | Insulation Height | Insulation Height | Insulation Color | Contact Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Pitch - Mating | Pitch - Mating | Contact Length - Mating | Contact Length - Mating | Number of Rows | Contact Shape | Number of Positions | Applications | Shrouding | Overall Contact Length | Overall Contact Length | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Post | Contact Length - Post | Contact Finish - Post | Style | Contact Material | Fastening Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Material | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Through Hole | UL94 V-0 | Header | Solder | 250 VAC | All | 3.2 mm | 0.126 in | Natural | Male Pin | 120 µin | 3.05 Ám | 5.08 mm | 0.2 in | 7.7 mm | 0.303 in | 1 | Square | 8 | General Purpose Industrial Lighting | Shrouded - 1 Wall | 0.575 in | 14.6 mm | -25 °C | 105 ░C | 0.146 in | 3.7 mm | Tin | Board to Cable/Wire | Copper Alloy | Locking Ramp | 120 Áin | 3.05 Ám | Polyamide (PA66) Nylon 6/6 | 7.5 A |

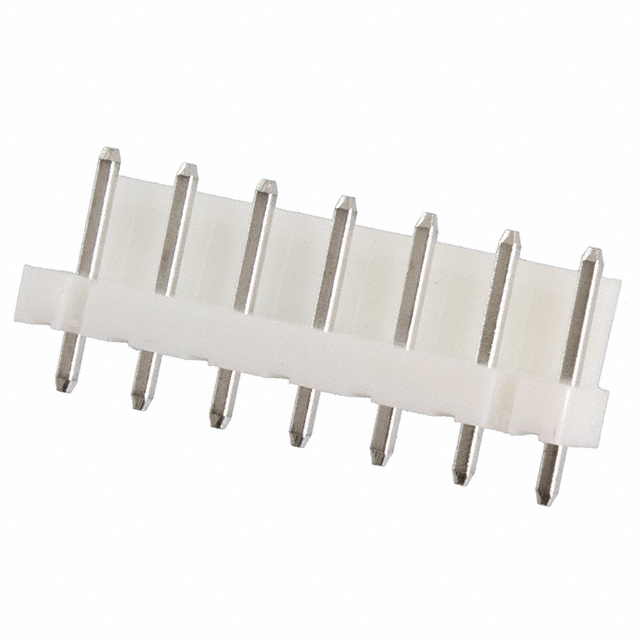

 TE Connectivity Raychem Cable Protection | Through Hole | UL94 V-0 | Header | Solder | 250 VAC | All | 3.2 mm | 0.126 in | Natural | Male Pin | 120 µin | 3.05 Ám | 5.08 mm | 0.2 in | 7.7 mm | 0.303 in | 1 | Square | 7 | General Purpose Industrial Lighting | Shrouded - 1 Wall | 0.575 in | 14.6 mm | -25 °C | 105 ░C | 0.146 in | 3.7 mm | Tin | Board to Cable/Wire | Copper Alloy | Locking Ramp | 120 Áin | 3.05 Ám | Polyamide (PA66) Nylon 6/6 | 7.5 A |

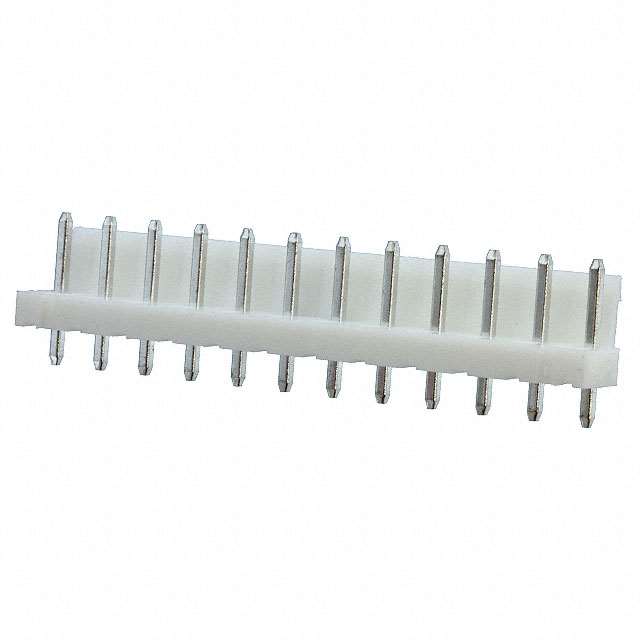

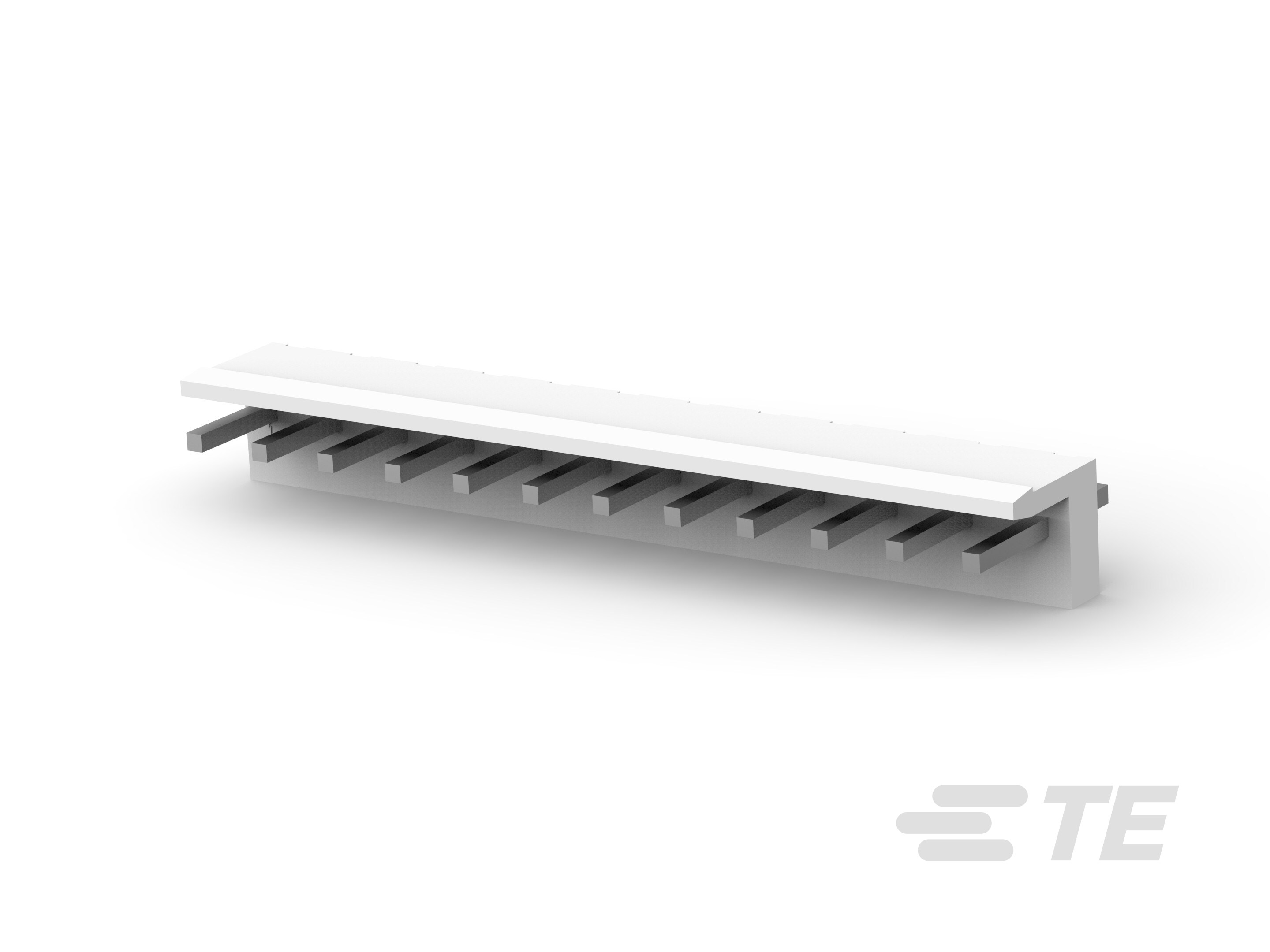

 TE Connectivity Raychem Cable Protection | Through Hole | UL94 V-0 | Header | Solder | 250 VAC | All | 3.2 mm | 0.126 in | Natural | Male Pin | 120 µin | 3.05 Ám | 5.08 mm | 0.2 in | 7.7 mm | 0.303 in | 1 | Square | 12 | General Purpose Industrial Lighting | Shrouded - 1 Wall | 0.575 in | 14.6 mm | -25 °C | 105 ░C | 0.146 in | 3.7 mm | Tin | Board to Cable/Wire | Copper Alloy | Locking Ramp | 120 Áin | 3.05 Ám | Polyamide (PA66) Nylon 6/6 | 7.5 A |
 TE Connectivity Raychem Cable Protection | Through Hole | UL94 V-0 | Header | Solder | 250 VAC | All | 3.2 mm | 0.126 in | Natural | Male Pin | 3 µin | 0.076 µm | 5.08 mm | 0.2 in | 7.7 mm | 0.303 in | 1 | Square | General Purpose Industrial Lighting | Shrouded - 1 Wall | 0.575 in | 14.6 mm | -25 °C | 105 ░C | 0.146 in | 3.7 mm | Tin | Board to Cable/Wire | Copper Alloy | Locking Ramp | 3 µin | 0.076 µm | Polyamide (PA66) Nylon 6/6 | 7.5 A | |
 TE Connectivity Raychem Cable Protection | Through Hole | UL94 V-0 | Header | Solder | 250 VAC | All | 3.2 mm | 0.126 in | Natural | Male Pin | 120 µin | 3.05 Ám | 5.08 mm | 0.2 in | 7.7 mm | 0.303 in | 1 | Square | General Purpose Industrial Lighting | Shrouded - 1 Wall | 0.575 in | 14.6 mm | -25 °C | 105 ░C | 0.146 in | 3.7 mm | Tin | Board to Cable/Wire | Copper Alloy | Locking Ramp | 120 Áin | 3.05 Ám | Polyamide (PA66) Nylon 6/6 | 7.5 A |
