G821EU2 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

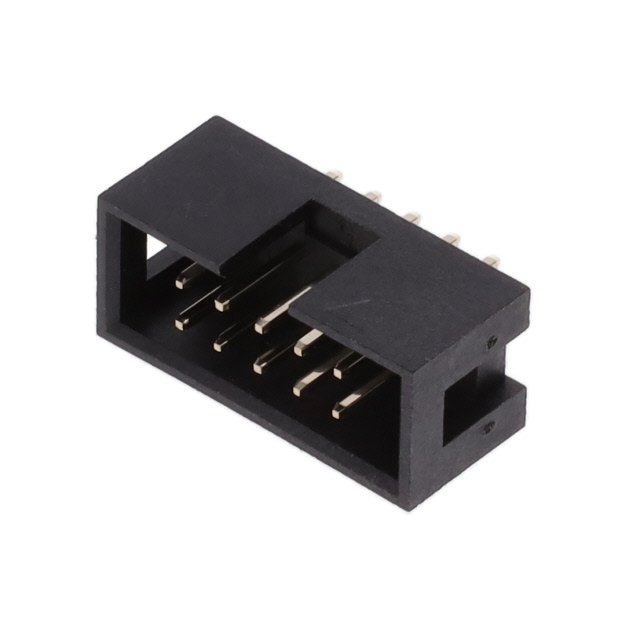

BOX HEADER 2.54MM*2.54MM PITCH S
| Part | Contact Finish Thickness - Post | Shrouding | Insulation Material | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Contact Length - Post [x] | Contact Length - Post [x] | Contact Type | Pitch - Mating | Pitch - Mating | Contact Material | Features | Connector Type | Number of Positions | Contact Shape | Insulation Color | Contact Finish - Post | Number of Rows [custom] | Mounting Type | Insulation Height | Insulation Height | Termination | Contact Finish Thickness - Mating | Fastening Type | Contact Finish - Mating | Current Rating (Amps) | Style | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Flash | Shrouded - 4 Wall | Nylon 6T Polyamide (PA6T) | 0.1 in | 2.54 mm | 85 °C | -25 °C | UL94 V-0 | 0.126 " | 3.2 mm | Male Pin | 0.1 " | 2.54 mm | Brass | Keying Slot | Header | 10 | Square | Black | Gold | 2 | Through Hole | 0.358 " | 9.1 mm | Solder | Flash | Push-Pull | Gold | 3 A | Board to Cable/Wire | All |
