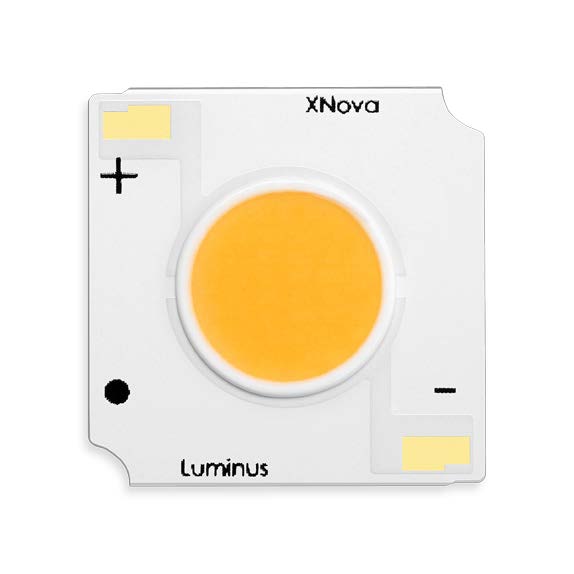

CHM-9-50 Series

Catalog

LED COB CHM9 CL WH SQUARE 5000K

Part	Temperature - Test	Light Emitting Surface (LES) [diameter]	Color	Configuration	Viewing Angle	Lens Type	CCT (K)	CCT (K)	Size / Dimension [y]	Size / Dimension [x]	CRI (Color Rendering Index)	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Height [z]	Current - Test	Type	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test
Luminus Devices Inc. CHM-9-50-80-36-XH00-F1-5	85 °C	9 mm	Cool White	Square	120 °	Flat	5-Step MacAdam Ellipse	5000 K	19 mm	19 mm	80	36 V	1.05 A	1.37 mm	720 mA	Chip On Board (COB)
Luminus Devices Inc. CHM-9-50-80-36-XH00-F2-5	85 °C	9 mm	Cool White	Square	120 °	Flat	5-Step MacAdam Ellipse	5000 K	19 mm	19 mm	80	36 V	1.05 A	1.37 mm	720 mA	Chip On Board (COB)	2690 lm	104 lm/W
Luminus Devices Inc. CHM-9-50-80-36-XD20-F4-5	85 °C	9.6 mm	Cool White	Square	120 °	Flat	5-Step MacAdam Ellipse	5000 K	15 mm	15 mm	80	34 V	990 mA	1.37 mm	360 mA	Chip On Board (COB)	1775 lm	145 lm/W
Luminus Devices Inc. CHM-9-50-80-36-XH20-F3-5	85 °C	9 mm	Cool White	Square	120 °	Flat	5-Step MacAdam Ellipse	5000 K	19 mm	19 mm	80	35.5 V	1.08 A	1.37 mm	720 mA	Chip On Board (COB)	3510 lm	137 lm/W
Luminus Devices Inc. CHM-9-50-90-36-XD20-F4-3	85 °C	9.6 mm	Cool White	Square	120 °	Flat	3-Step MacAdam Ellipse	5000 K	15 mm	15 mm	90	34 V	990 mA	1.37 mm	360 mA	Chip On Board (COB)	1535 lm	126 lm/W
Luminus Devices Inc. CHM-9-50-90-36-AA10-F3-3	85 °C	9 mm	Cool White	Square	120 °	Flat	3-Step MacAdam Ellipse	5000 K	15 mm	15 mm	90	35.5 V	720 mA	1.37 mm	360 mA	Chip On Board (COB)	1500 lm	117 lm/W
Luminus Devices Inc. CHM-9-50-90-36-AA00-F2-5	85 °C	9 mm	Cool White	Square	120 °	Flat	5-Step MacAdam Ellipse	5000 K	15 mm	15 mm	90	35 V	545 mA	1.37 mm	360 mA	Chip On Board (COB)	1285 lm	102 lm/W
Luminus Devices Inc. CHM-9-50-80-36-AC00-F2-3	85 °C	9 mm	Cool White	Square	120 °	Flat	3-Step MacAdam Ellipse	5000 K	13.5 mm	13.5 mm	80	35 V	720 mA	1.37 mm	360 mA	Chip On Board (COB)	1500 lm	119 lm/W
Luminus Devices Inc. CHM-9-50-80-36-AC00-F2-5	85 °C	9 mm	Cool White	Square	120 °	Flat	5-Step MacAdam Ellipse	5000 K	13.5 mm	13.5 mm	80	35 V	720 mA	1.37 mm	360 mA	Chip On Board (COB)	1500 lm	119 lm/W
Luminus Devices Inc. CHM-9-50-70-36-XH20-F3-5	85 °C	9 mm	Cool White	Square	120 °	Flat	5-Step MacAdam Ellipse	5000 K	19 mm	19 mm	70	35.5 V	1.08 A	1.37 mm	720 mA	Chip On Board (COB)	3800 lm	148 lm/W
