PFRA.400 Series

Catalog

PTC RESET FUSE 30V 4A RADIAL

Part	Approval Agency	Current - Trip (It)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Package / Case	Resistance - Initial (Ri) (Min) [Min]	Resistance - Post Trip (R1) (Max) [Max]	Lead Spacing	Lead Spacing	Voltage - Max [Max]	Current - Max [Max]	Current - Hold (Ih) (Max) [Max]

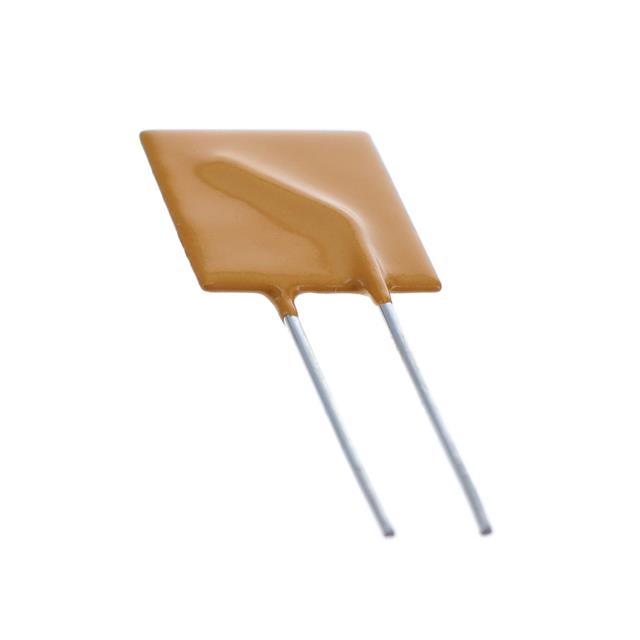

SCHURTER Inc. PFRA.400.2	cURus TUV	8 A	14.4 mm	3 mm	0.118 in	0.567 in	Polymeric	24.8 mm	0.976 in	85 °C	-40 C	Through Hole	Disc Radial	10 mOhms	50 mOhms	0.201 in	5.1 mm	30 V	40 A	4 A
