GMSTB Series

Catalog

PLUGGABLE TERMINAL BLOCKS 7 POS 7.62MM PITCH THROUGH HOLE HEADER

Part	Insulation Height	Insulation Height	Contact Tail Length	Contact Tail Length	Material Flammability Rating	Housing Material	Contact Mating Finish	Termination Style	Positions Per Level [custom]	Pitch	Pitch	Voltage - UL	Voltage - IEC	Header Orientation	Current - IEC	Number of Levels	Color	Mounting Type	Number of Positions	Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Features	Plug Wire Entry	Positions Per Level	Insulation Height [custom]	Insulation Height [custom]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Torque - Screw [Max]	Screw Size	Wire Strip Length	Current - UL	Wire Gauge or Range - mm²	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Insulation Height [z]	Insulation Height [z]

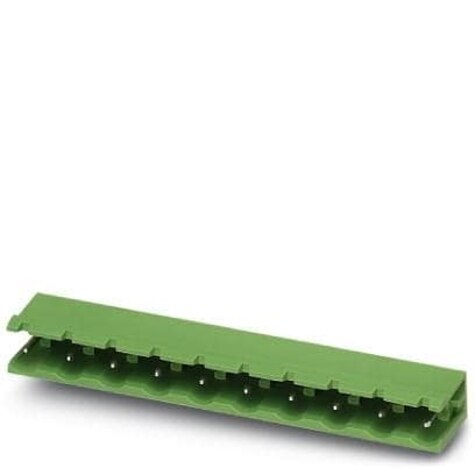

Phoenix Contact 1766178	8.61 mm	0.339 "	0.138 in	3.5 mm	UL94 V-0	Polyamide (PA) Nylon	Tin	Solder	7	0.3 in	7.62 mm	300 V	630 V	90° Right Angle	12 A	1	Green	Through Hole	7	Header Male Pins Shrouded (2 Side)
Phoenix Contact 1795815							Tin	Screw - Rising Cage Clamp		0.3 in	7.62 mm		1 kV		12 A	1	Green	Free Hanging (In-Line)	6	Plug Female Sockets	12 AWG	24 AWG	2.5 mm²	0.2 mm²	Explosion Proof Mating Flange	180 °	6
Phoenix Contact 1805987					UL94 V-0	Polyamide (PA) Nylon	Tin	Screw - Pressure Clip		0.3 in	7.62 mm	300 V	1 kV		12 A	1	Green	Free Hanging (In-Line)	2	Plug Female Sockets	12 AWG	30 AWG	2.5 mm²	0.2 mm²	Mating Flange Retention Latches (Non-Wire Side)	180 °	2	0.591 in	15 mm	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	M3	10 mm

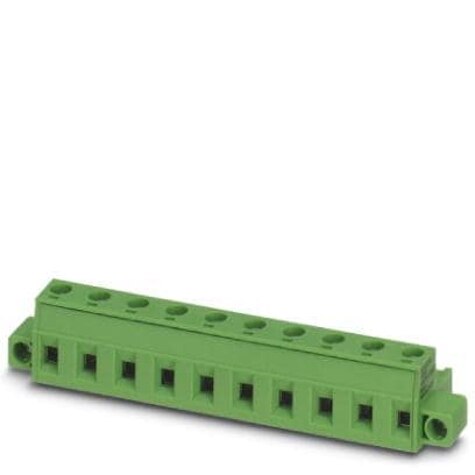

Phoenix Contact 1913400							Tin	Screw		0.3 in	7.62 mm	250 V				1	Green			Plug	12 AWG	30 AWG					3									16 A	2.5 mm²

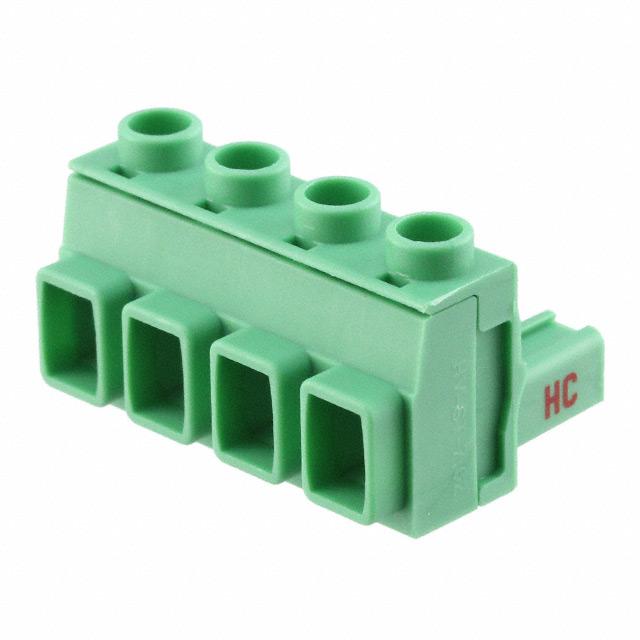

Phoenix Contact 1714294					UL94 V-0	Polyamide (PA) Nylon	Tin	Screw - Rising Cage Clamp		0.3 in	7.62 mm		1 kV		16 A	1	Green	Free Hanging (In-Line)	4	Plug Female Sockets	12 AWG	30 AWG	2.5 mm²	0.2 mm²		180 °	4			0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	M3	8 mm	18.5 A		2.5 mm˛	0.2 mm˛	0.689 in	17.5 mm
Phoenix Contact 1965953							Tin	Solder		0.295 in	7.5 mm		400 V	90° Right Angle	12 A	1		Through Hole		Header Male Pins Shrouded (2 Side)							3
Phoenix Contact 1727061					UL94 V-0	Polyamide (PA) Nylon	Tin	Screw - Rising Cage Clamp		0.3 in	7.62 mm		1 kV		12 A	1	Black	Free Hanging (In-Line)	2	Plug Female Sockets	12 AWG	30 AWG	2.5 mm²	0.2 mm²		180 °	2	0.591 in	15 mm	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	M3	7 mm

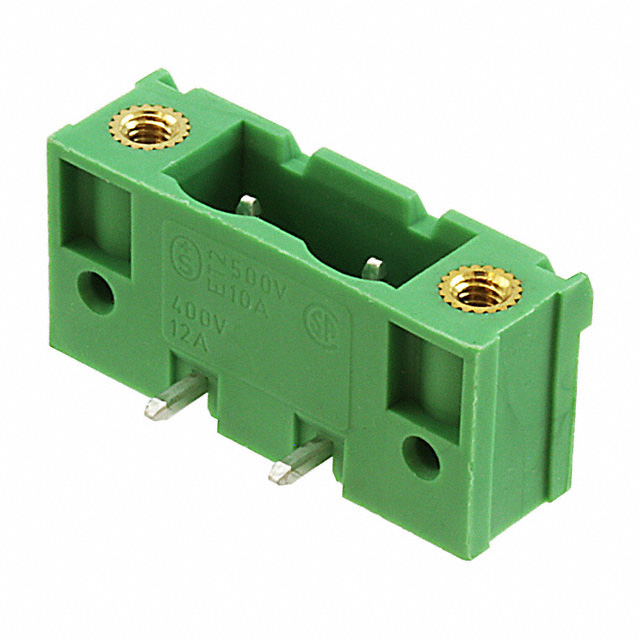

Phoenix Contact 1806229	8.61 mm	0.339 "	0.138 in	3.5 mm	UL94 V-0	Polyamide (PA) Nylon	Tin	Solder		0.3 in	7.62 mm	300 V	630 V	90° Right Angle	12 A	1	Green	Through Hole	2	Header Male Pins Shrouded (4 Side)					Mating and Mounting Flange		2

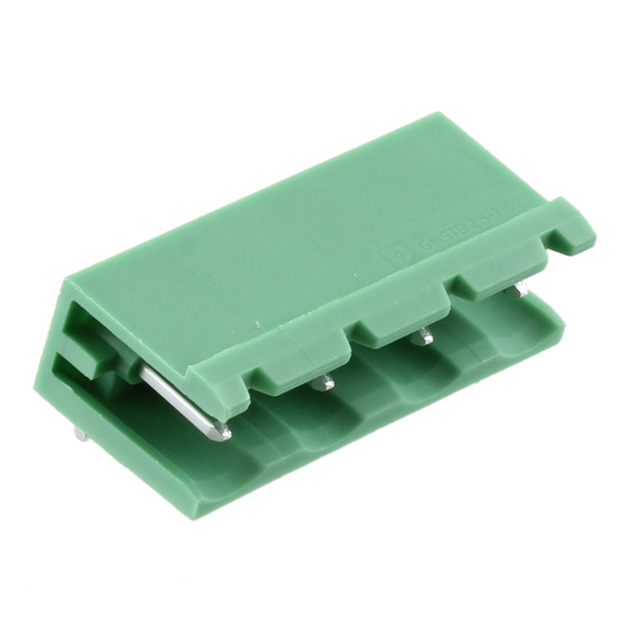

Phoenix Contact 1766149	8.61 mm	0.339 "	0.138 in	3.5 mm	UL94 V-0	Polyamide (PA) Nylon	Tin	Solder		0.3 in	7.62 mm	300 V	630 V	90° Right Angle	12 A	1	Green	Through Hole	4	Header Male Pins Shrouded (2 Side)							4

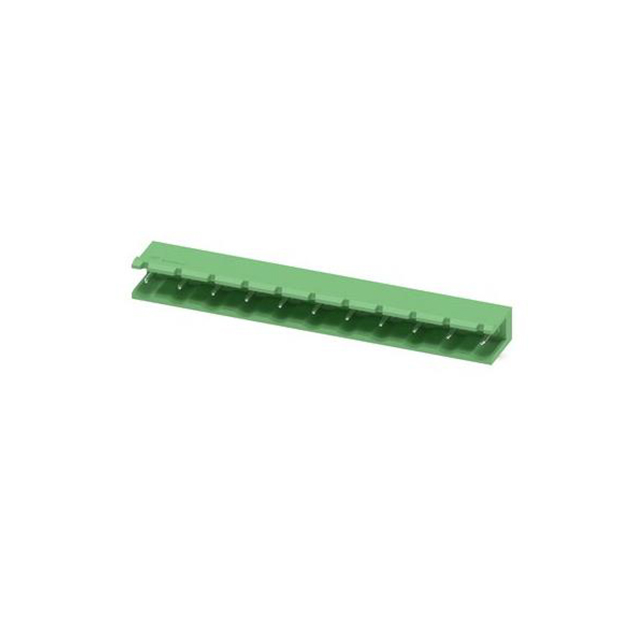

Phoenix Contact 1766107	8.61 mm	0.339 "	0.138 in	3.5 mm	UL94 V-0	Polyamide (PA) Nylon	Tin	Solder		0.295 in	7.5 mm	300 V	630 V	90° Right Angle	12 A	1	Green	Through Hole	11	Header Male Pins Shrouded (2 Side)							11
