51740 Series

Catalog

CONN RCPT BLADE PWR 31POS PCB

...

Part	Contact Layout, Typical	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Color	Connector Style	Number of Positions	Contact Finish	Mounting Type	Number of Positions Loaded	Material Flammability Rating	Termination	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Features	Number of Positions	Contact Layout, Typical
Amphenol ICC (FCI) 51740-10602005ABLF	11 20	-20 C	105 ░C	2.54 mm	0.1 in	Black	Blade Power	31	Gold or Gold GXT™	Through Hole	All	UL94 V-0	Solder	0.76 Ám	30 Áin	Blade Sockets Female Sockets Receptacle
Amphenol ICC (FCI) 51740-10101201AALF		-20 C	105 ░C	2.54 mm	0.1 in	Black	Blade Power	14	Gold or Gold GXT™	Through Hole	All	UL94 V-0	Solder	0.76 Ám	30 Áin	Blade Sockets Female Sockets Receptacle	12	2	Board Lock Guide Pin
Amphenol ICC (FCI) 51740-10401204AALF		-20 C	105 ░C	2.54 mm	0.1 in	Black	Blade Power	20	Gold or Gold GXT™	Through Hole	All	UL94 V-0	Solder	0.76 Ám	30 Áin	Blade Sockets Female Sockets Receptacle	12	8	Board Lock Guide Pin
Amphenol ICC (FCI) 51740-10201202CA		-20 C	105 ░C	2.54 mm	0.1 in	Black	Blade Power		Gold or Gold GXT™	Through Hole	All	UL94 V-0	Press-Fit	0.76 Ám	30 Áin	Blade Sockets Female Sockets Receptacle	12	4	Board Lock Guide Pin	16
Amphenol ICC (FCI) 51740-10204802CALF		-20 C	105 ░C	2.54 mm	0.1 in	Black	Blade Power	52	Gold or Gold GXT™	Through Hole	All	UL94 V-0	Press-Fit	0.76 Ám	30 Áin	Blade Sockets Female Sockets Receptacle			Board Lock Guide Pin
Amphenol ICC (FCI) 51740-10500805AALF		-20 C	105 ░C	2.54 mm	0.1 in	Black	Blade Power	18	Gold or Gold GXT™	Through Hole	All	UL94 V-0	Solder	0.76 Ám	30 Áin	Blade Sockets Female Sockets Receptacle	8	10	Board Lock Guide Pin

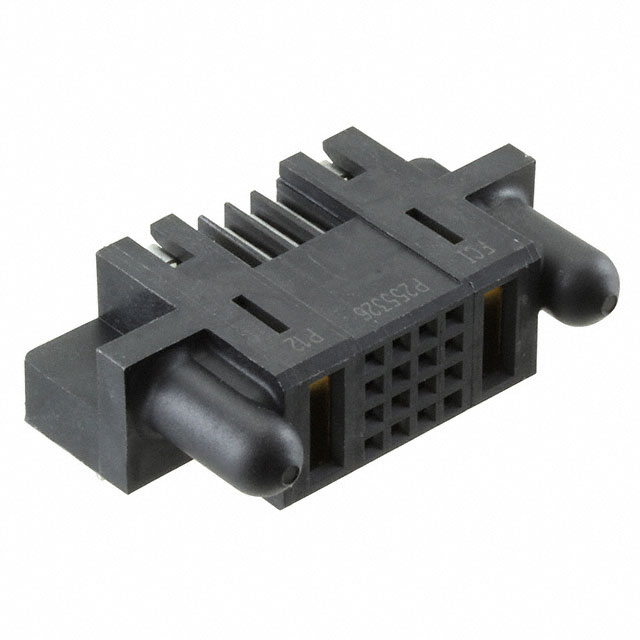

Amphenol ICC (FCI) 51740-10402404CCLF		-20 C	105 ░C	2.54 mm	0.1 in	Black	Blade Power		Gold or Gold GXT™	Through Hole	All	UL94 V-0	Press-Fit	0.76 Ám	30 Áin	Blade Sockets Female Sockets Receptacle	24	8	Guide Pin
Amphenol ICC (FCI) 51740-10401603AA		-20 C	105 ░C	2.54 mm	0.1 in	Black	Blade Power	23	Gold or Gold GXT™	Through Hole	All	UL94 V-0	Solder	0.76 Ám	30 Áin	Blade Sockets Female Sockets Receptacle	16	7	Board Lock Guide Pin
Amphenol ICC (FCI) 51740-10200802AALF		-20 C	105 ░C	2.54 mm	0.1 in	Black	Blade Power	12	Gold or Gold GXT™	Through Hole	All	UL94 V-0	Solder	0.76 Ám	30 Áin	Blade Sockets Female Sockets Receptacle			Board Lock Guide Pin		4 Power 8 Signal
Amphenol ICC (FCI) 51740-10703206AALF		-20 C	105 ░C	2.54 mm	0.1 in	Black	Blade Power	45	Gold or Gold GXT™	Through Hole	All	UL94 V-0	Solder	0.76 Ám	30 Áin	Blade Sockets Female Sockets Receptacle	32	13	Board Lock Guide Pin
